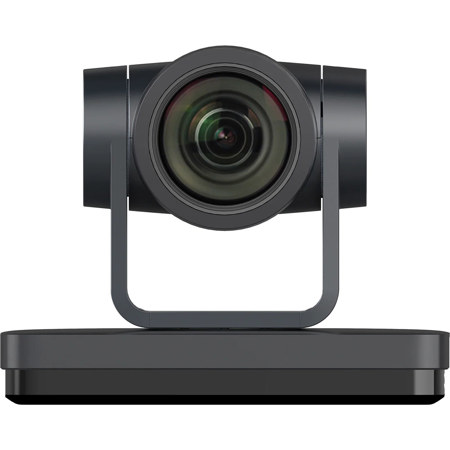

DVDO C4 Full HD 3G-SDI/HDMI/USB/IP 20x PTZ Camera, Black

SKU: DVDOC41B MFR: DVDO-C4-1-B
Earn VIP Reward Points

Key Features

  • Capture crystal-clear video with the DVDO PTZ camera's Full HD 1080p resolution.
  • Experience smooth, detailed close-ups using the impressive 20x optical zoom PTZ camera.
  • Easily connect via HDMI, SDI, USB, or IP for versatile video conferencing setups.
  • Achieve professional broadcasts with the PTZ camera's real-time tracking capabilities.
  • Remotely control pan, tilt, and zoom for dynamic shots using this PTZ camera system.
  • Perfect for large venues, this PTZ camera offers PoE for streamlined installations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DVDO C4 Specifications

Camera
  • Optical Zoom

    20x

  • Focus

    0.20 - 3.86" (5.2 - 98mm)

  • FOV

    3.2 Degree (N) / 56 Degree (W)

  • Aperture Value

    f/1.5 - f/3.0

  • Digital Zoom

    15x

  • Effective Pixels

    2.07, 1/2.8" (2.54cm) high-quality CMOS sensor

  • Video Format

    HDMI/SDI:
    1080p60, 1080p50, 1080p30, 1080p25, 720p60, 720p50, 1080p59.94, 1080p29.97, 720p59.94

    USB3.0 (Main stream):
    YUY2/NV12: 1920x1080 / 1280x720 / 1024x576 / 800x600 / 800x448 / 640x360 / 640x480 / 480x270 / 320x180 @30/25/20/15/10/5fps
    MJPG/H264: 1920x1080 / 600x896 / 1280x720 / 1024x576 / 960x540 / 800x600 / 800x448 / 720x576 / 720x480 / 640x360 / 640x480 / 480x270 / 352x288 / 320x240 @30/25/20/15/10/5fps

  • Video Format (Contd.)

    USB3.0 (Sub stream):
    YUY2/NV12: 1920x1080 / 1280x720 / 1024x576 / 800x600 / 800x448 / 640x360 / 640x480 / 480x270 / 320x180 @30/25/20/15/10/5fps
    MJPG/H264: 1920x1080 / 1600x896 / 1280x720 / 1024x576 / 960x540 / 800x600 / 800x448 / 720x576 / 720x480 / 640x360 / 640x480 / 480x270 / 352x288 / 320x240 @30/25/20/15/10/5fps

  • Minimum Illumination

    0.5Lux (F1.8, AGC ON)

  • DNR

    2D & 3D

  • AWB

    Automatic, manual, one-key white balance, specified color temperature

  • Focus Mode

    Automatic, manual, one-key focus

  • Exposure Mode

    Auto, manual, shutter priority, aperture priority, brightness priority

  • Iris Value

    F1.8 - F11, CLOSE

  • Shutter Speed

    1/25 - 1/10000

  • BLC

    On/Off

  • Dynamic Range

    Off, 1 - 8

  • Image Adjustments

    Brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve

  • SNR

    >=50dB

AI Function

Jump to...
  • Real-Time Tracking

    Maximum Tracking Range: 6-7 meters. Support speakers to walk at a speed of 3-4 meters

  • Regional Tracking

    Maximum Tracking Region: 4. Can set region within horizontal -170 Degree - 170 Degree and vertical -30 Degree - 90 Degree

Interface

Jump to...
  • Product Interface

    HDMI, LAN (POE), USB3.0 (B-Type, compatible with USB2.0), SDI, AIN, RS232-IN, RS232-OUT, RS422 (compatible with RS485), Rotary Switch, DC12V Power

  • Video Encoding Format

    LAN Interface: support main stream and sub-stream H.265, H.264
    USB3.0 Interface: main stream support YUY2, MJPG, H264, NV12

  • Audio input interface

    Dual channel 3.5mm linear input

  • Audio output interface

    HDMI, SDI, LAN, USB3.0

  • Audio compression

    AAC, MP3, G.711A

  • LAN interface

    10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output

  • Network protocol

    RTSP, RTMP, ONVIF, GB/T28181, VISCA over IP, IP VISCA, RTMPS, SRT
    Support remote upgrade, remote restart, remote reset

  • Control Interface

    RS232-IN,RS232-OUT,RS422 compatible with RS485

  • Serial communication protocol

    VISCA/Pelco-D/Pelco-P; support baud rate
    115200/38400/9600/4800/2400

  • USB communication protocol

    UVC (video communication protocol)
    UAC (audio communication protocol)

  • Power interface

    HEC3800 Power socket (DC12V)

  • Power adapter

    Input AC110V - AC220V
    Output DC12V / 2.5A

  • Input voltage

    DC 12V +/-10%

  • Input currency

    <1A

  • Consumption

    <12W

  • Pan rotation

    -170 Degree - +170 Degree

  • Tilt rotation

    -30 Degree - +90 Degree

  • Pan speed

    0.1 Degree/s - 100 Degree/s

  • Tilt speed

    0.1 Degree/s - 45 Degree/s

  • Preset speed

    Pan: 100 Degree/s, Tilt: 45 Degree/s

  • Preset quantity

    Maximum 255 preset positions can be set (10 via remote controls)

General

Jump to...
  • Color

    Black

  • Storage Temperature

    14 - 158 Degree F (-10 - 70 Degree C)

  • Storage Humidity

    20% - 95%

  • Working Temperature

    14 - 122 Degree F (-10 - 50 Degree C)

  • Working Humidity

    20% - 80%

  • Environment

    Indoor

  • Dimension

    7.13 x 4.53 x 5.87" (181 x 115 x 149mm)

  • Weight

    2.54 lbs (1.15kg)

  • UPC Code

    880802002330

About DVDO C4

DVDO-C4-1-B is a high performance Full HD PTZ camera with a 20X optical zoom and a horizontal FOV of 56 Degree . It features advanced AI human auto-tracking that detects the presenter's position and provides both presenter and zone tracking options.

It uses a low noise 1/2.8" CMOS sensor, offering vivid and clear video with a strong sense of depth and fantastic color rendition. It provides advanced connectivity with simultaneous HDMI, 3G-SDI, USB 3.0 & LAN outputs as well as PoE support.

Applications
• Education
• Lecture Capture
• Houses of Worship
• Healthcare
• Tele-medicine
• Courtrooms
• Broadcasting
• Webcasting
• Live events
• Video Conferencing
• Command & Control Centers

Features

Full HD Resolution
1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60 fps.

Multiple Optical Zoom Lens
20X optical zoom lens.

Leading Auto Focus Technology
Fast, accurate and stable auto focusing technology.

Low Noise and High SNR
Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.

Multiple video output interfaces
HDMI, SDI, USB 3.0, LAN.

Simultaneously output
Audio and video signal via HDMI, SDI and LAN. LAN interface supports PoE, USB 3.0 support dual code stream, SDI support transmission up to 100m under 1080p60 format.

Multiple Audio/Video Compression Standards
Support H.264/H.265 video compression, up to 1920x1080 resolution 60 fps; support AAC, MP3 and G.711A audio compression, 8000, 16000, 32000, 44100,48000 sampling frequency.

USB 3.0 Support Dual Coding Stream
Support main stream and sub-stream, and simultaneous output; support YUY2, MJPEG, H.264, NV12, H.265 video coding format.

Built-in Gravity Sensor
Support PTZ auto-flip function and easy installation.

Multiple Network Protocol
Support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA & RTMPS protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode.

Control Interface
RS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232 interface supports cascading.

Multiple Control Protocol
Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.

Quiet Pan / Tilt Movement
With high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth.

Various remote controls
Users can choose infrared remote control or wireless remote control according to the environmental conditions used. The 2.4G wireless remote control is not affected by angle, distance, and infrared interference. Support the remote control signal transparent transmission function, which is convenient for back-end equipment to use.

AI Human Detection
Built-in high-speed processor and advanced image processing and analysis algorithms, users can choose real-time tracking and regional tracking according to the environment.

Multiple Application
Online Education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.

DVDO C4 Features

  • Full HD Resolution
  • Multiple Optical Zoom Lens: 20X optical zoom lens
  • Leading Auto Focus Technology
  • Low Noise and High SNR
  • Multiple video output interfaces
  • Multiple Audio/Video Compression Standards
  • USB 3.0 Support Dual Coding Stream
  • Built-in Gravity Sensor: support PTZ auto-flip function and easy installation
  • Multiple Network Protocol
  • Control Interface: RS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232 interface supports cascading
  • Multiple Control Protocol: support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols
  • Quiet Pan / Tilt Movement: with high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth
  • Various remote controls: users can choose infrared remote control/wireless remote control according to the environmental conditions used. The 2.4G wireless remote control is not affected by angle, distance & infrared interference. Support the remote control signal transparent transmission function, which is convenient for back-end equipment to use
  • AI Human Detection

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture crystal-clear video with the DVDO PTZ camera's Full HD 1080p resolution.
  • Experience smooth, detailed close-ups using the impressive 20x optical zoom PTZ camera.
  • Easily connect via HDMI, SDI, USB, or IP for versatile video conferencing setups.
  • Achieve professional broadcasts with the PTZ camera's real-time tracking capabilities.
  • Remotely control pan, tilt, and zoom for dynamic shots using this PTZ camera system.
  • Perfect for large venues, this PTZ camera offers PoE for streamlined installations.

What's in the box:

  • DVDO C4 Full HD 3G-SDI/HDMI/USB/IP 20x PTZ Camera (Black)
  • Power Supply
  • RS-232 Control Cable
  • USB 3.0 Cable
  • IR Remote Control
  • DVDO 1 Year Limited Warranty
