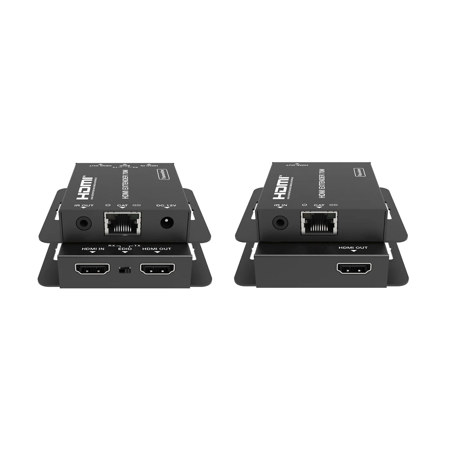

DVDO 4K30 HDMI Extender over Ethernet, 131' Range
See all DVDO items

DVDO 4K30 HDMI Extender over Ethernet, 131' Range

SKU: DVDOCAT4K40 MFR: DVDO-CAT4K-40
Be the first to review this itemAsk a Question
$119.00
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 131 feet with this reliable HDMI extender over Ethernet.
  • Enjoy stunning 4K@30Hz video resolution with this high-performance HDMI KVM extender kit.
  • Supports up to 7.1CH HD audio, ensuring a premium audio experience with your HDMI devices.
  • This HDMI adapter includes both transmitter and receiver units for a complete setup.
  • Compact metal enclosure ensures durability and efficient heat dissipation for long-term use.
  • Control your devices remotely with included IR blaster and receiver cables for added convenience.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

DVDO 4K30 HDMI Extender Specifications

Technical

Technical

Jump to...

  • HDMI Compliance

    HDMI 1.4

  • HDCP Compliance

    HDCP 1.4

  • Video Bandwidth

    10.2Gbps

  • Video Resolution

    Up to 4K@30Hz

  • Audio Support

    Up to 7.1CH HD audio

  • Input TMDS Signal

    3.3 volts

  • Input DDC Signal

    5.0 volts/P-P

  • ESD Protection

    Human Body Model: +/- 8 kV (air-gap discharge), +/- 4 kV (contact discharge)

Connection

Jump to...

  • Transmitter

    Input:
    1x HDMI Type A (19-pin female)

    Outputs:
    1x HDMI Type A (19-pin female)
    1x IR OUT (3.5mm Stereo Mini-jack)
    1x CAT OUT (RJ45, 8-pin female)

  • Receiver

    Inputs:
    1x IR IN (3.5mm Stereo Mini-jack)
    1x CAT IN (RJ45, 8-pin female)

    Output:
    1x HDMI Type A (19-pin female)

Mechanical

Jump to...

  • Color

    Black

  • Housing

    Metal Enclosure

  • Power Supply

    12V/1A DC

  • Power Consumption

    Transmitter: 1.86W
    Receiver: 0.87W

  • Operation Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no condensation)

  • Dimensions (W x D x H)

    3.13 x 2.72 x 0.65" (79.5 x 69 x 16.5mm)

  • Weight

    Transmitter: 4.65 oz (132g)
    Receiver: 4.59 oz (130g)

Other

Jump to...

  • UPC Code

    880802000374

About DVDO 4K30 HDMI Extender

DVDO-CAT4K-40 is an extender that can transmit uncompressed high definition HDMI signals up to 230ft/70m for 1080p resolution or 131ft/40m for 4K30 resolution via a single CAT6 cable. The transmitter includes an HDMI loop output that can connect to a local display or to another HDMI extender. It supports EDID copy function (you can choose either local or remote EDID) as well as audio formats up to PCM7.1, Dolby True HD and DTS HD.

Applications
• Conference Rooms
• Education
• Hospitality
• Restaurants
• Digital Signage
• Retail
• Houses of Worship
• Residential

DVDO 4K30 HDMI Extender Features

  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Supports video resolutions up to 4K2K@30Hz YUV 4:4:4
  • Maximum transmission distance: CAT6: 230'/70m for 1080p, 131'/40m for 4K30 CAT5e: 197'/60m for 1080p, 115'/35m for 4K30
  • Can copy EDID from the display connected either to the receiver or to the transmitter's loop out
  • Allows cascading to other HDMI extenders through the HDMI loop out
  • One-way PoC (from transmitter to receiver)
  • One-way IR signal transmission
  • Compact design for easy and flexible installation

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your HDMI signal up to 131 feet with this reliable HDMI extender over Ethernet.
  • Enjoy stunning 4K@30Hz video resolution with this high-performance HDMI KVM extender kit.
  • Supports up to 7.1CH HD audio, ensuring a premium audio experience with your HDMI devices.
  • This HDMI adapter includes both transmitter and receiver units for a complete setup.
  • Compact metal enclosure ensures durability and efficient heat dissipation for long-term use.
  • Control your devices remotely with included IR blaster and receiver cables for added convenience.

What's in the box:

  • HDMI Transmitter
  • HDMI Receiver
  • 1.5m IR Blaster Cable
  • 1.5m IR Receiver Cable
  • 12V/1A DC Power Adapter
  • User Manual
  • DVDO 1 Year Limited Warranty
