DVDO 4K Conference System with USB-C & HDMI Inputs and Built-in DSP & Amplifier, Black

SKU: DVDOCS1 MFR: DVDO-CS-1
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this 4K conference system's built-in DSP.
  • Connect effortlessly using USB-C & HDMI inputs for seamless video conferencing.
  • Enjoy reliable performance with a frequency response of 20Hz-20kHz for rich sound.
  • This video conference system ensures compatibility with 4-8 Ohm speakers.
  • Enhance presentations with 2x20W rated power, perfect for clear audio projection.
  • The DVDO conference system delivers high-quality audio with <1% THD for clarity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DVDO Conference System Specifications

Video
  • Video Inputs & Outputs

    Inputs:
    1x USB-C (Type-C USB 3.2)
    1x HDMI 2.0

    Outputs:
    2x HDMI 2.0

  • Video Resolutions

    Inputs: up to 4K60 4:4:4 (USB-C & HDMI)
    Outputs: up to 4K60 4:4:4

  • Frequency Response

    20Hz-20kHz @ +4dBu / MIC: +0/-2dB / Line input: +0/-0.5dB

  • THD + N

    1kHz @ +4dBu / MIC: < 0.009% / Line input: < 0.007%

  • Equivalent Noise

    < -84dBu (20Hz-20kHz@22dB)

  • Dynamic Range

    > 105dB (20Hz-20kHz@0dB)

  • Max Input / Output Level

    Input: MIC: -2dBu
    Line input: 20dBu
    Output (balance): 20dBu

  • Maximum Gain

    MIC: 50dB
    Line input: 0dB

  • Impedance

    Input: MIC: 2.2k Ohm
    Line input: 20k Ohm
    Output: 400 Ohm

  • Sampling Rate

    48kHz

  • A/D-D/A convertor

    24-bit

  • Phantom Power

    DC 48V

Amplifier

Jump to...
  • Resistance output

    4-8 Ohm speaker

  • Rated power

    2x 20W

  • Frequency Response

    20Hz-20kHz (+/-2dB)

  • Input Sensitivity

    50mV

  • THD

    <1%

  • SNR

    >100dB

Control

Jump to...
  • USB

    2x USB 3.0 Type-A ports for devices

  • TCP/IP

    1x 100BaseT on RJ45 port

General

Jump to...
  • Color

    Black

  • Operating Temperature

    Operating: 23 - 131 Degree F (-5 - 55 Degree C)
    Storage: -13 - 158 Degree F (-25 - 70 Degree C)

  • Relative Humidity

    10%-90%

  • Power Supply

    DC 18V / 6A

  • Dimensions (W x D x H)

    8.27 x 6.46 x 1.73" (210 x 164 x 44mm)

  • Weight

    3.53 lbs (1.6kg)

  • UPC Code

    880802001838

About DVDO Conference System

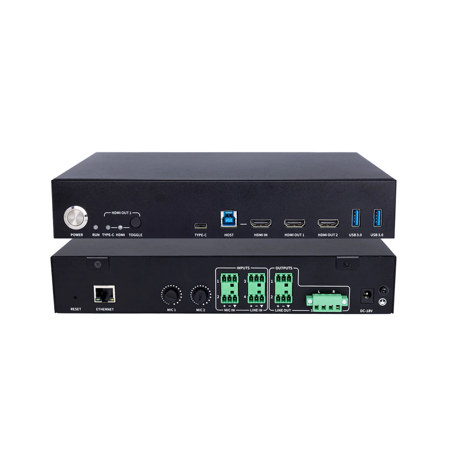

DVDO-CS-1 is an AV conference system with USB-C and HDMI inputs, USB host and device ports and dual HDMI output. It includes a built-in DSP with two microphone inputs, two line-in inputs and two line-in outputs as well as a 2x20W amplifier with speaker output.

It can be controlled over IP with an intuitive web GUI allowing to configure various video and audio settings. The signal processing allows configuration and control for routing, mixing, filtering, ducking, equalization, delay and echo cancellation.

Applications
• Conference Rooms
• Training Rooms
• Boardrooms
• Education
• Lecture Halls
• Classrooms

DVDO Conference System Features

  • Two video inputs: 1x USB-C 3.2 Gen 1 + 1x HDMI with USB-B host port
  • Video inputs and outputs support resolutions up to 4K 60Hz 4:4:4
  • Two USB 3.0 device ports for webcams, video bars, PTZ cameras, KVM
  • Two mirrored HDMI outputs for connection to single or dual display
  • High performance DSP technology for 2x microphone inputs, 2x line level inputs and 2x line level outputs
  • Audio embedding and de-embedding to/from HDMI and USB-C inputs
  • Built-in 2x 20W power amplifier for speaker output
  • TCP/IP control with Web GUI with multiple audio and video controls
  • Configurable DSP settings include routing, mixing, filtering, ducking, equalization, delay, echo cancellation

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience crystal-clear audio with this 4K conference system's built-in DSP.
  • Connect effortlessly using USB-C & HDMI inputs for seamless video conferencing.
  • Enjoy reliable performance with a frequency response of 20Hz-20kHz for rich sound.
  • This video conference system ensures compatibility with 4-8 Ohm speakers.
  • Enhance presentations with 2x20W rated power, perfect for clear audio projection.
  • The DVDO conference system delivers high-quality audio with <1% THD for clarity.

What's in the box:

  • DVDO 4K Conference System with USB-C & HDMI Inputs and Built-in DSP & Amplifier (Black)
  • DVDO 1 Year Limited Warranty
