DVDO 4x4 4K HDMI 18Gbps Matrix Switcher with Audio Outputs, Black
SKU: DVDOMATRIX44 MFR: DVDO-MATRIX-44
Earn VIP Reward PointsKey Features
- Seamlessly switch between four HDMI sources with this 4K HDMI matrix switcher.
- Enjoy wide compatibility with HDR10, Dolby Vision, and HLG for stunning visuals.
- Distribute high-quality video to four displays simultaneously with low latency.
- Extract audio via L/R or coaxial outputs for enhanced sound system integration.
- Control effortlessly via TCP/IP, RS-232, or IR, ensuring easy setup and operation.
- Experience reliable connection with HDCP 2.2 for protected 4K content streaming.
Ships from Manufacturer?
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
1 Year
$34.99
2 Year
$59.99
3 Year
$79.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About DVDO HDMI Matrix Switcher

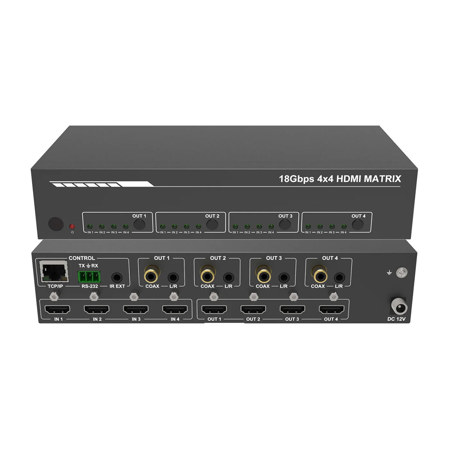

DVDO-Matrix-44 is a compact matrix switcher with four HDMI inputs and four HDMI outputs, allowing to route independently up to four HDMI sources to four separate displays. It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.
Each HDMI output includes two separate de-embedded audio outputs: one coaxial output and one analog L/R output.
It supports ARC, HDR, 4K to 1080p downscaling as well as advanced EDID management. The unit can be controlled via front panel buttons, IR, RS-232 and IP with an intuitive web GUI.
Applications
• Conference Rooms
• Education
• Hospitality
• Restaurants
• Digital Signage
• Retail
• Houses of Worship
• Residential
DVDO HDMI Matrix Switcher Features
- HDMI 2.0, HDCP 2.2 / 1.4 and DVI 1.0 compliant
- Video resolutions up to 4K2K@60Hz (YUV 4:4:4)
- Supports 18Gbps video bandwidth
- Individual 4K -> 1080p scaling for each output
- Audio de-embedding with separate coaxial & analog L/R analog outputs for each HDMI output
- ARC audio return to the coaxial outputs only
- HDMI audio formats include PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio & DSD
- Supports HDR 10 / 10+
- Advanced EDID management
- Control via front panel buttons, IR, RS-232 and IP with intuitive web GUI
- Compact design for easy and flexible installation
Warranty Information
This product has a limited warranty of 12 months.
