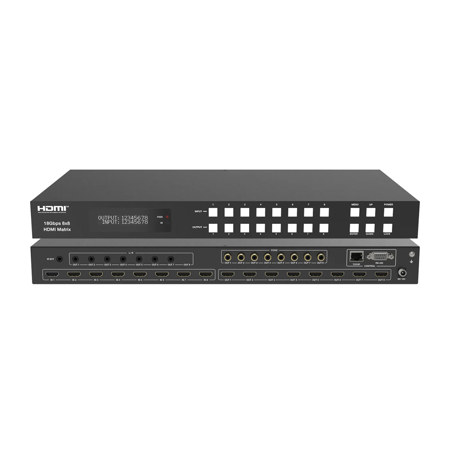

DVDO 8x8 4K HDMI 18Gbps Matrix Switcher, Black

SKU: DVDOMATRIX88 MFR: DVDO-MATRIX-88
Be the first to review this itemAsk a Question
$1,999.00
OR
$167/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamless 4K HDMI matrix switching for up to 8 sources with zero latency.
  • Enjoy wide compatibility with HDR10, Dolby Vision, and HLG formats on all outputs.
  • Control your home theater with TCP/IP, RS-232, or IR remote for easy setup.
  • Distribute high-resolution video (up to 4K@60Hz) to multiple displays reliably.
  • Experience superior audio with Dolby Atmos and DTS:X pass-through for immersive sound.
  • This DVDO HDMI switcher offers good value, combining performance and easy setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

DVDO HDMI Matrix Switcher Specifications

Technical

Technical

Jump to...

  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2 and HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolution

    Up to 4K2K@50/60Hz (4:4:4)

  • Color Space

    RGB, YCbCr 4:4:4/4:2:2/4:2:0

  • Color Depth

    8-bit, 10-bit, 12-bit

  • HDMI Audio Formats (Pass-through)

    LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • Coax Audio Formats

    LPCM 2.0, Dolby Digital / Plus, DTS 5.1

  • L/R Audio Formats

    PCM2.0

  • HDR formats

    HDR10,HDR10+, Dolby Vision, HLG

  • ESD Protection

    Human Body Model: +/- 8kV (Air-gap discharge), +/- 4kV (Contact discharge)

  • Connection

    8x HDMI Type A (19-pin female)
    1x IR EXT (3.5mm Stereo Mini-jack)

Connection

Jump to...

  • Input Ports

    8x HDMI Type A (19-pin female)
    8x Coax Audio (RCA)
    8x L/R Audio (3.5mm Stereo Mini-jack)

  • Output Ports

    1x TCP/IP (RJ45)
    1x RS-232 (D-Sub 9) Control Ports

Mechanical

Jump to...

  • Color

    Black

  • Housing

    Metal Enclosure

  • Power Supply

    Input: AC 100 - 240V 50/60Hz
    Output: DC 12V/5A
    (US/EU standard, CE/FCC/UL certified)

  • Power Consumption

    43W

  • Operating Temperature

    14 - 113 Degree F (-10 - 45 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20-90% RH (non-condensing)

  • Dimensions (W x D x H)

    17.32 x 7.87 x 1.75" (440 x 200 x 44.5mm)

  • Weight

    6.17 lbs (2.8kg)

Other

Jump to...

  • UPC Code

    880802002811

About DVDO HDMI Matrix Switcher

DVDO-Matrix-88 supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8x8 HDMI Matrix supports 4K2K to 1080p downscaler independently. Control is via front panel buttons, IR remote, RS-232, LAN and Web GUI.

DVDO HDMI Matrix Switcher Features

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
  • Support 18Gbps video bandwidth
  • Dolby Vision, HDR10+ and HLG are supported.
  • Support 4K->1080P Down Scaler for each output port
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • Audio de-embedded is supported via analog and coax ports
  • ARC, CEC and smart EDID management are supported
  • 1U rack mounted design with front panel OLED display
  • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamless 4K HDMI matrix switching for up to 8 sources with zero latency.
  • Enjoy wide compatibility with HDR10, Dolby Vision, and HLG formats on all outputs.
  • Control your home theater with TCP/IP, RS-232, or IR remote for easy setup.
  • Distribute high-resolution video (up to 4K@60Hz) to multiple displays reliably.
  • Experience superior audio with Dolby Atmos and DTS:X pass-through for immersive sound.
  • This DVDO HDMI switcher offers good value, combining performance and easy setup.

What's in the box:

  • DVDO 8x8 4K HDMI 18Gbps Matrix Switcher (Black)
  • 12V/5A Power Adapter
  • IR Remote
  • 1.5m IR Receiver Cable
  • 1.5m RS-232 Serial Cable (Male to Female Head)
  • 2x Mounting Ear
  • User Manual
  • DVDO 1 Year Limited Warranty
