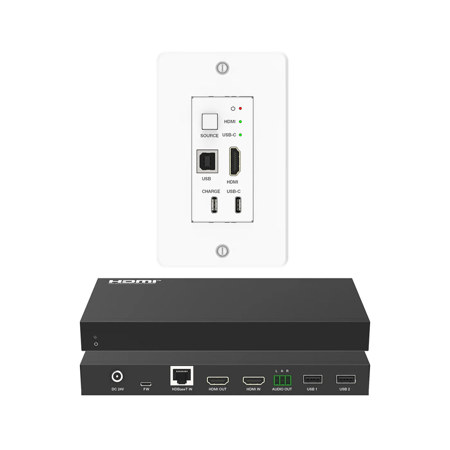

DVDO HDMI/USB-C Wall Extender: Picture 1 thumbnail
DVDO HDMI/USB-C Wall Extender: Picture 2 thumbnail
DVDO HDMI/USB-C Wall Extender: Picture 3 thumbnail
DVDO HDMI/USB-C Wall Extender: Picture 4 thumbnail
DVDO HDMI/USB-C Wall Extender: Picture 5 thumbnail
DVDO HDMI/USB-C Wall Extender: Picture 6 thumbnail
See all DVDO items

DVDO 4K HDMI and USB-C Wall Plate Extender over HDBaseT with USB

SKU: DVDORS2 MFR: DVDO-RS-2
Be the first to review this itemAsk a Question
$849.00
OR
$71/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your display with this 4K HDMI extender, supporting resolutions up to 4096x2160@60Hz.
  • Experience seamless connectivity using the USB-C port, perfect for modern laptops and devices.
  • Achieve reliable performance with HDBaseT technology, transmitting up to 230ft at 1080p.
  • Enjoy high-fidelity audio with Dolby Atmos and DTS:X support through the HDMI connection.
  • Simplify installations using the included HDBaseT wall plate transmitter and receiver kit.
  • This HDMI & USB-C extender offers robust ESD protection, ensuring durability and longevity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

DVDO HDMI/USB-C Wall Extender Specifications

Technical

Technical

Jump to...

  • HDMI Compliance

    HDMI 2.0b, DisplayPort 1.2a

  • HDCP Compliance

    HDCP 2.2

  • Video Bandwidth

    18 Gbps

  • Video Resolution

    4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50 /59.94/60Hz, 576p, 576i, 480p, 480i

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0

  • Color Depth

    8/10/12-bit

  • HDR

    HDR10, HDR10+

  • HDMI Audio Formats

    Dolby Atmos, TrueHD, Digital+, Digital, DTS X, HD Master Audio, HD High Resolution Audio, 5.1,PCM 2-BCh

  • Transmission Distance

    Max distance (1080p): 230' (70m) over CAT6/6a/7Max distance (4K) 131' (40m) over CAT6/6a/7

  • ESD Protection

    Human Body Model: +/-8kV (Air-gap discharge), +/-4kV (Contact discharge)

Connection

Jump to...

  • Transmitter

    Inputs:
    1x HDMI Type A (19-pin female)
    1x USB-C

    Outputs:
    1x HDBaseT Out (RJ45, 8-pin female)
    1x USB-C (only for charging)

    Control:
    1x USB-B (Micro USB, Update port)

  • Receiver

    Inputs:
    1x HDMI IN (Type A, 19-pin female)
    1x HDBaseT IN (RJ45, 8-pin female)

    Outputs:
    1x HDMI OUT (Type A, 19-pin female)
    1x AUDIO OUT (Phoenix jack)

    Control:
    2x USB (USB A TYPE)
    1x FW (Micro USB, Update port)

Mechanical

Jump to...

  • Color

    White/Black

  • Housing

    Metal Enclosure

  • Power Supply

    POE (only from Receiver to Transmitter)

  • Power Consumption

    Wall plate: 9W (Max), Receiver: 11W (Max)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20-90% RH (no condensation)

  • Dimensions (W x D x H)

    Wall plate: 1.31 x 2.59 x 2.70" (33.3 x 65.7 x 68.7mm)
    Faceplate: 2.75 x 0.11 x 4.5" (69.9 x 3 x 114.3mm)
    Receiver: 7.87 x 3.86 x 0.91" (200 x 98 x 23mm)

  • Weight

    Wall plate: 6.91 oz (196g)
    Receiver: 18.03 oz (511g)

Other

Jump to...

  • UPC Code

    880802002934

About DVDO HDMI/USB-C Wall Extender

The wall plate is a 2x1 switcher and HDBaseT transmitter with HDMI and USB-C input. It features a US one-gang enclosure for Decora-style wall plate openings. The USB-C input provides an ideal AV interface for connecting with new Apple notebooks and Windows PCs as well as smartphones and tablets. Supporting video resolution up to 4K@60Hz 4:4:4, the product is remotely powered by the receiver or other HDBaseT-equipped devices via POE.

DVDO HDMI/USB-C Wall Extender Features

  • Video resolutions up to 4K@60Hz 4:4:4
  • Supports HDMI and USB-C input
  • USB2.0 extension with Receiver Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
  • Supports 18Gbps video bandwidth
  • HDBaseT output can extend video transmission distance up to 230' (70m) for 1080P or 131' (40m) for 4K via a single cat5e/6/7 cable
  • Supports HDR10 and HDR10+
  • Audio formats support Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
  • US one-gang housing for Decora-style wall plate openings
  • Input selection supports automatic mode and manual mode
  • Remotely powered via PoE

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your display with this 4K HDMI extender, supporting resolutions up to 4096x2160@60Hz.
  • Experience seamless connectivity using the USB-C port, perfect for modern laptops and devices.
  • Achieve reliable performance with HDBaseT technology, transmitting up to 230ft at 1080p.
  • Enjoy high-fidelity audio with Dolby Atmos and DTS:X support through the HDMI connection.
  • Simplify installations using the included HDBaseT wall plate transmitter and receiver kit.
  • This HDMI & USB-C extender offers robust ESD protection, ensuring durability and longevity.

What's in the box:

  • HDBaseT Wall Plate Transmitter
  • HDBaseT Receiver
  • Power Supply
  • User Manual
  • DVDO 1 Year Limited Warranty
