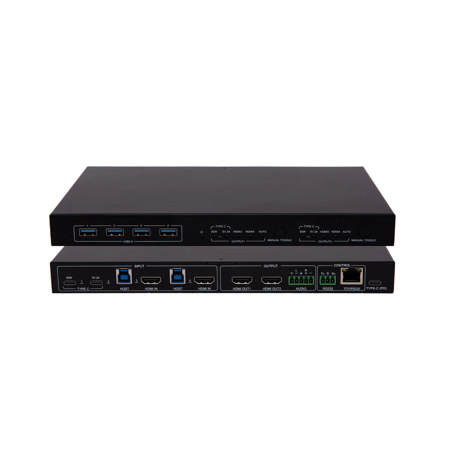

DVDO 4x2 4K Presentation Switcher with USB-C & HDMI Input Modules, Black

SKU: DVDOUSBCHDMI MFR: DVDO-USBC-HDMI-PS-42
Earn VIP Reward Points

Key Features

  • Seamlessly switch between four inputs with this 4K presentation switcher for dynamic meetings.
  • Experience reliable connection with HDMI 2.0 and HDCP 2.2 compliance for pristine video quality.
  • This video switcher supports resolutions up to 4K@60Hz, ensuring high resolution for clear visuals.
  • Enjoy wide compatibility with USB-C and HDMI inputs, perfect for modern devices and setups.
  • Easy setup with included mounting ears and a user manual, making integration a breeze.
  • Get good value with advanced features like 4K downscaling and audio de-embedding capabilities.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DVDO Presentation Switcher Specifications

Video
  • Compliance

    HDMI 2.0 / HDCP 2.2

  • Video Inputs

    2x HDMI Type A (19-pin female)
    2x USB-C Type-C USB 3.2

  • Video Input Resolutions

    HDMI: up to 4K@60Hz 4:4:4 8bit
    USB-C: up to 4K@30Hz, DP 1.2 MST function

  • Video Outputs

    2x HDMI Type A (19-pin female)

  • Video Output Resolutions

    HDMI: up to 4K@60Hz 4:4:4, supports 4K to 1080p downscaling

  • Audio Formats for Pass-through

    LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio

  • Audio Formats for De-embedding

    PCM 2.0 on 5-pin terminal block

Control

Jump to...
  • USB

    2x USB Type C with charging function (one for 65W, one for 10W)
    2x USB Type B for host devices
    4x USB Type A for peripherals

  • RS-232

    1x 3-pin terminal block

  • Ethernet

    1x 100Base-T on RJ45 port

General

Jump to...
  • Color

    Black

  • Operating Temperature

    23 - 131 Degree F (-5 - 55 Degree C)

  • Storage Temperature

    -13 - 158 Degree F (-25 - 70 Degree C)

  • Relative Humidity

    10%-90%

  • Power Supply

    Input: AC 100-240V, 50/60Hz
    Output: 20V DC 5.0A, 100W

  • Power Consumption

    85W (Max)

  • Dimensions (W x H x D)

    10.24 x 0.98 x 6.10" (260 x 25 x 155mm)

  • Weight

    33.51 oz (950g)

  • UPC Code

    880802001845

About DVDO Presentation Switcher

DVDO-USBC-HDMI-PS-42 is a 4x2 presentation switcher with 2 HDMI inputs, 2 USB-C inputs and 2 HDMI outputs with a separate audio output. The HDMI inputs support incoming video signals with resolutions up to 4K60 4:4:4 at 18Gbps. The USB-C inputs support resolutions up to 4K30 and can each drive both HDMI outputs through the DP 1.2 MST function.

The first USB-C input provides 65W charging and the second USB-C input provides 10W charging for mobile devices. The unit includes 4 USB 3.2 type-A ports on the back panel for peripherals as well as 2 USB 3.2 type-B ports on the front panel for host devices. It can be controlled over IP, RS-232, CEC or via the front panel buttons.

Applications
• Conference Rooms
• Training Rooms
• Boardrooms
• Education
• Lecture Halls
• Classrooms

DVDO Presentation Switcher Features

  • Two HDMI inputs support resolutions up to 4K@60 4:4:4 18Gbps
  • HDMI 2.0 & HDCP2.2 compliant
  • HDMI audio pass-through + separate audio output with de-embedding
  • Two USB-C 3.2 Gen 1 inputs support video resolutions up to 4K30 4:2:0, data transfer up to 5Gbps and 65W charging (first port)
  • USB-C inputs support DP 1.2 MST (Multi-Stream Transport) function
  • Dual HDMI output with conference, matrix, mirror & manual modes as well as 4K to 1080p downscaling
  • Four USB 3.2 Gen 1 ports (5Gbps) for peripherals such as KVM, cameras, speakerphones, touch monitors, etc
  • Two additional USB 3.2 ports for host switching
  • CEC control & EDID management
  • Controllable via front panel, RS232, TCP/IP (GUI) and Auto-switching
  • Firmware upgraded by TCP/IP (GUI)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Seamlessly switch between four inputs with this 4K presentation switcher for dynamic meetings.
  • Experience reliable connection with HDMI 2.0 and HDCP 2.2 compliance for pristine video quality.
  • This video switcher supports resolutions up to 4K@60Hz, ensuring high resolution for clear visuals.
  • Enjoy wide compatibility with USB-C and HDMI inputs, perfect for modern devices and setups.
  • Easy setup with included mounting ears and a user manual, making integration a breeze.
  • Get good value with advanced features like 4K downscaling and audio de-embedding capabilities.

What's in the box:

  • DVDO 4x2 4K Presentation Switcher with USB-C & HDMI Input Modules (Black)
  • 2x Mounting Ears with 4 Screws
  • 4x Rubber feet
  • RS232 Cable (3-Pin to DB9)
  • 5-Pin Phoenix Connector
  • 100W USB-C Power Supply (20V 5A)
  • User Manual
  • DVDO 1 Year Limited Warranty
