DVDO 4K60 HDMI Extender over HDBaseT, 131.23' Range

SKU: DVDOXTENDP40 MFR: DVDO-XTEND-PAIR40
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 131 ft with this 4K60 HDMI Extender over HDBaseT for ultimate connectivity.
  • Experience seamless 4K video with this HDMI extender, supporting up to 4096x2160@60Hz resolutions.
  • Enjoy superior audio quality; this HDMI extender supports PCM 7.1, Dolby, and DTS for immersive sound.
  • Built with durability in mind, this HDMI extender features robust ESD protection for reliable performance.
  • This HDMI extender kit includes everything needed, like mounting brackets and IR emitters, for easy setup.
  • Ensure compatibility with HDCP 2.2 using this HDMI extender, future-proofing your home theater setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DVDO 4K60 HDMI Extender Specifications

Technical

Technical

Jump to...
  • Input/Output Signal Type

    HDMI with 4K@60Hz 4:2:0, HDCP 2.2

  • Input/Output Resolution Supported

    Up to 4096x2160@60Hz, including 4K@60Hz/ 4K@30Hz/1080P/1080i/720P
    Note:4096x2160/3840x2160@50/60Hz is based on chroma sub-sampling 4:2:0 8-bit only.

  • Deep color

    4K: 8/10/12 bit
    1080P: up to 16 bit

  • Maximum Data Rate

    10.2 Gbps

  • Maximum Pixel Clock

    340MHz

  • Audio Format Supported

    Supports multichannel audio up to PCM 7.1, Dolby True HD, DTS HD Master Audio, Dolby Atmos and DTS:X

Transmission Distance

Jump to...
  • Transmission Distance

    HDMI
    Input/Output: 50' (15m), Video Supported: 1080P@60Hz
    Input: 33' (10m), Output: 50' (15m), Video Supported: 4K@60Hz

    Cat 5e/6
    200' (60m), Video Supported: 1080P@60Hz
    115' (35m), Video Supported: 4K@60Hz

    Cat 6a/7
    230' (70m), Video Supported: 1080P@60Hz
    130' (40m), Video Supported: 4K@60Hz

General

Jump to...
  • Color

    Black

  • Operating Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Storage Temperature

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Humidity

    10% to 90%, non-condensing

  • ESD Protection

    +/-8kV (Air-gap discharge)/ +/-4kV (Contact discharge)

  • Power Supply

    DC 18V 1A

  • Power Consumption (Max)

    8.88W (Pair, PoC)

  • Dimensions (W x H x D)

    Transmitter / Receiver: 4.3 x 0.6 x 2.5" (108.8 x 15 x 64.2mm)

  • Weight

    Transmitter / Receiver: 6.35 oz (180g)

  • UPC Code

    880802003160

About DVDO 4K60 HDMI Extender

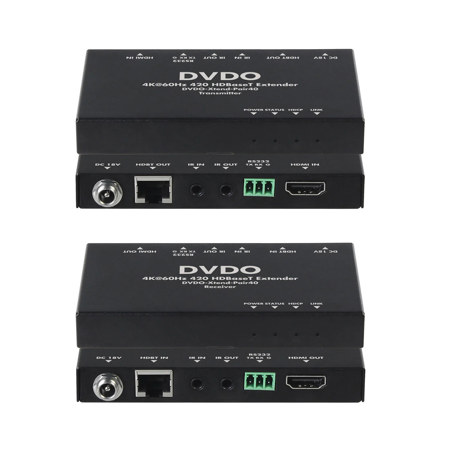

DVDO-Xtend-Pair40 is an ultra-slim HDMI extender over HDBaseT that can transmit 4K60 (4:2:0 8-bit 10.2Gbps) signals up to 40m/130ft and 1080p signals up to 70m/230ft via a single Cat6a/7 cable. With a feature set including HDCP 2.2 compatibility, Dolby and DTS HD audio, RS232 and bi-directional IR control, it offers the added benefit of an incredibly low-profile for a greatly reduced form factor behind the screen for even more convenience and ease of installation at the display zone.

Its proprietary bi-directional PoC (Power over Cable) technology ensures only one power adapter is needed at either Tx or Rx side to power both units, with LED indication for visual power supply to units and signal status to show established connection between connected devices.

DVDO 4K60 HDMI Extender Features

  • Ultra-slim and cost-effective HDMI extender over HDBaseT
  • HDMI 1.4 with 4K@60Hz (4:2:0 8-bit 10.2Gbps) and HDCP 2.2 compatibility
  • Extends 4K60 signals up to 40m and 1080p signals up to 70m via single Cat6a/7 cable
  • Multichannel audio support including PCM 2.0/5.1/7.1, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
  • Bi-directional IR and RS232 pass-through
  • Bi-directional PoC, only one power adapter is needed at either Tx or Rx side
  • Automatic EDID management
  • All connectors in one side and 15mm height for easy installation

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Extend your HDMI signal up to 131 ft with this 4K60 HDMI Extender over HDBaseT for ultimate connectivity.
  • Experience seamless 4K video with this HDMI extender, supporting up to 4096x2160@60Hz resolutions.
  • Enjoy superior audio quality; this HDMI extender supports PCM 7.1, Dolby, and DTS for immersive sound.
  • Built with durability in mind, this HDMI extender features robust ESD protection for reliable performance.
  • This HDMI extender kit includes everything needed, like mounting brackets and IR emitters, for easy setup.
  • Ensure compatibility with HDCP 2.2 using this HDMI extender, future-proofing your home theater setup.

What's in the box:

  • Transmitter Extender
  • Receiver Extender
  • DC 18V 1A Power Adapter
  • IR Emitter
  • Broadband IR Receiver (30-50 KHz)
  • 2x Phoenix Male Connectors (3.5mm/3 Pins)
  • 4x Mounting Brackets with Screws
  • DVDO 1 Year Limited Warranty
