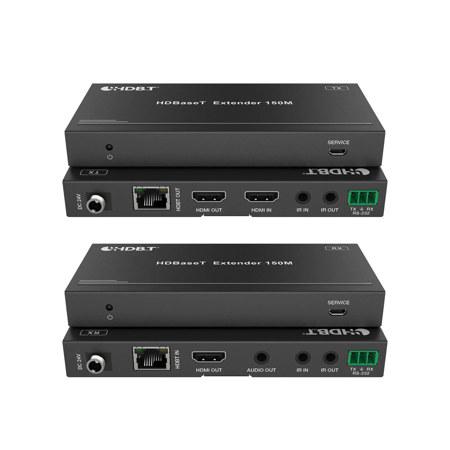

DVDO 4K60 HDMI Extender over HDBaseT, 492.12' Range
DVDO 4K60 HDMI Extender: Picture 1 thumbnail
DVDO 4K60 HDMI Extender: Picture 2 thumbnail
DVDO 4K60 HDMI Extender: Picture 3 thumbnail
DVDO 4K60 HDMI Extender: Picture 4 thumbnail
See all DVDO items

DVDO 4K60 HDMI Extender over HDBaseT, 492.12' Range

SKU: DVDOXTENDPAI MFR: DVDO-XTEND-PAIR150
Be the first to review this itemAsk a Question
$319.00
OR
$54/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 492 feet with this reliable HDBaseT HDMI extender kit.
  • Supports 4K60Hz resolutions with this HDMI extender, ensuring crystal-clear visuals every time.
  • Enjoy versatile connectivity with IR and RS-232 control using this HDMI over HDBaseT extender.
  • This HDMI extender supports HDCP 2.2 & 1.4, ensuring compatibility with protected content.
  • Perfect for home theaters or conference rooms, this HDMI extender offers wide application.
  • This HDMI over HDBaseT extender offers easy setup with included mounting ears and power adapter.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

DVDO 4K60 HDMI Extender Specifications

Technical

Technical

Jump to...

  • HDCP Compliance

    HDCP 2.2 / HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolution

    4K2K 50/60Hz 4:4:4
    4K2K 50/60Hz 4:2:2
    4K2K 50/60Hz 4:2:0
    4K2K 30Hz 4:4:4
    1080p, 1080i, 720p, 720i, 480p, 480i
    All HDMI 3D TV formats
    All PC resolutions including 1920 x 1200

  • Color Space

    RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

  • Color Depth

    8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
    8-bit (4K60Hz 4:4:4)

  • HDMI Audio Formats

    LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
    TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

  • L/R Audio Formats

    PCM 2.0

  • ESD Protection

    Human Body Model: +/-8kV (Air-gap discharge), +/-4kV (Contact discharge)

Connection

Jump to...

  • Transmitter

    Inputs:
    1x HDMI Type A (19-pin female)

    Outputs:
    1x HDMI Type A (19-pin female)
    1x HDBT OUT (RJ45, 8-pin female)

    Control:
    1x IR IN (3.5mm Stereo Mini-jack)
    1x IR OUT (3.5mm Stereo Mini-jack)
    1x RS-232 (Phoenix jack)
    1x SERVICE (Mini-USB, Update port)

  • Receiver

    Inputs:
    1x HDBT IN (RJ45, 8-pin female)

    Outputs:
    1x HDMI Type A (19-pin female)
    1x AUDIO OUT (3.5mm Stereo Mini-jack)

    Control:
    1x IR IN (3.5mm Stereo Mini-jack)
    1x IR OUT (3.5mm Stereo Mini-jack)
    1x RS-232 (Phoenix jack)
    1x SERVICE (Mini-USB, Update port)

Mechanical

Jump to...

  • Color

    Black

  • Housing

    Metal Enclosure

  • Power Supply

    Input: AC 100 - 240V 50/60Hz
    Output: DC 24V/1A (Locking connector)

  • Power Consumption

    9.36W

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no condensation)

  • Dimensions (W x D x H)

    Transmitter / Receiver: 5.51 x 2.56 x 0.71" (140 x 65 x 18mm)

  • Weight

    Transmitter: 5.64 oz (160g)
    Receiver: 5.47 oz (155g)

Other

Jump to...

  • UPC Code

    880802002682

About DVDO 4K60 HDMI Extender

This 18Gbps HDMI extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150m between transmitter and receiver via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. The extender also supports de-embedded audio for L/R audio output. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

Applications
• Conference Rooms
• Education
• Hospitality
• Restaurants
• Digital Signage
• Retail
• Houses of Worship
• Residential

DVDO 4K60 HDMI Extender Features

  • HDMI 2.0b / HDCP 2.2 & 1.4 / DVI 1.0 compliant
  • Support 18Gbps video bandwidth
  • The maximum extended transmission distance via a single Cat5e/6 cable: 492' / 150m for 1080p signals
  • Support one HDMI loop output on the transmitter
  • Extract audio to analog stereo output on receiver
  • Bi-directional IR, RS-232 and CEC pass-through
  • HDR, HDR10+, Dolby Vision and HLG function supported
  • Support PoC (Power over Cable) function
  • Compact design for easy and flexible installation

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your HDMI signal up to 492 feet with this reliable HDBaseT HDMI extender kit.
  • Supports 4K60Hz resolutions with this HDMI extender, ensuring crystal-clear visuals every time.
  • Enjoy versatile connectivity with IR and RS-232 control using this HDMI over HDBaseT extender.
  • This HDMI extender supports HDCP 2.2 & 1.4, ensuring compatibility with protected content.
  • Perfect for home theaters or conference rooms, this HDMI extender offers wide application.
  • This HDMI over HDBaseT extender offers easy setup with included mounting ears and power adapter.

What's in the box:

  • 18Gbps HDMI Over HDBaseT Extender (Transmitter)
  • 18Gbps HDMI Over HDBaseT Extender (Receiver)
  • 1.5m IR Blaster Cable
  • 1.5m 20-60KHz IR Receiver Cable
  • 4x Mounting Ear
  • 2x 3-Pin Phoenix Connector
  • 24V/1A Locking Power Adapter
  • User Manual
  • DVDO 1 Year Limited Warranty
