DVDO 4K HDMI/USB-C Extender over HDBaseT 3.0 with USB 2.0, 229.65' Range
SKU: DVDOXTENDU1 MFR: DVDO-XTEND-USBC-HDMI-70
Earn VIP Reward Points
Key Features
- Extend your 4K HDMI signal up to 229.65' with this reliable HDBaseT 3.0 extender kit.
- Enjoy seamless USB 2.0 connectivity alongside your HDMI signal using this versatile extender.
- This HDMI/USB-C extender supports resolutions up to 4K@60Hz 4:4:4 for stunning video quality.
- Control your devices remotely with integrated IR and RS-232 pass-through on this KVM extender.
- Power over Cable (PoC) simplifies setup, delivering power to the receiver via HDBaseT cable.
- Experience superior compatibility with HDR, HDR10+, and Dolby Vision on this HDMI extender.
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$209.99
3 Year
$299.99
4 Year
$359.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About DVDO HDMI/USB-C Extender
DVDO-Xtend-USBC-HDMI-70 is an 18Gbps HDBaseT 3.0 extender that can transmit uncompressed HDMI, USB-C and USB 2.0 signals up to 230ft/70m (4K30 / 1080p) or 131ft/40m (4K60) via a single CAT6A/7 cable. It supports video resolutions up to 4K2K@60Hz YUV 4:4:4 as well as bi-directional 24V POC.

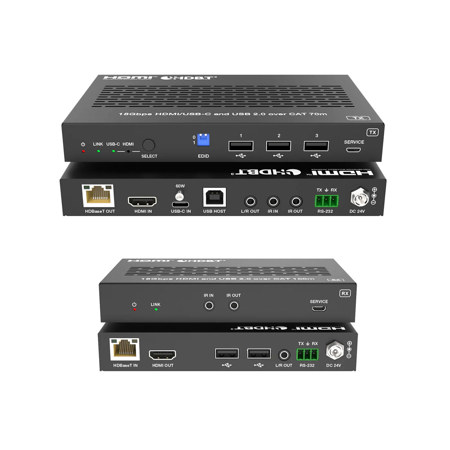

The transmitter includes 1 x HDMI input, 1 x USB-C input (60W charging), 1 x USB Host and 3 x USB Device ports. The receiver includes 1 x HDMI output and 2 x USB Device ports.
Both transmitter and receiver support 3.5mm analog audio de-embedding, EDID management, bi-directional IR and RS-232.
Applications
• Conference Rooms
• Education
• Healthcare
• Courtrooms
• Residential
DVDO HDMI/USB-C Extender Features
- Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth & HDBaseT 3.0
- Video resolution up to 4K2K@60Hz (YUV 4:4:4)
- Uncompressed video transmission up to 230'/70m for 4K@30Hz & 1080p signals or 131'/40m for 4K@60Hz signals over a single CAT6A/7 cable
- Tx includes 1 x HDMI and 1 x USB-C inputs, 1 x HDBT output, 1 x USB 2.0 host and 3 x USB 2.0 clients
- Rx includes 1 x HDMI output, 2x USB 2.0 clients
- USB-C and HDMI signal inputs support auto or manual switching mode
- Auto switching supports HDMI 5V or signal detect selection
- USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging up to 60 watts
- Tx/Rx USB-A client ports VBUS on or off depends on whether the USB host is connected
- HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
- 4K to 1080p downscaling through HDMI output
- Both Tx and Rx support analog audio de-embedding
- RS-232 signal pass-through and guest-mode control
- Bi-directional IR pass-through, USB 2.0 signal transmission
- Advanced EDID management
- Each USB-A port provides power up to 5V/500mA
- Bi-directional 24V POC, with POC switch
Warranty Information
This product has a limited warranty of 12 months.
