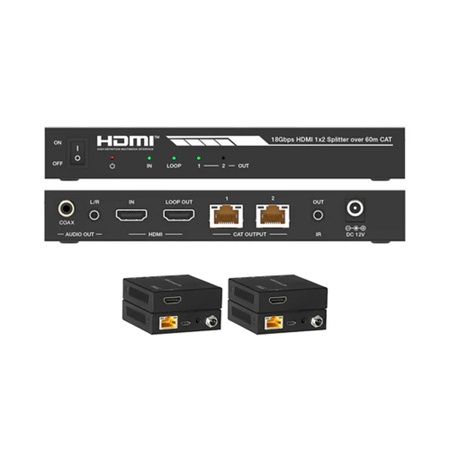

DVDO 1x2 4K HDMI 18Gbps Splitter

SKU: DVDSPLITTR12 MFR: DVDO-SPLITTER-12
$59.00
Earn VIP Reward Points

Key Features

  • Effortlessly share one 4K HDMI source across two displays with this reliable 1x2 HDMI splitter.
  • Enjoy stunning 4K2K@60Hz resolution, delivering crystal-clear visuals for all your content.
  • Experience seamless plug-and-play setup, making installation quick and incredibly easy.
  • This compact design is perfect for home theaters or professional AV presentations, saving space.
  • Benefit from robust HDCP 2.2 compliance, ensuring secure playback of protected content.
  • Connect with confidence, as this durable metal enclosure provides long-lasting performance.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DVDO HDMI Splitter Specifications

Technical

Technical

Jump to...
  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2 / HDCP 1.4

  • Video Bandwidth

    600MHz / 18Gbps

  • Video Resolutions

    4K2K@24/25/30/60Hz

  • Color Space & Depth

    Up to 4K2K@60Hz with 24-bit RGB / YCbCr 4:4:4

  • HDMI Audio Formats

    LPCM 7.1CH, Dolby TrueHD, DTS HD Master Audio

  • ESD Protection

    Human body model - +/-8kV (Air-gap discharge), +/-4kV (Contact discharge)

Connections

Jump to...
  • Input ports

    1x HDMI Type A (19-pin female)

  • Output ports

    2x HDMI Type A (19-pin female)

Mechanical

Jump to...
  • Power Supply

    Input: AC100 - 240V 50/60Hz
    Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)

  • Power Consumption

    2W

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no condensing)

Physical

Jump to...
  • Color

    Black

  • Material

    Metal Enclosure

  • Dimensions (W x D x H)

    2.20 x 3.94 x 0.63" (56 x 100 x 16mm)

  • Weight

    5.82 oz (165g)

  • UPC Code

    880802002712

About DVDO HDMI Splitter

DVDO-Splitter-12 is an advanced solution for splitting an HDMI content to 2 HDMI outputs synchronously. It provides high performance audio and video up to 4K2K@60Hz (4:4:4) and is capable of receiving, retiming and transmitting up to 18Gbps of bandwidth with no data loss.

Applications
• Conference Rooms
• Education
• Hospitality
• Restaurants
• Digital Signage
• Retail
• Houses of Worship
• Residential

DVDO HDMI Splitter Features

  • HDMI 2.0b, HDCP 2.2 compliant
  • Up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
  • VESA format up to QSXGA@60Hz
  • Supports LPCM 7.1CH, Do by TrueHD, and DTS-HD Master Audio
  • Built-in equalizer, retiming and driver
  • Smart EDID, STD (1080p) mode and TV (copy OUT1) mode
  • Compact design for an easy and flexible installation

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Effortlessly share one 4K HDMI source across two displays with this reliable 1x2 HDMI splitter.
  • Enjoy stunning 4K2K@60Hz resolution, delivering crystal-clear visuals for all your content.
  • Experience seamless plug-and-play setup, making installation quick and incredibly easy.
  • This compact design is perfect for home theaters or professional AV presentations, saving space.
  • Benefit from robust HDCP 2.2 compliance, ensuring secure playback of protected content.
  • Connect with confidence, as this durable metal enclosure provides long-lasting performance.

What's in the box:

  • DVDO 1x2 4K HDMI 18Gbps Splitter
  • 5V/1A Power Adapter
  • User Manual
  • DVDO 3 Year Limited Warranty
