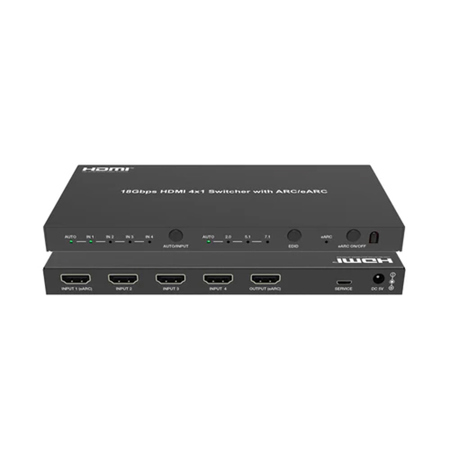

DVDO 4x1 4K HDMI 18Gbps Switcher with ARC, Black
DVDO HDMI Switcher: Picture 1 thumbnail
DVDO HDMI Switcher: Picture 2 thumbnail
DVDO HDMI Switcher: Picture 3 thumbnail
See all DVDO items
New Arrival

DVDO 4x1 4K HDMI 18Gbps Switcher with ARC, Black

SKU: DVDSWT41ARC MFR: DVDO-SWITCHER-41-ARC
Be the first to review this itemAsk a Question
$199.00
OR
$34/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly switch between four 4K HDMI sources with 18Gbps bandwidth for pristine video quality.
  • Enjoy stunning visuals up to 4K2K@60Hz 4:4:4, supporting HDR, HDR10+, and Dolby Vision.
  • Connect multiple devices like gaming consoles and streaming boxes with this versatile 4x1 HDMI switcher.
  • Experience immersive audio with support for LPCM, Dolby Atmos, DTS-HD Master Audio, and ARC functionality.
  • Benefit from HDCP 2.2 compliance, ensuring compatibility with the latest 4K content and devices.
  • The compact and durable metal enclosure ensures reliability and easy integration into any home theater setup.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$11.99
2-Year Adorama Protect$17.99
3-Year Adorama Protect$27.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DVDO HDMI Switcher Specifications

Technical

Technical

Jump to...

  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2 / 1.x

  • Video Bandwidth

    18Gbps

  • Video Resolution

    Up to 4K2K@60 4:4:4

  • Color Space

    RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0

  • Color Depth

    8-bit, 10-bit, 12-bit (1080p@60Hz)
    8-bit (4K2K@60Hz YUV4:4:4)
    8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0)

  • HDMI Audio Formats

    LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

  • HDR

    HDR, HDR 10, HDR 10+ and Dolby Vision

  • ESD Protection

    Human body model - +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

Connections

Jump to...

  • Input ports

    4x HDMI IN (Type A, 19-pin female)

  • Output ports

    1x HDMI OUT (Type A, 19-pin female)

  • Control ports

    1x Service (Micro USB port)

Mechanical

Jump to...

  • Power Supply

    Input: AC 100 - 240V 50/60Hz
    Output: DC 5V/1A

  • Power Consumption

    2W (Max)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no-condensing)

Physical

Jump to...

  • Color

    Black

  • Material

    Metal Enclosure

  • Dimensions (W x D x H)

    6.89 x 3.94 x 1.18" (182 x 84 x 15.5mm)

  • Weight

    13.05 oz (370g)

Other

Jump to...

  • UPC Code

    880802002064

About DVDO HDMI Switcher

DVDO-Switcher-41-ARC is an 18Gbps HDMI 4x1 Switcher that can switch any four HDMI sources to one HDMI display. It supports video resolutions up to 4K2K@60Hz RGB/YCbCr 4:4:4, ARC/eARC function (only for the "INPUT 1 (eARC)" port), 10bit HDR and CEC function. It also supports advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable). It offers flexible control via front panel buttons and IR remote control.

Applications
• Residential
• Education
• Hospitality
• Restaurants
• Digital Signage
• Retail
• Houses of Worship
• Conference Rooms

DVDO HDMI Switcher Features

  • HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
  • Video resolutions up to 4K2K@60Hz RGB/YCbCr 4:4:4
  • 18Gbps video bandwidth
  • 3D, HDR, HDR10, HDR10+, Dolby Vision pass-through
  • Supported audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Auto/manual switching mode for input source
  • ARC/eARC function
  • Advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable)
  • Flexible control via front panel buttons or IR remote control

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly switch between four 4K HDMI sources with 18Gbps bandwidth for pristine video quality.
  • Enjoy stunning visuals up to 4K2K@60Hz 4:4:4, supporting HDR, HDR10+, and Dolby Vision.
  • Connect multiple devices like gaming consoles and streaming boxes with this versatile 4x1 HDMI switcher.
  • Experience immersive audio with support for LPCM, Dolby Atmos, DTS-HD Master Audio, and ARC functionality.
  • Benefit from HDCP 2.2 compliance, ensuring compatibility with the latest 4K content and devices.
  • The compact and durable metal enclosure ensures reliability and easy integration into any home theater setup.

What's in the box:

  • DVDO 4x1 4K HDMI 18Gbps Switcher (Black)
  • IR Remote
  • 5V/1A Power Adapter (USA Standard)
  • User Manual
  • DVDO 3 Year Limited Warranty
