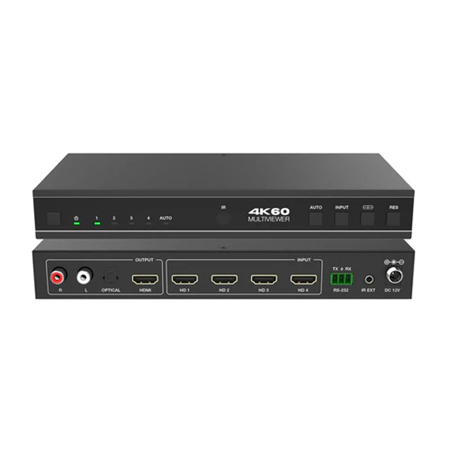

DVDO 4x1 4K HDMI 18Gbps Seamless Switcher with Multiview and Audio Output, Black
DVDO HDMI Switcher: Picture 1 thumbnail
DVDO HDMI Switcher: Picture 2 thumbnail
See all DVDO items
New Arrival

DVDO 4x1 4K HDMI 18Gbps Seamless Switcher with Multiview and Audio Output, Black

SKU: DVDSWT41SSMV MFR: DVDO-SWITCHER-41SS-MV
Be the first to review this itemAsk a Question
$499.00
OR
$84/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 4K HDMI sources with 18Gbps bandwidth for crystal-clear video.
  • Enjoy advanced multiview capabilities, displaying multiple inputs on one screen for enhanced productivity.
  • Experience superior audio output with both L/R RCA and Optical S/PDIF options for versatile sound.
  • Achieve quick and smooth video switching, perfect for live presentations and dynamic content creation.
  • Control your setup effortlessly using the included IR remote, RS-232, or IR EXT for flexible management.
  • Benefit from broad compatibility with HDMI 2.0b and HDCP 2.2, ensuring support for modern devices.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$34.99
2-Year Adorama Protect$59.99
3-Year Adorama Protect$79.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DVDO HDMI Switcher Specifications

Technical

Technical

Jump to...

  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2 / 1.x

  • Video Bandwidth

    18Gbps

  • Video Resolution

    Up to 4K2K@60 4:4:4

  • IR Level

    5Vp-p

  • IR Frequency

    38KHz

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

  • Color Depth

    8/10/12-bit

  • Audio Formats

    HDMI audio: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
    Analog audio: (3.5mm L/R): PCM2.0
    SPDIF Optical audio: PCM2.0, Dolby Digital, DTS 5.1 (doesn't support HBR audio)

  • ESD Protection

    Human body model - +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

Connections

Jump to...

  • Input ports

    4x HDMI IN (Type A, 19-pin female)

  • Output ports

    1x HDMI OUT (Type A, 19-pin female)
    1x L/R OUTPUT (RCA)
    1x OPTICAL OUT (S/PDIF)

  • Control ports

    1x RS-232 (3pin-3.81mm phoenix connector)
    1x IR EXT (3.5mm Stereo Mini-jack)

Mechanical

Jump to...

  • Power Supply

    Input: AC 100 - 240V 50/60Hz
    Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)

  • Power Consumption

    10W (Max)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no-condensing)

Physical

Jump to...

  • Color

    Black

  • Material

    Metal Enclosure

  • Dimensions (W x D x H)

    8.66 x 3.94 x 1.18" (220 x 100 x 30mm)

  • Weight

    21.87 oz (620g)

Other

Jump to...

  • UPC Code

    880802000404

About DVDO HDMI Switcher

DVDO-Switcher-41SS-MV is a 4x1 seamless HDMI switcher that can route up to four sources to a single display. It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.

The HDMI output has separate analog and optical audio connections. DVDO-Switcher-41SS-MV offers 8 different display modes ranging from a single view mode to different multiview modes allowing 2, 3 or all 4 sources to be displayed on the same screen.

Applications
• Conference Rooms
• Education
• Hospitality
• Restaurants
• Digital Signage
• Retail
• Houses of Worship
• Residential

DVDO HDMI Switcher Features

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
  • Support resolutions up to 4K@60Hz 18Gbps
  • Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
  • 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
  • Seamless switching in single screen display mode & fast switching in multiview display mode
  • Audio de-embedding via analog and optical fiber audio ports
  • Volume control and independent audio selection
  • OSD navigation for advanced settings
  • EDID management
  • Control via front panel buttons, IR remote, OSD menu navigation, control software, RS-232

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly switch between 4K HDMI sources with 18Gbps bandwidth for crystal-clear video.
  • Enjoy advanced multiview capabilities, displaying multiple inputs on one screen for enhanced productivity.
  • Experience superior audio output with both L/R RCA and Optical S/PDIF options for versatile sound.
  • Achieve quick and smooth video switching, perfect for live presentations and dynamic content creation.
  • Control your setup effortlessly using the included IR remote, RS-232, or IR EXT for flexible management.
  • Benefit from broad compatibility with HDMI 2.0b and HDCP 2.2, ensuring support for modern devices.

What's in the box:

  • DVDO 4x1 4K HDMI 18Gbps Seamless Switcher (Black)
  • IR Remote
  • 3-Pins Phoenix Male Connectors (3.81mm)
  • 4.92' 38KHz IR Wideband Receiver Cable
  • 2x Mounting Ears
  • 4x Machine Screws (KM3)
  • 4x Rubber Feet
  • 12V/2.5A Locking Power Adapter
  • User Manual
  • DVDO 3 Year Limited Warranty
