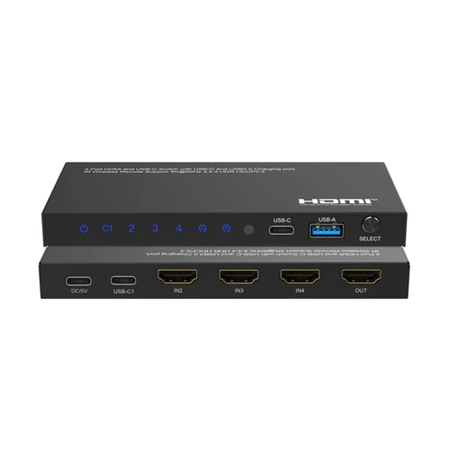

DVDO 4x1 8K Switcher with 1x USB-C and 3x HDMI Ports, Black
DVDO HDMI & USB Switcher: Picture 1 thumbnail
DVDO HDMI & USB Switcher: Picture 2 thumbnail
DVDO HDMI & USB Switcher: Picture 3 thumbnail
DVDO HDMI & USB Switcher: Picture 4 thumbnail
DVDO HDMI & USB Switcher: Picture 5 thumbnail
See all DVDO items
New Arrival

DVDO 4x1 8K Switcher with 1x USB-C and 3x HDMI Ports, Black

SKU: DVDSWT41USB MFR: DVDO-SWITCHER-41-USBCHDMI
Be the first to review this itemAsk a Question
$139.00
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 4 video sources with 8K@60Hz resolution for stunning clarity.
  • Enjoy versatile connectivity with 3 HDMI inputs and 1 USB-C port, perfect for modern devices.
  • Experience lightning-fast switching speed and automatic input detection for effortless use.
  • Benefit from advanced audio formats including Dolby Atmos and DTS-HD Master Audio support.
  • Control your video switcher easily with the included IR remote, front panel, or CEC.
  • Its compact and portable design makes this 4x1 8K switcher ideal for any setup.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$9.99
2-Year Adorama Protect$14.99
3-Year Adorama Protect$23.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DVDO HDMI & USB Switcher Specifications

Video

Video

Jump to...

  • HDMI Compliance

    HDMI 2.0b / HDCP 2.3/2.2/1.4

  • Connections

    Inputs: 3x HDMI + 1x USB-C (compatible with Thunderbolt 3 & DP 1.4 alt mode)
    Outputs: 1x HDMI
    Charging ports: 1x USB-C + 1x USB-A up to 5W (not simultaneous)

  • Resolutions Supported

    Up to 8K@60Hz 4:4:4 / 4K@120Hz / 1080p@240Hz

  • Bandwidth

    48Gbps (12Gbps per channel x 4 channels)

  • High Dynamic Range

    HDR10 / HDR10+ / Dolby Vision

  • Control Method

    IR Remote, Front Panel Button, Automatic Switching, CEC

Audio

Jump to...

  • Audio Formats Supported

    Uncompressed LPCM / Compressed DTS, Dolby Digital including DTS-HD Master Audio, Dolby TrueHD & Dolby Atmos

General

Jump to...

  • Operating Temperature

    32 Degree F to 122 Degree F (0 Degree C to 50 Degree C)

  • Humidity

    5% to 80% RH non-condensing

  • Power Supply

    5V 2A USB power adapter

  • Power Consumption

    10W Max

  • Color

    Black

  • Material

    Metal

  • Dimensions (W x D x H)

    5.5 x 2.5 x 0.6" (139 x 64.5 x 15mm)

  • Weight

    6.72 oz (190.6g)

Other

Jump to...

  • UPC Code

    880802001920

About DVDO HDMI & USB Switcher

DVDO-Switcher-41-USBC-HDMI is a 4x1 switcher that allows up to three HDMI and one USB-C sources to be routed to an HDMI display. It supports incoming video signals with resolutions up to 8K60 4:4:4 with a video bandwidth of 48Gbps.

It offers both automatic and manual switching and can be controlled via the IR remote, a button on the front panel or CEC. Two additional USB ports (1 x USB-C + 1 x USB-A) are available on the front panel to charge external devices.

Applications
• Conference Rooms
• Education
• Hospitality
• Restaurants
• Digital Signage
• Retail
• Houses of Worship
• Residential

DVDO HDMI & USB Switcher Features

  • HDMI 2.0b with 8K60 4:4:4 and HDCP 2.3 compliant
  • 3x HDMI + 1 x USB-C inputs / 1 x HDMI output
  • USB-C input compatible with Thunderbolt 3 and DP 1.4 alt mode
  • Automatic and manual switching
  • Supports uncompressed (LPCM) and compressed (DTS, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD) audio
  • HDR10/HDR10+/Dolby Vision pass-through
  • Controls: front panel button, IR remote, CEC
  • Compatible with 3D signals
  • Built-in Equalizer, Retiming and Driver
  • 1x USB-C + 1 x USB-A charging ports up to 5W (only one port can charge at a time)

Warranty Information

This product has a limited warranty of 36 months.
