The PTC-140T camera in the PTZ Camera Kit has a high resolution of Full HD (1920x1080) with 60fps, ensuring high-quality, detailed footage.
Yes, the PTZ Camera Kit is compatible with RMC-300 and RMC-180 PTZ Camera Controllers for remote control operation.
The HC-800 Wheeled Carry Case is designed for secure storage and easy transportation of the PTZ cameras. It's made from durable polypropylene, with a retractable handle and wheels. It also features rubber seals to protect the equipment from water and dust.
Yes, the PTC-140T camera has an integrated streaming encoder that can encode up to two simultaneous streams to any cloud service, including Datavideo's own DVS-200.
The PTC-140T camera offers a powerful 20x Optical Zoom and 10x Digital Zoom, allowing for clear and detailed images even from a distance.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/50/30/25/59.94/29.97
1/2.8" high quality HD CMOS sensor
2.07 Mega pixels
>55dB
0.5Lux (F1.8, AGC ON)
Auto/ Manual
20x Optical Zoom, 10x Digital Zoom
Off/ Normal
Auto/ Manual
Yes
English, Simplified Chinese
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Auto/ Manual
Yes
Auto / Manual
Pan: 340 Degree , Tilt: +90 Degree to -30 Degree
Pan: 0.1 to 60 Degree /sec
Tilt: 0.1 to 30 Degree /sec
255 Position
f=5.2mm (wide) to 98mm (tele)
F1.6 to F3.5
Approx. 54.7 Degree (WIDE END) / 3.3 Degree (TELE END)
Backlight Compensation
1x HDBaseT (PoE)
1x RJ-45
Line In (IP Stream Output)
Dual color (Red, Green)
M52.0 x 0.75 Thread with UV Protection
VISCA, DVIP
RS-232
LAN (RJ-45)
Ethernet
Yes
RMC-300
1/4-20 UNC
7.31 x 6.14 x 7.16" (185.8 x 156 x 181.9mm)
3.51 lb (1.6kg)
Polypropylene
XXL
External: 24.61 x 16.54 x 13.39" (625 x 420 x 340mm)
Internal: 22.64 x 14.17 x 9.84" (575 x 360 x 250mm)
Internal Lid: 22.64 x 14.17 x 1.57" (575 x 360 x 40mm)

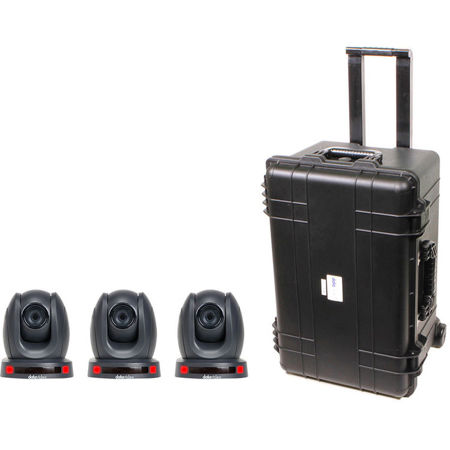

Explore the world of professional video surveillance with the PTZ Camera Kit, featuring 3x PTC-140T Full HD 20x PTZ Cameras and an HC-800 Wheeled Carry Case. The PTC-140T is an advanced HDBaseT PTZ camera, offering a cost-effective solution with Power over Ethernet (PoE), an integrated streaming encoder, and a powerful 20x optical zoom.
This innovative camera system ensures all signals, power, and control data are transmitted through a single CAT6 network cable, capable of reaching distances up to 100 meters. The PTC-140T's onboard streaming encoder can encode up to two simultaneous streams to any cloud service, including Datavideo's own DVS-200, making it a versatile choice for diverse streaming needs.
The camera boasts a 1/2.8 inch CMOS sensor, delivering Full HD resolution with 60fps for high-quality, detailed footage. With 20x Optical Zoom and 10x Digital Zoom capabilities, capturing clear images from a distance is a breeze. Advanced noise reduction technology ensures crisp, clean audio, while H.264/H.265 video compression optimizes streaming performance.
The PTC-140T supports multiple network protocols, including RTSP and RTMP, facilitating easy linkage to streaming media servers. It's compatible with HS-1500T and HS-1600T HDBaseT Portable Video Studios and can be remotely controlled by RMC-300 and RMC-180 PTZ Camera Controllers for added convenience.
The kit also includes the HC-800, a heavy-duty carry case made from super strong polypropylene. It features a wave foam fitted in the lid, two pre-cut foam and one wave foam in the base for secure storage. The trunk-style case comes with a retractable handle and wheels for easy transportation, and rubber seals to protect your valuable equipment from water and dust.
Whether you're monitoring security, live events, or conducting remote surveillance, the PTZ Camera Kit with 3x PTC-140T Full HD 20x PTZ Cameras and HC-800 Wheeled Carry Case offers a comprehensive, high-quality solution.
