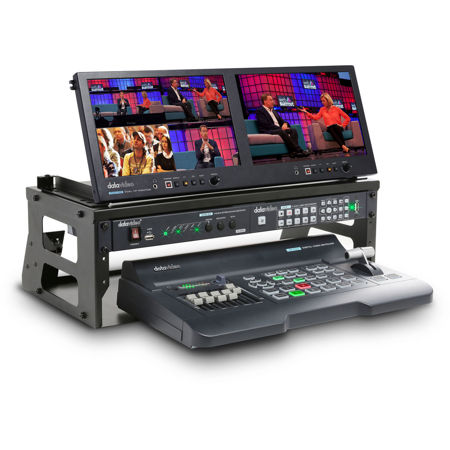

Datavideo GO 500 Studio 4 Channel HD/SD Portable Video Production Bundle, Includes SE-500HD Video Switcher, TLM-102 Dual Monitor, NVS-25 Streaming Encoder and HDR-1 H.264 USB Recorder

Imagine if all your video production equipment fit inside one portable case. It would make transporting your equipment from one job to the next a lot easier. GO-500 STUDIO is an all in one kit that comes with a SE-500HD video switcher, TLM-102 dual monitor for preview and program, NVS-25 streaming encoder and HDR-1 H.264 USB recorder all racked, connected and packed in a rugged hard case. What more do you need other than some cameras, which is where the 2 Camera GoKit comes in. Pair these two GoKits together and you can have a completed video production workflow. Because of the portability of these GoKits, they are ideal for various applications such as worship, live events, seminars, school sporting events and corporate presentations.

SE-500HD 4-Channel 1080p HDMI Video Switcher
The SE-500HD is a small, cost-effective, 1080p HDMI video switcher with easy-to-use professional features. It has four HDMI inputs and two HDMI outputs, which allow users to connect consumer camcorders, GoPros, HDMI laptops or tablets. What makes the SE-500HD special is the ability to accept various input resolutions at once, so users no longer need to add converters into the workflow. Don't let the SE-500HD fool you with its compact size and affordable price. It is loaded with features such as Luma key for graphic overlays, split screen for podcast interviews and PIP for PowerPoint presentations.

• 4 Channel HD/SD Digital Video Switcher
• Supports up to Full HD 1080p
• Video Input: 4x HDMI
• Video Output: 2x HDMI (1x Multiview / 1x Program)
• Audio Input: 1x Stereo RCA / 2x Microphone
• Audio Output: 1x Stereo RCA / 1x Stereo headphone mini Jack
• Audio Mixer: 2x Mic / 1x Stereo RCA / 1x internal Digital embedded
• Audio LED Meter
• Transitions: Wipe, Mix & Cut
• Keyer: Lumakey
• Picture-in-picture and split functions
• Tally Output

It also comes with a built-in audio mixer, so users can plug in microphones and other audio sources directly into the SE-500HD without needing to add an external audio mixer. The SE-500HD is the ideal solution for corporate training, education, podcasts and house of worship applications.

TLM-102 Dual 10" Monitor
The TLM-102, Dual 10.1" 4RU Rack mount monitor, is a broadcast quality monitoring system with built-in vectorscope/waveform monitor and video signal converters. Each monitor has one SDI input and one HDMI input. Each monitor also has one SDI output and one HDMI output. Built-in signal conversion allows each monitor to use one input for monitor display and the other input for signal conversion. The same can be done simultaneously with monitor 2.

• 1280x800 IPS Panel resolution
• Dual monitor, 4RU rack mount
• Support 3G-SDI video input with loop-through output
• Support HDMI input with loop-through output
• Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field, etc.,
• SDI, HDMI cross conversion
• Individual adjustments of Brightness, Contrast, Color Saturation and LED Backlight Level for each monitor
• Color temperature for user to select
• Front panel headphone jacks
• User-definable function buttons F1, F2

The 4RU rack mount design offers various of mounting methods for on-site monitoring, video wall and video production vans. Excellent display with advanced auxiliary functions also provides viewing & friendly user experience. TLM-102 pairs perfectly with the SE-500HD Video Switcher for multi-view monitoring on the left side and program output monitoring on the right (or vice-versa).

NVS-25 H.264 Video Streaming Server / Recorder
NVS-25 is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. From any HDMI / SDI / CVBS input source such as a camera or switcher, NVS-25 generates an H.264-encoded stream compliant with RTSP / RTMP / HLS protocols. NVS-25 can be used in recording mode to record an MP4 or .TS file to a USB storage device and it can be used in encoding mode to generate an H.264 stream. NVS-25 is remotely controlled using Windows / Apple PC or mobile device with a web browser. Flexible mechanism design for desktop application or 1U rack mount application.

• Broadcast quality HD / SD H.264 network streaming
• H.264 / AVC video CODEC, up to High Profile Level 4.0
• Maximum bitrate: 6 Mbit
• Input source: NVS-25 can accept SDI / HDMI / CVBS source input
• Supports de-interlace video streaming for progressive output
• Front panel control for recording and streaming
• Audio inputs: select embedded or external audio source
• Network feature: DHCP Client, RTSP over TCP/UDP/HTTP with MPEG TS. RTMP, HLS protocols (unicast only)
• Flexible video scaler presets for streaming out
• Supports 3 types of GOP structure: IBBP, IPPP and IBP
• Web UI for system configuration and FW upgrade
• Attach USB storage device (Up to 1TB storage device)

HDR-1 Standalone H.264 USB Recorder / Player
HDR-1 is a standalone H.264 USB recorder / player with redundant power system (UPS) that is portable and easy to use. It records high quality format video files (up to20 Mbps in MP4), which is ideal for capturing and archiving footage from worship seminars, corporate meetings, school announcements, lectures or live concerts. It can also be used by broadcasters to create a web-optimized proxy recording. Recorded files can be uploaded to YouTube or any website immediately after an event without needing to transcode, which makes it easy to share your content online. Front panel buttons make it easy to use. The record/pause feature allows users to record an event conveniently as a single file even if there is a break in proceedings.

• Capture HD Video Up to 1080p30
• Redundant Power recorder (UPS), will switch to power bank charging when main power is off (with power bank connected)
• Works without a PC
• Record Format: MP4 (H.264+AAC)
• Record video to USB flash drive with NTFS file format
• To ensure recording quality, recommend the write speed of the USB 3.0 thumb drive should be faster than 45 MB/s
• Instant & Timer Recording
• GPI and RS-232 control supported
• Supported playback file formats: MP4 (H.264+AAC)
• Support 3D video Recorder (Top-and-bottom, Side-by-side Half)
• Built-in video Editor
• HDMI 1.4b Compatibility

HC-800 Water, Dust and Crush Resistant Case - Trolley Style (XXL)
• Heavy duty case made from super strong polypropylene
• Polypropylene Material
• 1 pc wave foam fitted in the lid
• 2 pc pre-cut foam & 1 pc wave foam in the base
• Trunk style with retractable handle and wheels
• Rubber seals to protect valuable equipment from water & dust
• Handy pull-out handle and wheels for easy transporting
