Datavideo HBT-11 HDBaseT to HDMI Receiver, 100m Range
EZ Stream Package C from Datavideo | Live Streaming Solutions
Datavideo HBT-11: Picture 1 thumbnail
See all Datavideo items

Datavideo HBT-11 HDBaseT to HDMI Receiver, 100m Range

SKU: DVHBT11

This item is no longer available.

Recommended Alternatives

Datavideo HBT-50: Picture 1 regular
Datavideo HBT-50 4-Channel HDBaseT Receiver w/HDMI & 3G-SDI Outputs, 100m Range
$2,999.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

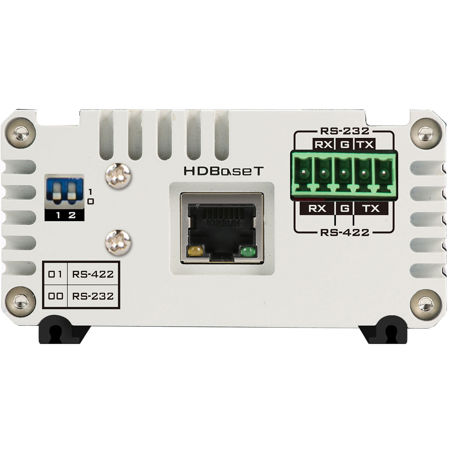

Datavideo HBT-11 Specifications

  • Video/Audio Input

    1x HDBaseT RJ-45

  • Video/Audio Output

    1x HDMI

  • Supported Video Format

    3840x2160p: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50, 720p: 60/59.94/50

  • DVIP

    RJ-45 x1 (Input)

  • RS-422/ RS-232

    Phoenix terminal. Pitch 3.50mm

  • Power

    DC In: DC 48V

  • PoE Output

    35W

  • HDBaseT Distance

    Up to 100m by Cat.6 cable

  • Operating Temp. Range

    32 - 104 Degree F (0-40 Degree C)

  • Dimensions (L x W x H)

    5.19 x 3.34 x 1.77" (132 x 85 x 45mm)

  • Weight

    14.1 oz (400g)

  • UPC Code

    672255007082

About Datavideo HBT-11

Explore the advanced capabilities of the HBT-11 HDBaseT to HDMI Receiver, a cutting-edge device designed to transmit HDMI video, DVIP control signals, and Power over Ethernet (PoE) between the transmitter and the receiver. This high-performance receiver leverages HDBaseT technology for single cable transmission, supporting a range of up to 100 meters.

The HBT-11 is engineered to transmit video, audio, DVIP Ethernet control, and RS-422/232 from a single Cat.5e/6/6a/7 cable, making it an efficient solution for your audio-visual needs. It offers a maximum video transmission distance of 100 meters in Full HD Mode, ensuring high-quality, uninterrupted signal over long distances.

Experience the power of 4K Transmission with the HBT-11. This receiver is capable of transmitting up to 4K video from the HBT-10 Transmitter to the HBT-11 Receiver, delivering ultra-high-definition visuals for a superior viewing experience.

The HBT-11 also supports DVIP/RS-422/232 Control Protocol, offering the flexibility to be controlled via RS-422/232 or DVIP interface. This feature allows for seamless integration and control, making the HBT-11 a versatile addition to any professional or home audio-visual setup.

In summary, the HBT-11 HDBaseT to HDMI Receiver combines advanced technology, superior transmission capabilities, and flexible control options to deliver a high-quality, efficient solution for your video and audio transmission needs.

Datavideo HBT-11 Features

  • Transmit up to 4Kx2K video from HBT-10 Transmitter Box to HBT11 Receiver Box
  • Extend video transmission up to 120m from HBT-10 Transmitter Box to HBT-11 Receiver Box
  • Transmit video, audio, DVIP Ethernet control, RS-422/232 and PoE by a single Cat.5e/6/6a/7 cable
  • 48V PoE Power supply from HBT-11 Receiver side
  • 12V 30W DC output at HBT-10 Transmitter Box side
  • Supports DVIP Control Protocol
  • Supports RS-422/232 Control Protocol

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend HDMI signals up to 100m with this HDBaseT receiver, ensuring reliable connectivity.
  • Enjoy pristine 4K video with HBT-11, supporting resolutions up to 3840x2160p for crystal-clear output.
  • Use the RJ-45 ports for seamless DVIP integration, enhancing your control system's capabilities.
  • This HDBaseT to HDMI receiver supports RS-422/RS-232 via Phoenix terminal for versatile control options.
  • Power your devices with 35W PoE output, streamlining your setup and reducing cable clutter effectively.
  • Compact and robust, the Datavideo HBT-11 HDMI receiver operates reliably between 32-104°F (0-40°C).

What's in the box:

  • Datavideo HBT-11 HDBaseT to HDMI Receiver
  • AC Cord
  • DC 48V Power Adapter
  • Phoenix Connector to RJ-45
  • Datavideo 1 Year Limited Warranty (Extended 2 Year Limited Warranty with Registration)
