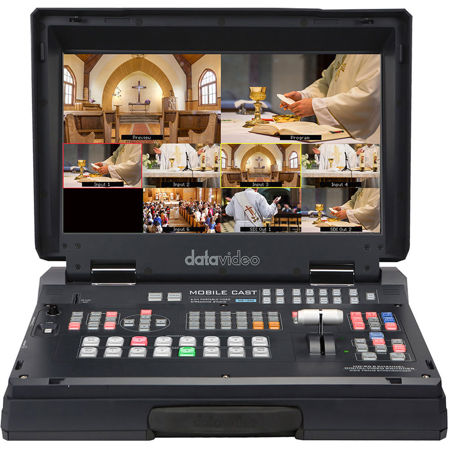

Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio

SKU: DVHS1300 MFR: HS-1300
Earn VIP Reward Points

Key Features

  • Create stunning HD videos with this portable live production switcher, offering high video quality.
  • Stream directly to platforms via H.264 encoding; perfect for live events with reliable connectivity.
  • Mix audio seamlessly with the built-in audio mixer, ensuring pro sound for every video project.
  • Enjoy versatile compatibility with HDMI and SDI inputs, integrating all your video sources easily.
  • Use the dual chromakey for virtual sets, adding a professional touch to your live streams and recordings.
  • Get low latency video switching for dynamic live productions, enhancing viewer engagement affordably.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Datavideo HS-1300 Specifications

  • Video Standard

    HD

  • Video Format

    1080i 50/59.94/60Hz
    720p 50/59.94/60Hz

  • Input Routable /Crosspoint

    All 6, repeatable

  • Video Input

    4x HD-SDI
    2x HDMI

  • Computer Graphic Interface

    2 via HDMI

  • Video output

    3x HDMI + 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or multiview

  • Audio input

    2x Balanced XLR

  • Audio output

    1x Stereo headphone

  • Embedded audio support

    2 ch Audio embedded

  • USK

    2x USK support Chromakey

  • DSK

    2x DSK support Lumakey & Linear key (Key / Fill)

  • Picture in Picture

    1

  • Built-in Audio Mixer

    Selectable audio follow video master gain control

  • Built-in Monitor Display

    17.3" HD TFT LED backlit, 1600x900 pix

  • Streaming Video Encode

    H.264 / AVC, Main/ High Profile
    Configurable Bit-rate up to 10Mbps

  • Streaming Audio Encode

    Configurable bit rate range from 32Kbps to 384Kbps
    Sample rate: 48KHz, 16bit

  • Streaming Protocol

    TS over TCP/UDP (unicast & multicast)
    RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    RTMP (Publish)

  • Streaming Control

    Web browser UI for configuration and control Socket commands

  • Recording file system

    FAT, exFAT, NTFS

  • Recording file format

    MP4

  • Recording Setting Control

    Web UI for system configuration and control

  • Dimensions (LxWxH)

    455 x 355 x 134mm (17.91 x 13.98 x 5.28")

  • Weight

    16.3 lbs (7.39kg)

  • UPC Code

    672255007471

About Datavideo HS-1300

The HS-1300 is a cost effective, all in one 6 channel hand-carry mobile studio with built-in streaming and recording capabilities. It has all the same great features of the HS-1200, with the addition of a built-in H.264 encoder for streaming. Therefore, the workflow is simplified because it is no longer necessary to add an external encoder to do streaming. Simply connect the HS-1300 to a network and begin streaming your program to your preferred CDN. In addition to the streaming capability, the HS-1300 can also record the program output to an SD drive.

Because of its lightweight portable design, the HS-1300 is ideal for various applications such as live concert events, seminars, sporting events and live TV programs that need to mix a variety of video and audio sources. Other features include a 17.3-inch LCD monitor, which displays the multi-view, dual chromakey, DSK, still store, user memories and PIP. Why lug around multiple pieces of equipment for your productions when you can have an all in one product like the HS-1300 Switch, monitor, stream and record simultaneously with the HS-1300.

Datavideo HS-1300 Features

  • Supports 6 video inputs (SDI x 4 + HDMI x 2) and 3 Video Output: ( SDI x 2 + HDMI x 3)
  • Support different bitrate for recording to SD card and streaming function
  • One button set up for recording and streaming
  • Broadcast quality H.264 network streaming
  • 2x XLR Analogue Audio Inputs
  • Flexible Mix/Effects Processor with: 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key, 2 DSK, supporting Linear & Luma Key Modes, 1 PIP (assignable to any of the 4 keyers, Wipe, Mix & Cut Transitions and Full M/E Preview function
  • Any Input (1-6) can be used as a Frame store (Stills Store)
  • XPT (Cross Point Assignment)
  • Tally and GPI output
  • One 17.3-inch with a resolution of 1600x900 dots
  • Easy to use On-screen Menu System for quick setting of parameters
  • Headphone jack for audio monitoring in Program Display Mode (not available in Multi-View Mode)

Key Features

  • Create stunning HD videos with this portable live production switcher, offering high video quality.
  • Stream directly to platforms via H.264 encoding; perfect for live events with reliable connectivity.
  • Mix audio seamlessly with the built-in audio mixer, ensuring pro sound for every video project.
  • Enjoy versatile compatibility with HDMI and SDI inputs, integrating all your video sources easily.
  • Use the dual chromakey for virtual sets, adding a professional touch to your live streams and recordings.
  • Get low latency video switching for dynamic live productions, enhancing viewer engagement affordably.

What's in the box:

  • Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio
  • DC 12V AD Switch with AC Cord
  • Datavideo 3 Year Warranty (1 Year + 2 Year with Registration)
