Datavideo HS-1500T HDBaseT Mobile Production Studio with 2x PTC-150TL Remote Control PTZ Cameras

The HS-1500T-2C bundle combines the HS-1500T HDBaseT hand carried studio and two PTC-150TL HD PTZ cameras with HDBaseT.

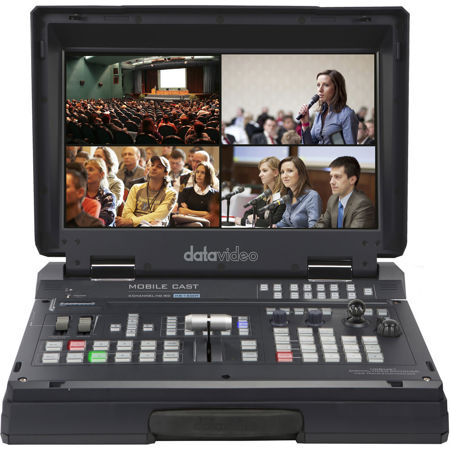

HS-1500T HD/SD 4-Channel HDBaseT Portable Video Studio
The World's first portable HDBaseT switcher. Datavideo's HS-1500T hand-carry mobile switcher supports full 1080p video and is designed for broadcast of live events and TV programs, which require a wide variety of video and audio sources. The HS-1500T is also a highly valuable solution for the worship, education and AV markets. Its built-in HDBaseT technology allows receiving of 1080p signals from three PTC-150TL HDBaseT PTZ cameras via CAT6 or above cable. It features PoE to provide power to three PTC-150T cameras, making installation fast and easy.

• Supports up to FHD 1080p
• Built-in HDBaseT technology allows control of up to three PTC-150TL Pan, Tilt and Zoom cameras, as well as send power to PTC-150Ts by PoE
• Pan, tilt and zoom with speed control by Joystick
• Flexible Mix/Effects : PIP, WIPE, Mix, Fade
• Tally Output
• One 17.3" with a resolution of 1920x1080 dots

The HS-1500T also features an audio mixer with balanced XLR inputs and unbalanced RCA audio inputs. Other features include PIP, wipe generator and tally. One of the best features of the HS-1500T is the integrated joystick, which allows the user to pan, tilt and zoom the PTC-150TL cameras. In addition, users can adjust the PTC-150T's focus, iris and other settings remotely using the HS-1500T.

PTC-150TL HD/SD PTZ Video Camera with HDBaseT Technology
The PTC-150TL HD/SD Video Camera is a PTZ camera that can be mounted on a wall, ceiling, floor or a tabletop. It's the most suitable for using with HS-1500T Portable Video Studio. The camera is equipped with HDBaseT Technology (HBT-11 Receiver Not Included) for remote control purpose, video image conveyance, power transmission and Ethernet connection. The camera captures HD video at 1920 x 1080 resolution and features wide dynamic range with backlight compensation.

• 30x zoom allows cameras to be positioned near the action or far away while still obtaining good clarity and close-ups of the subject
• HDBaseT Technology (HBT-11 Receiver Sold Separately) means only needing a single Ethernet cable to carry video, power, control and tally
• Digital noise reduction for beautiful smooth image quality, even in low lighting conditions
• Auto / Manual options for Iris Control and White Balance allows fine tuning for calibrating multiple cameras together
• Built-in Tally Lights that interface natively with Datavideo Switchers. (Red for Live / Green for up-next)
• RMC-180 Controller compatible

The camera features a motorized 30x optical zoom capability and its image mirror and image rotation functions allow you to electronically adjust the image and deliver a correctly orientated image. In addition to the basic camera functions, the PTC-150TL also uses an HBT-11 receiver box (sold separately) that allows the user to control the camera at a remote location with just one Ethernet cable. 50 programmable presets including pan, tilt and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote or an available PTZ controller.

For multi camera shoots, the built in tally light can identify active camera. The camera features a built in IR cut filter in the image path for low light shooting and then returns for daytime shooting. Also, PTC-150TL supports real time position report on a per frame basis; this is helpful in a virtual studio application. The camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ-45 port.
