Datavideo KMU-100 4K Multicamera Processor and RMC-185 KMU Controller Kit

SKU: DVKMU100C MFR: KMU-100C
Earn VIP Reward Points

Key Features

  • Create engaging broadcast content with this 4K multicamera processor and controller kit.
  • Enjoy versatile compatibility with multiple HD and UHD video formats for seamless production.
  • Use real-time streaming to deliver high video quality content directly to your audience.
  • The included controller offers easy setup and operation for efficient live video switching.
  • Connect multiple cameras effortlessly, enhancing your live production switcher capabilities.
  • Affordable price point for professional-grade video mixing and distribution solutions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Datavideo KMU-100C Specifications

  • Processor: SDI Video Input

    2x (1) - 10 bit HD, 3G levels A and B, 12G UHD switchable
    6x (2, 3, 4) - 10 bit HD, 3G levels A and B switchable; Usable as Quad SDI; 4x 3G SDI input for UHD

  • Processor: HDMI Video Input

    2x HDMI type A connector with support for 2160p60

  • Processor: SDI Video Output

    8x 10 bit SD, HD, 3G levels A and B switchable

  • Processor: HDMI Multiviewer Video Output

    2x HDMI type A connector with support for 1080p50/59.94/60

  • Processor: SDI Audio Input

    16 channels in HD, 3G HD, and UHD

  • Processor: SDI Audio Output

    16 channels in HD, 3G HD, and UHD

  • Processor: Multi Rate Support

    SDI connections are switchable between standard definition, high definition and UltraHD

  • Processor: Sync Input (Genlock)

    Blackburst or TriSync

  • Processor: Computer Interface

    Ethernet RJ45 for control, configuration and updates
    1x RS-232 input for controlling configuration

  • Processor: Software Control

    A dedicated software control utility application for changing settings via Windows 7, Windows 8, and Windows 10 is included free of charge

  • Processor: Power Supply

    Included external 12V / 5A power supply

  • Processor: Operating Temperature

    5 to 50 deg. C (41 to 122 deg. F)

  • Processor: Storage Temperature

    -20 to 45 deg. C (4 to 113 deg. F)

  • Processor: Relative Humidity

    0% to 90% non-condensing

  • Processor: SD Format

    Support

  • Processor: HD Format Support

    1.5Gb/s: 720p50
    720p59.94
    1080p25
    1080p29.97
    1080i50
    1080i59.94

    3Gb/s: 1080p50, 1080p59.94 and 1080p60 levels A and B

  • Processor: Ultra HD Format Support

    2160p25, 2160p29.97, 2160p50, 2160p59.94

  • Processor: SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE2082-1

  • Processor: Audio Sampling

    Television standard sample rate of 48kHz and 24-bit HD, 20-bit SD

  • Processor: Video Sampling

    4:2:2

  • Processor: Color Precision

    10-bit

  • Processor: Color Space

    REC 601, REC 709

  • Controller: Firmware Upgrade

    USB

  • Controller: Power

    DC 12V 0.5A

  • Controller: Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Controller: Humidity

    10% to 80%

  • Dimensions (WxHxD)

    310 x 129.98 x 170mm (12.20 x 5.12 x 6.69")

  • Weight

    1.5kg (3.31 lbs)

About Datavideo KMU-100C

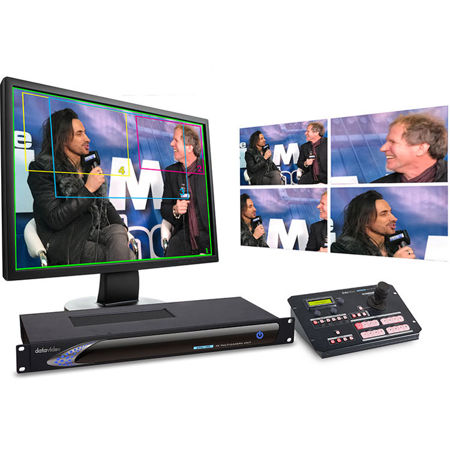

How can you elevate your video production to the next level The KMU-100C Bundle, featuring the KMU-100 4K Multicamera Processor and the RMC-185 KMU Controller Kit, offers an unparalleled 4K video production solution. This unique, state-of-the-art bundle from Datavideo provides multiple virtual full HD (up to 1080p) scaled camera angles, offering a cost-effective and straightforward operation for professional video production.

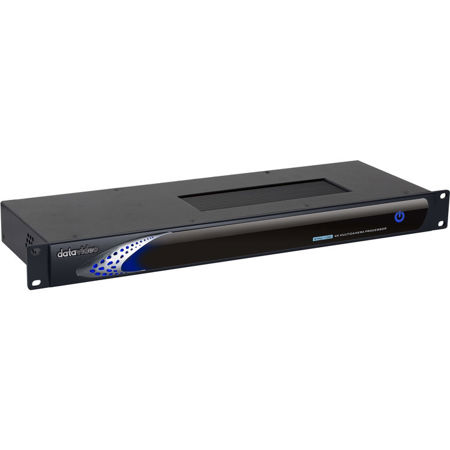

The KMU-100 4K Multicamera Processor is designed to connect to a single 4K/UHD camera output, displaying up to four 16x9 user-defined cropped windows. These windows are then transmitted as four separate HD signals through HD-SDI. This innovative feature allows you to zoom in and highlight specific subjects within the 4K signal, offering unparalleled control over your video production.

The KMU-100 4K Multicamera Processor is equipped with Quad SDI, 6G-SDI, or 12G-SDI and HDMI 2.0 Video Input with support for 2160p60. It also features 4x 3G-SDI for SDI Video Output and 2x HDMI 1.4 for monitoring. The processor supports SDI Audio Input and Output with 16 Channels each, and a Sync Input (Genlock) for Blackburst or TriSync. It also includes an Ethernet RJ45 interface for control configuration and updates, and an RS-232 / RS-422 interface for additional connectivity.

To enhance your control over the 4K signal, the bundle includes the Datavideo RMC-185 KMU Controller. This cost-effective, dedicated controller is designed specifically for the KMU series 4K Multi-Camera Processor. The RMC-185 interfaces with the KMU-100 via an RS-422 interface, allowing operators to smoothly pan, tilt, and zoom to create user-defined windows on the 4K signal.

The RMC-185 KMU Controller offers four presets for scale, position, motion path, and speed of all four individual 3Gb/s outputs per channel. It also features buttons for starting, stopping, and resetting motion at predefined speeds for each individual output. The controller's robust, rugged metal housing encases an LCD display showing setup menu options and three Multiviewer modes (Preview, A to B Motion, and Quad).

In summary, the KMU-100C Bundle, combining the KMU-100 4K Multicamera Processor and the RMC-185 KMU Controller Kit, offers a comprehensive and advanced solution for 4K video production. This bundle provides a unique, user-friendly approach to creating professional-quality video content, making it an essential tool for any video production setup.

Datavideo KMU-100C Features

  • Unique 4K video production solution with KMU-100 4K Multicamera Processor and RMC-185 KMU Controller Kit
  • Offers multiple virtual full HD (up to 1080p) scaled camera angles for detailed video production
  • User-defined cropped windows for personalized video output through HD-SDI
  • Equipped with Quad SDI, 6G-SDI, or 12G-SDI and HDMI 2.0 Video Input with support for 2160p60
  • RMC-185 KMU Controller for smooth pan, tilt, and zoom control on 4K signal
  • Robust, rugged metal housing with LCD display for easy setup and control

Key Features

  • Create engaging broadcast content with this 4K multicamera processor and controller kit.
  • Enjoy versatile compatibility with multiple HD and UHD video formats for seamless production.
  • Use real-time streaming to deliver high video quality content directly to your audience.
  • The included controller offers easy setup and operation for efficient live video switching.
  • Connect multiple cameras effortlessly, enhancing your live production switcher capabilities.
  • Affordable price point for professional-grade video mixing and distribution solutions.

What's in the box:

  • Datavideo KMU-100 4K Multicamera Processor
  • RMC-185 KMU Controller
  • AD Switch DC 12V with AC Cord
  • 4x Screw
  • DC 12V Power Adapter
  • D-Sub 9-Pin to RJ-45 Cable
  • Datavideo 3 Year Limited Warranty (1 Year + 2 Year with Registration)
