DVDO Matrix44 Specifications

  • Video Support

    4K50/60(4:2:0), 4K24/25/30, 1080p24/25/30/50/60, 1080i50/60, 720p50/60, 576i/p, 480i/p, common PC resolutions VGA, SVGA, XGA, SXGA

  • Audio Support

    DTS-HD, Dolby TrueHD, Dolby Digital+, Dolby Digital, DTS 5.1, LPCM 7.1, LPCM 5.2, PCM-2 32-192KHz

  • 3D Support

    Yes

  • Video Formats

    4:4:4, 4:2:2, 4:2:0, RGB, YCbCr, 8/10/12 bit

  • HDMI

    Compliant to 2.0

  • HDCP Version

    1.4

  • IR Receiver connector for Matrix Control

    Yes

  • Power Supply

    5V DC

  • EDID Management

    Yes

  • RS232 Serial control interface

    Yes

  • Locking Power Connector

    Yes (EU/UK/AUS available)

  • CEC

    No

  • Certifications and Compliance

    FCC, CE, RoHS

  • Field-upgradable Firmware

    Yes

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions

    17 x 10.5 x 1.75" (43.18 x 26.67 x 4.45cm)

  • Weight

    6.3lbs (2.86kg)

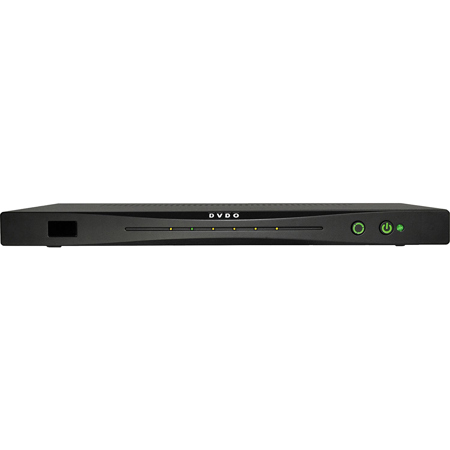

About DVDO Matrix44

DVDO Matrix44 is a 4K HDMI Matrix switcher supporting up to four inputs that transmits up to 4K (50/60Hz) Ultra HD or Full HD 1080p sources to four outputs. Designed for both home and commercial use, it provides intuitive control and fast switching for installers and home theater enthusiasts.

DVDO Matrix44 Features

  • 4K 50/60Hz (4:2:0)
  • Supports four HDMI 2.0 inputs and outputs
  • Supports 3DTV
  • RS232 Serial interface for control systems
  • Web GUI Setup
  • Supports up to Dolby TrueHD, DTS-HD MA
  • Direct IR control
  • Advanced EDID Management
  • Field-Upgradeable Firmware
  • Lockable Controls

What's in the box:

  • DVDO Matrix44 4K Ultra HD 4x4 Matrix Switcher
  • IR Remote
  • DVDO 1 Year Limited Warranty
