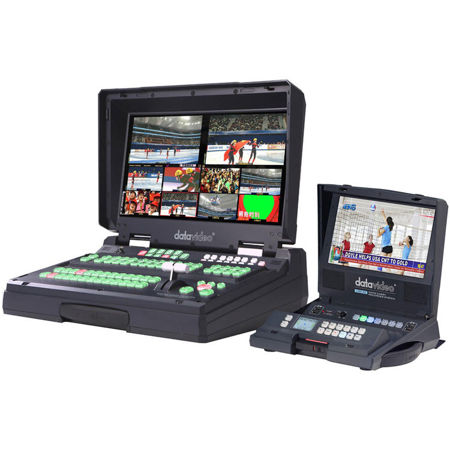

Datavideo MPB-2800 Mobile Broadcast Production Bundle, Includes HS-2800 Hand-Carry Portable Production Studio, HRS-30 Recorder with Built-in Confidence Monitor

The Mobile Broadcast Production Bundle combines an 8-input (12-input also available) mobile switcher with a built-in intercom system and one of Datavideo's most reliable video recorders into a package made specifically for broadcasting and/or recording at venues that require many cameras. If your aim is broadcast, this bundle is for you and it's priced at a much greater value compared to buying a switcher, intercom system and recorder individually.

HD/SD 8/12 Channel Mobile Video Studio
The HS-2800 is a cost effective 8 channel 10-bit broadcast-quality hand carry mobile switcher, which accepts 1920x1080i resolution. Featuring 8 digital inputs, it is designed for live events and TV programs that need to mix a variety of video and audio sources. The HS-2800 is a lightweight, portable and powerful featured mobile studio solution. As a complete AV package, the HS-2800 HD mobile studio enables users to switch seamlessly between video and audio sources and blend high-quality digital content on the fly. Advanced features include a 17.3-inch video monitor, which displays the multi-view. The Multi-view includes all the input sources, as well as preview and program.

The system is equipped with an eight way intercom system and is supplied with four belt packs, headsets and tally lights for effective communication among the whole production crew. The HS-2800 is ideal for TV and video professionals working in outside broadcast or on-the-go video studios, such as theatres or conference centers. The HS-2800 is also a great value solution for the worship, education and AV market.

• Supports 8 HD or SD inputs in a variety of configurations:
• HD Mode: 8 HD-SDI / 6 HD-SDI + 2 HDMI
• SD Mode: 8 SD-SDI / 4 SDI +2 HDMI
• Optional 4 CH Upgrade (to 12 CH)
• 2 SDI Outputs, which can be assigned to AUX, Program (PGM), Preview (PVW) or PGM clean - Built-in SD down-scaler on CH-3 SDI output
• 1 HDMI output for multi-view monitoring
• Audio I/O: Input: 4 analogue balanced XLR
• Output: 2 analogue balanced XLR. Supports embedded audio SDI output from 4-CH XLR Audio input
• Two DSK, supports Key and Fill
• Cut, Mix and Wipe with borders
• Clock on screen
• Countdown counter on multiscreen
• Two PIP displays with user-defined borders
• Audio Delay up to 16 fields or 8 frames
• Tally, GPI interface and RJ45 for firmware upgrade
• DC 12V operation voltage, available for mobile use

HD recorder and monitor in one
The HRS-30 is a portable recorder with an integrated 10.1" monitor that can be used as a field recorder and also a playback system. The HRS-30 records from both HD and SD video equipment via HD/SD-SDI and supports 1080i, 720p, 576i, 480i video formats, providing a choice of recording formats in MEPG-II Long-GOP or intra-frame (i-frame) with 4:2:2 color sampling. The recorded MXF/OP1A file format is compatible with a wide range of NLE and play out systems. Recorded files are stored to a removable caddy which is compatible with 2.5" HDD & SSD drives.

• Removable hard drive
• Support NTFS format, no 2GB/4GB file limitation
• HD/SD SDI input, output and loop thru with embedded audio
• HDMI output with embedded audio
• Video resolutions: 1920x1080 23.97p/24p; 1920x1080 50i/59.94i/60i; 1280x720 50P/59.94P/60P; 720x576i or 720x480i
• SD mode recording: Selectable 8,15,30 or 50 Mbps Long GOP 4:2:0 or 4:2:2; 100/125Mbps i-frame 8-bit 4:2:2
• Recording file formats: MXF/OP1A, MOV quick time
• V mount Battery and Anton Bauer battery support.
• Wide view angle color TFT LCD display for OSD operation
• 10.1" 16:9 monitor resolution: 1280 x 800 dots.
• 10.1" Dot pitch: 0.0565(W)x 0.1695(H)mm
• 10.1" monitor functions: Internal color bar; Blue only; Audio indicator; Safe area; Time code display; Color temperature adjustment; NTSC/PAL auto switching
• N.B. HRS-30 cannot charge the V-mount battery
