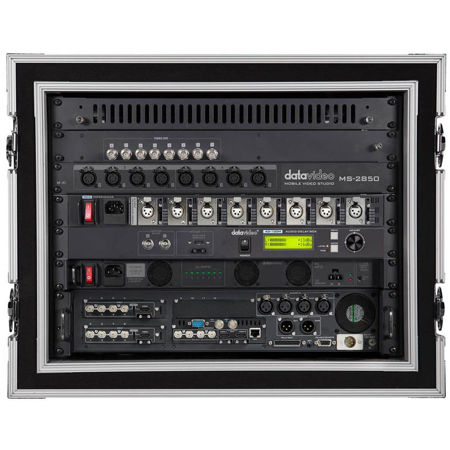

Datavideo MS-2850B Mobile Studio

MS-2850 HD/SD 8/12-Channel Mobile Video Studio
Datavideo MS-2850 HD/SD mobile video studio series is a ready to go solution. It is designed around the SE-2850 HD/SD 8-channel (upgradeable to 12 channels) broadcast- quality video switcher. It is perfect for outdoor events, conferences, education, places of worship and many more applications. Producing superb quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy to use effects, such as dual picture in picture, downstream keyer (DSK) and logo insertion.

• All-in-one solution: The MS-2850 series includes intercom, recorder, monitor and power supply. This mobile video studio is ideal for productions that require blending a variety of video and audio sources
• Complete Power System Integration: With a complete power system in the MS-2850 series, the producer can arrive on location, switch on and begin creating great live content. Set up, configuration and operation are fast and intuitive
• Up to 12 Channels Switcher: Great to use at live broadcast of events and news programs
• Mobile OB Van: The small form factor and portable rack unit suits outdoor live production and other applications really well

The switcher is integrated with the essential elements required for live production including a recorder, a multi-view monitor and an intercom system. MS-2850 B/D are equipped with the Datavideo VSM-100 Sampling Vector Scope Monitor which allows you to accurately analyze and calibrate video signals to ensure consistent video color and luminance levels.

SE-2850 HD/SD 8-Channel Digital Video Switcher
SE-2850 is a multi-definition switcher designed for productions requiring 12 channels of HD or SD inputs. Being one of Datavideo's most flexible switcher solutions, the SE-2850 is able to accept inputs in varying combinations of HD/SD SDI and HDMI. It is ready for every live production, giving producers the opportunity to output graphics with rich, visually appealing programming.

• Supports 12 HD or SD Inputs in a variety of configurations: HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI and SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI
• 6 user-defined output options on 4 SDI output channels
• User defined and positioned dual PIP
• Two downstream keyers (DSK) with a setup choice of basic Luma key or alpha channel
• Built-in title overlay system (TC-200) that works with entry level Datavideo CG systems
• Two independent LOGOS
• Frame Store (FS) source for each input channel
• Real-time clock featuring HH:MM:SS on the multi-screen
• Count down counter MM:SS
• User defined wipe buttons - choice of 17 wipes with optional border
• Audio delay for each de-embedded audio source
• Two Audio output modes (Selectable on OSD): "External analog Audio" - output SDI embedded audio is two stereo pairs from 4 analog audio inputs and "Audio Pass Through"- output SDI embedded audio is internal digital stereo pair
• Remote control over an Ethernet network using a supplied PC application running on Windows 7 Operating System or above
• Separate, rack mountable processing unit
• Two GPI modes: Level / Pulse trigger selectable

The SE-2850's audio functionality allows it to connect an external mixer for a complete sound control. The SE-2850 also features all channel audio de-embedding and audio delay and 4 dedicated XLR inputs. As an integrated Multimedia mixer, the SE-2850 can switch between up to 12 audio sources. In addition to producing superb 4:2:2 10 bit broadcast quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy-to-use effects, such as dual picture in picture (PIP), downstream keyer (DSK), logo insertion and built-in title overlay system for the entry level Datavideo CG systems.

HDR-70 HD/SD Digital Video Recorder
The Datavideo HDR-70 is a rack mountable hard drive based video recorder, with removable hard drive enclosure. The HDR-70 records from both High and Standard Definition video equipment via HD/SD-SDI. The HDR-70 comes with a removable hard drive enclosure. Additional enclosures are also available and the HDR-70 is compatible with SSD drives.

• Accidental Power-Off Protection - In the case of an accidental power-off, like a blackout, the recorded file will still be saved, minus 2 seconds at the end of the file
• NTFS - HDR-70 uses the NTFS file system
• On the Fly - Media files are made on the fly with the HDR-60
• Time Code - HDR-70 has time code input and output
• Gen-Lock - HDR-70 features gen-lock input and pass-through
• Locking Power Connector - Locking connectors keep the power plug securely attached
• Power-On Features - HDR-70 has Power-On Record and Power-On Play
• Time-lapse Recording - HDR-70 is able to do time-lapse recording
• Ref-In - HDR-70 has Ref-in/loop-through, Black Burst and Tri-level Signal

Once you have completed your recording, simply eject the hard drive enclosure and use USB 2.0 to connect to a PC or MAC based NLE system. The USB port provides power to the unit. It's perfect for use with laptops in the field. You can work directly from the removable drive or copy video files to your NLE's video drives.

VSM-100 Sampling Vector Scope Monitor
The VSM-100 combines a 2 x 4.3" HDMI/SDI Monitor with either 1 x VS-150 (2 x VS-150 for VSM-200). With HD/SD SDI inputs, it can test feeds in a large number of formats, from 576i and 720 50p to 1080i and 1080 25p. With HDMI outputs, it can be used with cost-effective HD monitors while its SDI ports can be set up as a loop-through as part of the production technology chain.

TLM-170LM 17.3" 3G-SDI FULL HD LCD Monitor - 1U Foldable Rackmount Tray Unit
The Datavideo TLM-170L monitor is designed for superior performance. Main applied in the Mobile system. Whether your application is in a live production gallery, 19'' rack monitoring, OB Van or a video editing suite, the TLM-170L will help you confidently monitor the pictures within your chosen workflow.

• Main applied in the Mobile system
• 1920x1080P Panel resolution
• Support 3G-SDI video input with loop-through output
• Support two HDMI inputs
• 1 Unit Space
• Foldable Rackmount Tray Unit
• Individual adjustments of Brightness, Contrast, Color Saturation and LED Backlight Level for each monitor
• Monitor Under scan and Over scan mode selection
• Color temperature for user to select
• Front panel Headphone Jacks
• Bi-color Tally light and 3.5mm Jack Tally input socket
• Safe area
• Blue Only
• Support embedded audio on SDI & HDMI (ver1.3)
• Zoom (HD only)
• USB for FW upgrade

ITC-100 Intercom System
In the production studio, good communication between the director, cameraman, lighting and control room is essential to produce a polished end result. The Datavideo ITC-100 Intercom System provides 8-Way talkback and tally indicators. The director can select to talk to an individual channel or to all channels simultaneously. The ITC-100 is a standard 19" 1U rack design, so it is easy to integrate into any rack system for using in the field or studio. ITC-100 includes 4 ITC-100SL Belt Packs.

• Industry Standard 19" 1U rack design, for easy integration
• Supports 8-Way Intercom
• Additional external earphone and microphone interface
• Bi-color tally light indicator
• Selectable channel talk, broadcast to all or mute.
• Half-Duplex design for ITC-100SL to eliminate the environmental noise
• Enables communication between the camera crew
• Communication distance up to 200 meters
• Supplied complete with Gooseneck Microphone and Light

AM-100 Audio Mixer
• 1U 19" rack mountable professional audio mixer
• Ultra compact 4 input + 2 AUX mixer featuring low noise, high-headroom design
• Four studio-grade Dynamic Range mic preamps
• Ultra -wide 60dB gain range
• 130dB dynamic range
• +22dBu line input handling
• Extended low-frequency response
• Distortion under 0.0007% (20Hz=20KHz)
• Phantom power for studio condenser mics
• Six high-headroom line inputs
• Advanced DC pulse transformer RF rejection
• 18 dB/ octave, 100Hz low-cut filter on mic input channels
• High resolution 8 segment stereo meters
• Supports both Line or Microphone with 48v Phantom power
• Fifth auxiliary channel can be used as line or for daisy chaining with other AM-100 (up to 12 channels)
• When used with SE-900 & MS-900 the AM-100 provides synchronized audio follow video using a 15-pin D-Sub connection

AD-100M Audio Delay Box with Microphone Input
Datavideo AD-100M is an easy-to-use audio delay box with 1 Microphone input that allows you to synchronize audio/Mic to video. The unit features RCA (phono) connector as well as XLR type connection. Built in a rugged metal housing for use in the field or studio.

• Audio Delay Box with Microphone Input
• LCD display for Menu and Mode selection setting
• Output volume attenuating from 0 - 60 dBu
• Audio delay time from 0 - 700m SEC
• 1KHZ test tone output attenuating from +26 - 34 dB
• DC 12V input

PD-6 Camera Power Center
PD-6 is a 19" rack mountable universal AC to DC Power Distribution Center, designed to supply steady and sequenced voltage for production kit whilst on location or in your studio. Perfect for use in conjunction with Datavideo
