Datavideo NVS-34 H.264 Dual Streaming Encoder and MP4 Recorder

SKU: DVNVS34

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Datavideo NVS-34 Specifications

  • Video Input

    1x HDMI
    1x SDI

  • Supported Video Input Resolution

    1080p 60/59.94/50
    1080p 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50
    480i 59.94, 576i 50

  • Audio Input

    SDI & HDMI embedded audio
    1 x RCA (audio level calibration: +10/+12dB - -6dB)

  • Encode

    H.264/AVC, Main/High Profile Level 4.1

  • Video Bitrate

    Record Only: Up to 16Mbps (1080p50/60)
    Stream Only: Up to 10Mbps (1080p50/60)
    Rec+Stream: 36Mbps (1080p50/60)

  • Video Rate Mode

    CBR

  • Audio Mode

    Stereo/Mono

  • Audio Bitrate

    Stereo: 64-384Kbps
    Mono: 32-192Kbps

  • Streaming Protocols

    TS over TCP/UDP (unicast & multicast)
    RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    RTMP/RTMPS (Publish)
    HLS
    SRT

  • Network Interface

    1x RJ45 (10/100Mbps Ethernet)

  • Recording File Format

    MP4

  • Storage

    1x SD Card (File System: NTFS, FAT, exFAT)

  • Special Feature

    Vertical video stream(rotate & crop)

  • Power Supply

    DC 12V 11W

  • Operating Temp. Range

    32 - 104 Degree F (0 - 40 Degree C)

  • Dimension (L x W x H)

    8.6 x 3.74 x 1.85" (220 x 95 x 47mm)

  • Weight

    24.69 oz (700g)

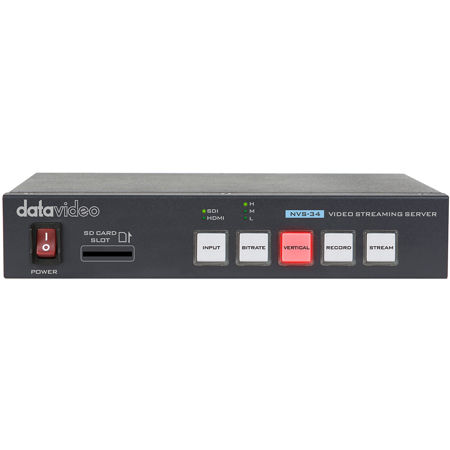

About Datavideo NVS-34

Dual video streaming server
The NVS-34 is an Dual H.264 multi-platform video streaming server, which offers two distinct bit rate options, for streaming and recording streaming simultaneously. Additionally, the NVS-34 supports vertical video streaming. The encoder accepts SDI and HDMI inputs, along with embedded or analog RCA unbalanced audio. The recording file system supports NTFS, FAT32 or exFat for continuous recording without file size limitations.

Supports dual streaming
NVS-34 can stream to multiple destinations at the same time. This means that you can send the stream to two streaming platforms as well as recording locally on an SD card.

Simultaneous H.264 streaming and recording
NVS-34 supports simultaneous recording in H.264 MP4 format while streaming in RTMPS, RTMP, RTSP, TS, or SRT.

SDI & HDMI Video Inputs with Stereo RCA
NVS-34 has SDI and HDMI inputs for video. For audio, it comes with a stereo RCA input.

Vertical streaming
Vertical video streaming for social media like Facebook and Twitch. Rotate and Central Crop is available.

Record on SD card
Easy to store. The NVS-34 can record MP4 or TS files to an SD card.

Remotely controlled by Windows or Mac
Remotely controlled using a mobile device with a web browser.

Supports FAT/NTFS file system
Recording to SD Card with either NTFS and FAT file system continuous recording without file size limitation.

Support SRT streaming protocol, no need to worry about unreliable network environment
Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility. Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently. It requires less bandwidth, and it solves data errors faster. As a result, your viewers will experience a better stream, with less buffering and pixelization. Want to learn more about what SRT can do for you? Please refer to related article: What exactly is SRT?

Build a reliable SRT live streaming workflow with all Datavideo products.
Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

Datavideo NVS-34 Features

  • H.264 simultaneous streaming and recording
  • H.264 live streaming to dual destinations
  • Supported File systems: FAT32/exFAT/NTFS, for continous recording without file size limitations
  • Selectable audio output: embedded audio/external audio/mixed audio
  • Multi-language Web UI (English/Traditional Chinese/Simplified Chinese)
  • LED status indicators
  • Vertical video encoding for mobile platform social media streaming
  • Compatible with all major streaming platforms
  • Compatible with RTMP(S), SRT and many other streaming protocols

Key Features

  • H.264 simultaneous streaming and recording
  • H.264 live streaming to dual destinations
  • Supported File systems: FAT32/exFAT/NTFS, for continous recording without file size limitations
  • Selectable audio output: embedded audio/external audio/mixed audio
  • Multi-language Web UI (English/Traditional Chinese/Simplified Chinese)
  • LED status indicators

What's in the box:

  • Datavideo NVS-34 H.264 Dual Streaming Encoder and MP4 Recorder
  • AD Switch DC 12V
  • Datavideo 1 Year Limited Warranty (Extended 3 Year Warranty with Registration)
