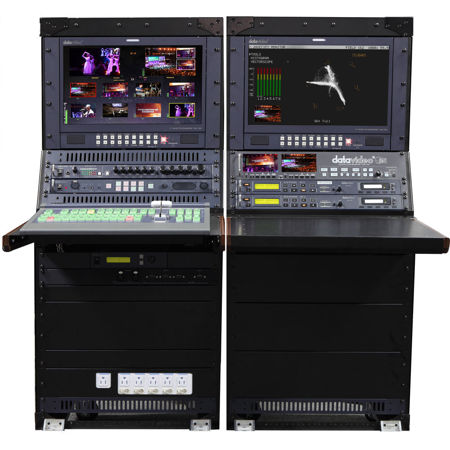

Datavideo OBV-2850A Mobile Studio

SE-2850 HD/SD 8-Channel Digital Video Switcher
SE-2850 is a multi-definition switcher designed for productions requiring 12 channels of HD or SD inputs. Being one of Datavideo's most flexible switcher solutions, the SE-2850 is able to accept inputs in varying combinations of HD/SD SDI and HDMI. It is ready for every live production, giving producers the opportunity to output graphics with rich, visually appealing programming.

• Supports 12 HD or SD Inputs in a variety of configurations: HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI and SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI
• 6 user-defined output options on 4 SDI output channels
• User defined and positioned dual PIP
• Two downstream keyers (DSK) with a setup choice of basic Luma key or alpha channel
• Built-in title overlay system (TC-200) that works with entry level Datavideo CG systems
• Two independent LOGOS
• Frame Store (FS) source for each input channel
• Real-time clock featuring HH:MM:SS on the multi-screen
• Count down counter MM:SS
• User defined wipe buttons - choice of 17 wipes with optional border
• Audio delay for each de-embedded audio source
• Two Audio output modes (Selectable on OSD): "External analog Audio" - output SDI embedded audio is two stereo pairs from 4 analog audio inputs and "Audio Pass Through"- output SDI embedded audio is internal digital stereo pair
• Remote control over an Ethernet network using a supplied PC application running on Windows 7 Operating System or above
• Separate, rack mountable processing unit
• Two GPI modes: Level / Pulse trigger selectable

The SE-2850's audio functionality allows it to connect an external mixer for a complete sound control. The SE-2850 also features all channel audio de-embedding and audio delay and 4 dedicated XLR inputs. As an integrated Multimedia mixer, the SE-2850 can switch between up to 12 audio sources. In addition to producing superb 4:2:2 10 bit broadcast quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy-to-use effects, such as dual picture in picture (PIP), downstream keyer (DSK), logo insertion and built-in title overlay system for the entry level Datavideo CG systems.

HDR-70 HD/SD Digital Video Recorder
The Datavideo HDR-70 is a rack mountable hard drive based video recorder, with removable hard drive enclosure. The HDR-70 records from both High and Standard Definition video equipment via HD/SD-SDI. The HDR-70 comes with a removable hard drive enclosure. Additional enclosures are also available and the HDR-70 is compatible with SSD drives.

• Accidental Power-Off Protection - In the case of an accidental power-off, like a blackout, the recorded file will still be saved, minus 2 seconds at the end of the file
• NTFS - HDR-70 uses the NTFS file system
• On the Fly - Media files are made on the fly with the HDR-60
• Time Code - HDR-70 has time code input and output
• Gen-Lock - HDR-70 features gen-lock input and pass-through
• Locking Power Connector - Locking connectors keep the power plug securely attached
• Power-On Features - HDR-70 has Power-On Record and Power-On Play
• Time-lapse Recording - HDR-70 is able to do time-lapse recording
• Ref-In - HDR-70 has Ref-in/loop-through, Black Burst and Tri-level Signal

Once you have completed your recording, simply eject the hard drive enclosure and use USB 2.0 to connect to a PC or MAC based NLE system. The USB port provides power to the unit. It's perfect for use with laptops in the field. You can work directly from the removable drive or copy video files to your NLE's video drives.

TLM-170LR 17.3" 3G-SDI FULL HD LCD Monitor - 7U Rackmount Unit
The Datavideo TLM-170L monitor is designed for superior performance. Main applied in the Mobile system. Whether your application is in a live production gallery, 19'' rack monitoring, OB Van or a video editing suite, the TLM-170L will help you confidently monitor the pictures within your chosen workflow.

• 1920x1080P Panel resolution
• Support 3G-SDI video input with loop-through output
• Support two HDMI inputs
• Individual adjustments of Brightness, Contrast, Color Saturation and LED Backlight Level for each monitor
• Monitor Under scan and Over scan mode selection
• Color temperature for user to select
• Front panel Headphone Jacks
• Bi-color Tally light and 3.5mm Jack Tally input socket
• Safe area
• Blue Only
• Support embedded audio on SDI & HDMI (ver1.3)
• Zoom (HD only)
• USB for FW upgrade

VSM-100 Sampling Vector Scope Monitor
The VSM-100 combines a 2 x 4.3" HDMI/SDI Monitor with either 1 x VS-150 (2 x VS-150 for VSM-200). With HD/SD SDI inputs, it can test feeds in a large number of formats, from 576i and 720 50p to 1080i and 1080 25p. With HDMI outputs, it can be used with cost-effective HD monitors while its SDI ports can be set up as a loop-through as part of the production technology chain.

NVS-25 H.264 Video Streaming Server / Recorder
NVS-25 is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. From any HDMI / SDI / CVBS input source such as a camera or switcher, NVS-25 generates an H.264-encoded stream compliant with RTSP / RTMP / HLS protocols.

NVS-25 can be used in recording mode to record an MP4 or .TS file to a USB storage device and it can be used in encoding mode to generate an H.264 stream. NVS-25 is remotely controlled using Windows / Apple PC or mobile device with a web browser. Flexible mechanism design for desktop application or 1U rack mount application. Firmware update 10th of March 2016: General performance improvements & YouTube recording bugfix.

• Broadcast quality HD / SD H.264 network streaming
• H.264 / AVC video CODEC, up to High Profile Level 4.0
• Maximum bitrate: 6 Mbit
• Input source: NVS-25 can accept SDI / HDMI / CVBS source input
• Supports de-interlace video streaming for progressive output
• Front panel control for recording and streaming
• Audio inputs: select embedded or external audio source
• Network feature: DHCP Client, RTSP over TCP/UDP/HTTP with MPEG TS. RTMP, HLS protocols (unicast only)
• Flexible video scaler presets for streaming out
• Supports 3 types of GOP structure: IBBP, IPPP and IBP
• Web UI for system configuration and FW upgrade
• Attach USB storage device (Up to 1TB storage device)

AD-200 6-Channel Audio Delay/Mixer with Level Adjustment
Datavideo AD-200 is an integration of 6-Channel audio delay with a matrix mapping function of 4-Channel outputs Audio Mixer, a combination design with front panel and main unit, 2 separate parts by 1RU rack mount design which can be easily installed to OB Van or customized rack.

• 4-CH balanced audio inputs, 2-CH AUX inputs selectable of Mic/Line level
• 4-CH balanced audio outputs, 2-CH unbalanced-audio outputs
• Support up to 3sec audio delay adjustment for each input channel
• Audio level adjustment of each input
• 6-CH Audio mixer and matrix router to 4-CH audio outputs

ITC-100 Intercom System
In the production studio, good communication between the director, cameraman, lighting and control room is essential to produce a polished end result. The Datavideo ITC-100 Intercom System provides 8-Way talkback and tally indicators. The director can select to talk to an individual channel or to all channels simultaneously. The ITC-100 is a standard 19" 1U rack design, so it is easy to integrate into any rack system for using in the field or studio. ITC-100 includes 4 ITC-100SL Belt Packs.

• Industry Standard 19" 1U rack design, for easy integration
• Supports 8-Way Intercom
• Additional external earphone and microphone interface
• Bi-color tally light indicator
• Selectable channel talk, broadcast to all or mute.
• Half-Duplex design for ITC-100SL to eliminate the environmental noise
• Enables communication between the camera crew
• Communication distance up to 200 meters
• Supplied complete with Gooseneck Microphone and Light

VP-445 HD/SD-SDI Distribution Amplifier
• 1 input to 4 Output HD/SD SDI Distribution Amplifier (no scaling)
• HD/SD SDI Connections
• Low Power Consumption
• Metal Case

VP-633 100m SDI Repeater (Powered)
• Extend the capabilities of SDI cables
• Up to 4 SDI Repeaters (1 x VP-633 plus 3 x VP-634) can be used in one chain, allowing runs of up to 1000m with good quality SDI cable
• VP-633 can repeat SDI signal up to a further 200m (SDI Cable dependent, 3G 100m max between repeaters)
• Add up to 3 x unpowered VP-634 for each additional 200m required (SDI Cable dependent)
• 12v DC PSU Supplied
• 3G, HD & SD-SDI Support

PD-2A Power Center
• 400 watt rated power supply (compared with PD-1's 300W)
• Input connections: AC: 100-240V AC Max 6.3 A, 50Hz or 60HZ and DC: 12V 400W
• Output connections: 4x 12V DC 3A XLR; 2x 12V DC 5A XLR and 2x 12V DC 10A XLR
• Combine up-to 10 mains power supplies into a single convenient power connection
