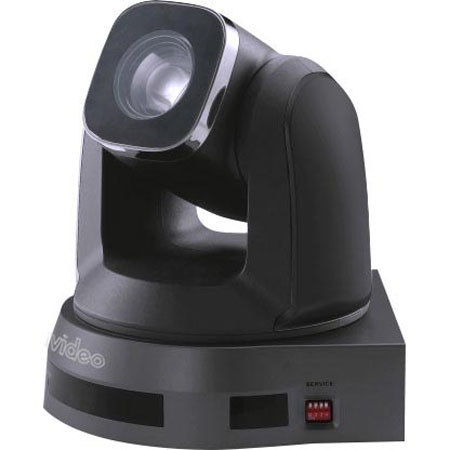

Datavideo PTC-120 Full HD Remote PTZ Camera, 22x Optical Zoom

The Datavideo PTC-120 HD/SD Video Camera is a PTZ camera that can be mounted on a wall, ceiling, floor or a tabletop and comes with an IR remote control.

The camera is equipped with

· 1/2.8 inch image sensor
· Full HD-1080p output resolution
· High dynamic image of up to 60 frames per second
· Superior 20x optical zoom lens
· Excellent white balance

Its exposure mode delivers a clear image even in a low light environment or under conditions of extreme light and dark contrast in a conference room. The camera covers a wide shooting angle and utilizes the high efficiency servo controlled DC motor to achieve instantaneous, quiet and precise positioning, as well as smooth PTZ operations. PTC-120 supports 3G-SDI, DVI, component and Composite Video interfaces to allow four simultaneous image outputs. PTC-120 is compatible with all video equipment with up to 128 preset settings. A dedicated remote control is available. PTC-120 delivers a continuous, clear and vivid live image without any distortions. It is ideally suited for lecture recording, video conferencing and stage performance.

Features

· HD Resolution: 1/2.8" High Definition 2.0 M Pixels CMOS sensor
· 20x optical zoom; 12x digital zoom
· High definition formats supported: 1080/60p, 1080/50p, 1080/60i, 1080/50i, 1080/30p, 1080/25p, 720/60p, 720/50p, 720/30p, 720/25p
· 240 times variable zoom ratio (20x optical zoom with 12x digital zoom)
· Maximum horizontal/vertical speed of rotation: 300 degrees/sec
· Delivers a fast response with an extremely clear image
· Video Output: Simultaneous 3G-SDI, DVI, Component and CVBS image outputs
· SONY VISCA Protocol Keyboard supported.

System Configuration
The PTC-120 PTZ Color Video Camera can be set up in various system configurations. This section describes how PTC-120 can be connected as a standalone device as well as cascade connection of multiple cameras.
