Datavideo PTC-140 HD/SD-SDI and HDMI 20x PTZ Camera, Black
【Official】Top 4 Features of PTC-140 HD PTZ Camera｜Datavideo
Datavideo PTC-140: Picture 1 thumbnail
See all Datavideo items
Top Rated Gear

Datavideo PTC-140 HD/SD-SDI and HDMI 20x PTZ Camera, Black

SKU: DVPTC140 MFR: PTC-140
(1)Ask a Question
$999.00
OR
$84/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the Datavideo PTZ camera's 20x optical zoom.
  • Enjoy flexible video output with both HDMI and SDI connections on this PTZ camera.
  • Experience superior low-light performance, capturing clear video even in dim settings.
  • Remotely control pan, tilt, and zoom for dynamic, broadcast-quality video production.
  • Stream live events directly with H.264/H.265 compression for efficient bandwidth use.
  • Easily integrate into existing systems with versatile VISCA, Pelco-D & Pelco-P protocols.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?HENRY C : Heard nothing but good reviews about this controller.....SANTHOSH A : love itSANTHOSH A : for the video production services

Reviews about this item

Review Summary

2021-05-19T13:19:41

Rated 5 out of 5

THE RIGHT CHOICE!!

This camera is by far the best camera I have used for streaming. The picture on the TV's are VERY CLEAR.

HENRY C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Datavideo PTC-140 Specifications

  • Color

    Black

  • Video Format

    1080p 60/59.94/50/30/29.97/25
    1080i 60/59.94/50
    720p 60/59.94/50

  • Image Sensor

    1/2.8 inch high quality HD CMOS sensor

  • Effective Pixels (approx.)

    2.07 Mega pixels

  • S/N Ratio

    >55dB

  • Min. Illumination

    0.5Lux (F1.8, AGC ON)

  • Electronic Shutter

    Auto / Manual

  • Zoom Ratio

    20x Optical Zoom, 10x Digital Zoom

  • Gamma Control

    Off / Normal

  • Iris Control

    Auto / Manual

  • Digital Noise Reductions

    Yes

  • On-Screen Display (OSD)

    English, Simplified Chinese

  • White Balance

    Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K

  • AGC/Gain Control

    Auto / Manual

  • Mirror / Flip Image

    Yes

  • Focus Mode

    Auto / Manual

  • Panning / Tilting Range

    Pan: 340 Degree , Tilt: +90 Degree to -30 Degree

  • Panning / Tilting Speed

    Pan: 0.1-60 Degree /sec
    Tilt: 0.1-30 Degree /sec

  • Preset

    255 Position

  • Focal Length

    f=5.2 (wide) to 98 (tele) mm
    F1.6 to F3.5

  • Field of View (Horizontal, Wide)

    Approx. 54.7 Degree (WIDE END) / 3.3 Degree (TELE END)

  • Image Compensation

    Backlight Compensation

  • Video Output

    HDMI x 1
    SDI x 1

  • Audio Input

    3.5mm Line in

  • Tally LED

    Dual color (Red, Green)

  • Filter

    M52.0 x 0.75 Thread with UV Protection

  • Protocol

    VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps
    DVIP

  • Remote Control

    RJ-45: for IP control (DVIP)
    RS-232: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
    RS-485 (Interface/Transmit Distance)

  • Video Compression Format

    H.264, H.265, Dual stream output

  • Audio Compression Format

    AAC/MP3/G.711A Audio compression

  • HD IP Interface

    100M IP port(100BASE-TX); Support DVIP

  • Network Protocol

    RTSP, RTMP

  • F/W Update

    Ethernet

  • IR Control

    Yes

  • Camera Control Unit

    RMC-180

  • Tripod Mount

    1/4-20 UNC

  • Operating Temp. Range

    32 to 104 Degree F (0 to 40 Degree C)

  • Power

    DC 12V 12W

  • Dimensions (L x W x H)

    6.14 x 7.16 x 7.3" (156 x 182 x 186mm)

  • Weight

    3.5 lbs (1.6kg)

  • UPC Code

    672255008256

About Datavideo PTC-140

FEATURED REVIEWS

THE RIGHT CHOICE!!

By HENRY C.

This camera is by far the best camera I have used for streaming. The picture on the TV's are VERY CLEAR.

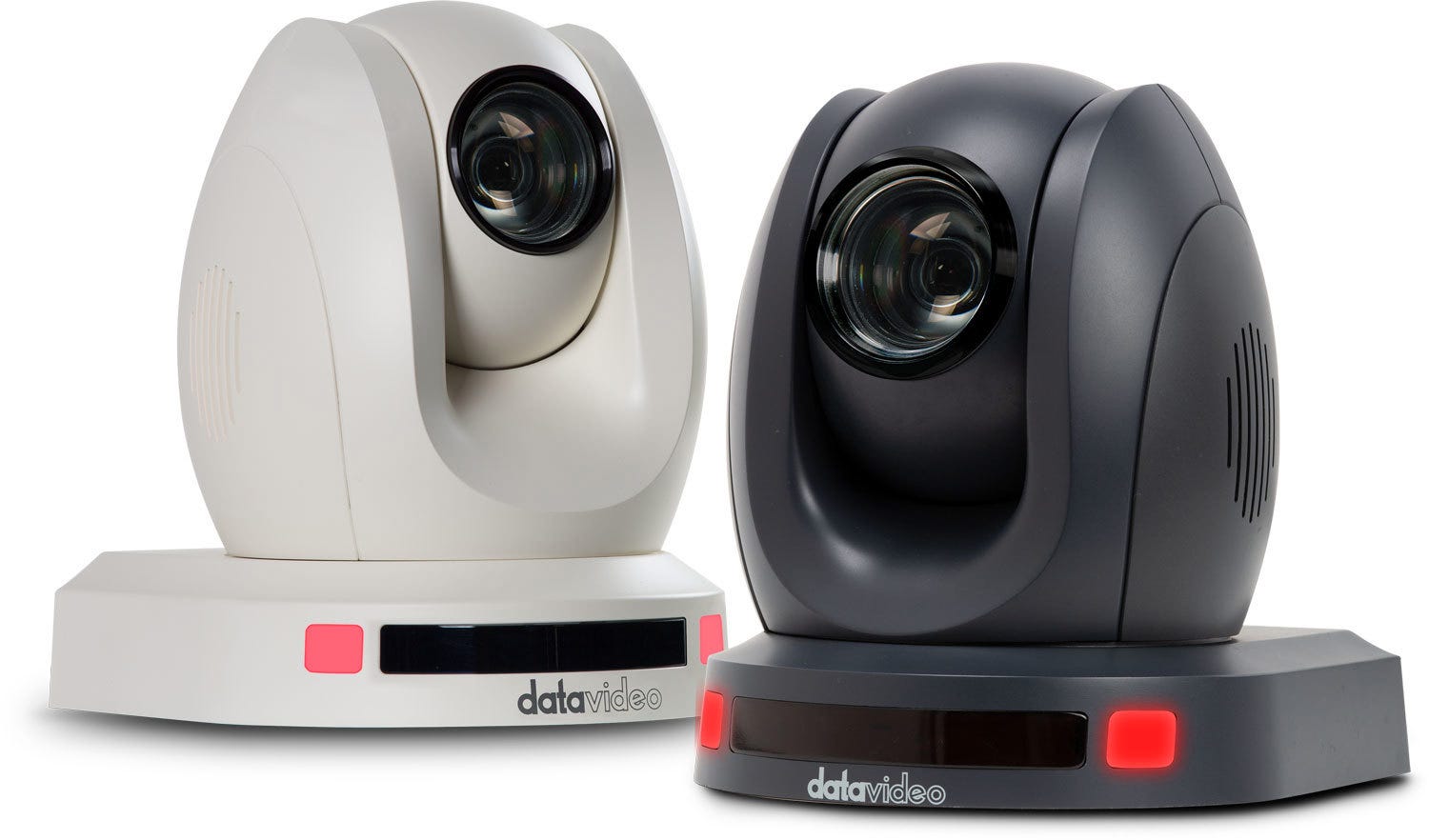

HD PTC Camera.

HD PTC Camera.

Stunning Full HD Resolution.
The PTC-140 features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

Advanced 2D/3D Noise Reduction Function.

Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image.

Advanced 2D/3D Noise Reduction Function.

H.264/H.265 Video Streaming For Compression.

With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.

H.264/H.265 Video Streaming For Compression.

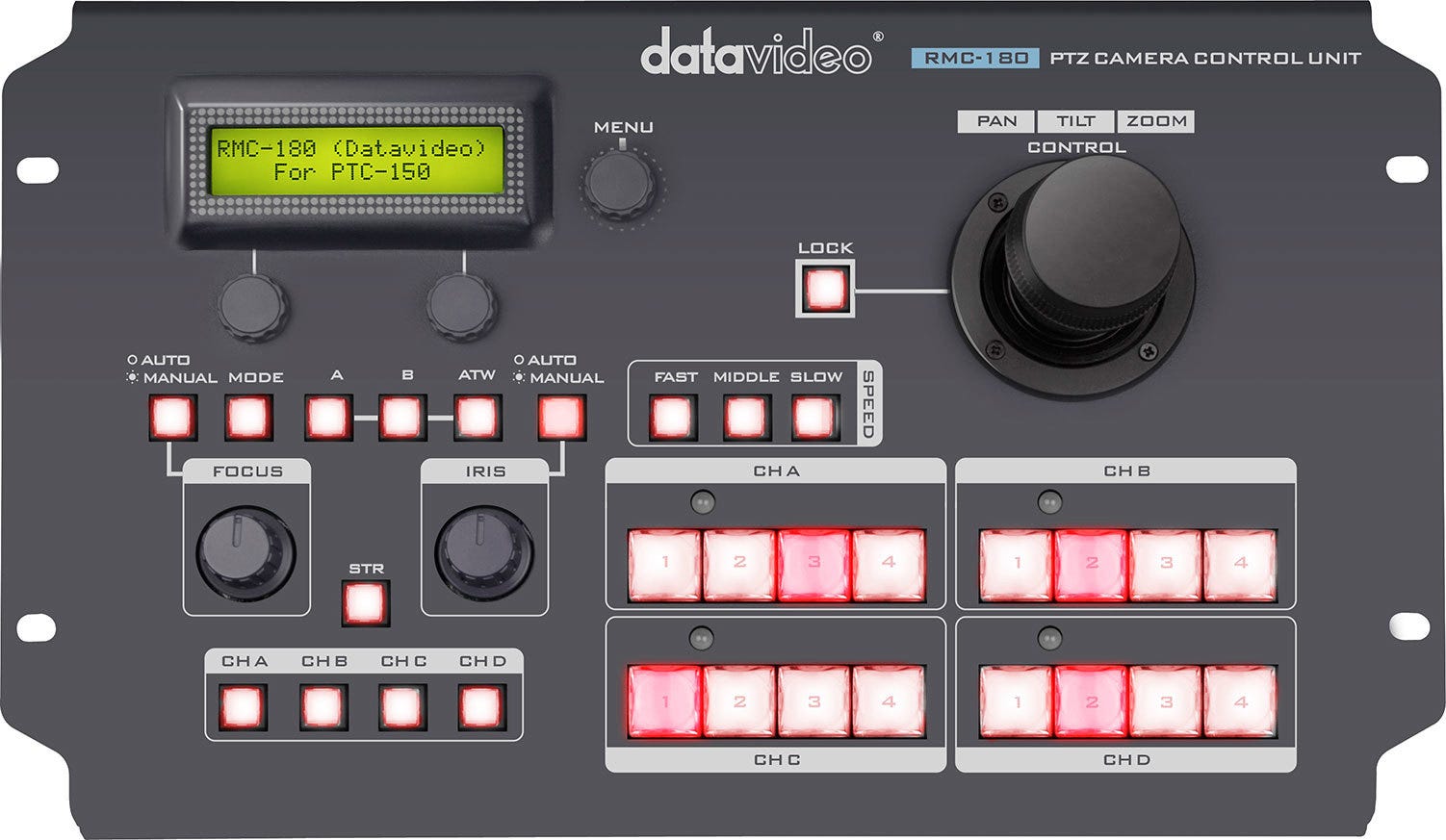

Single Multi-Camera Control At Your Fingertips.

Single Multi-Camera Control At Your Fingertips.

With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-140 cameras for any live video production.

Remote Control & Preview By Web User Interface.

Remote Control & Preview By Web User Interface.

The web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.

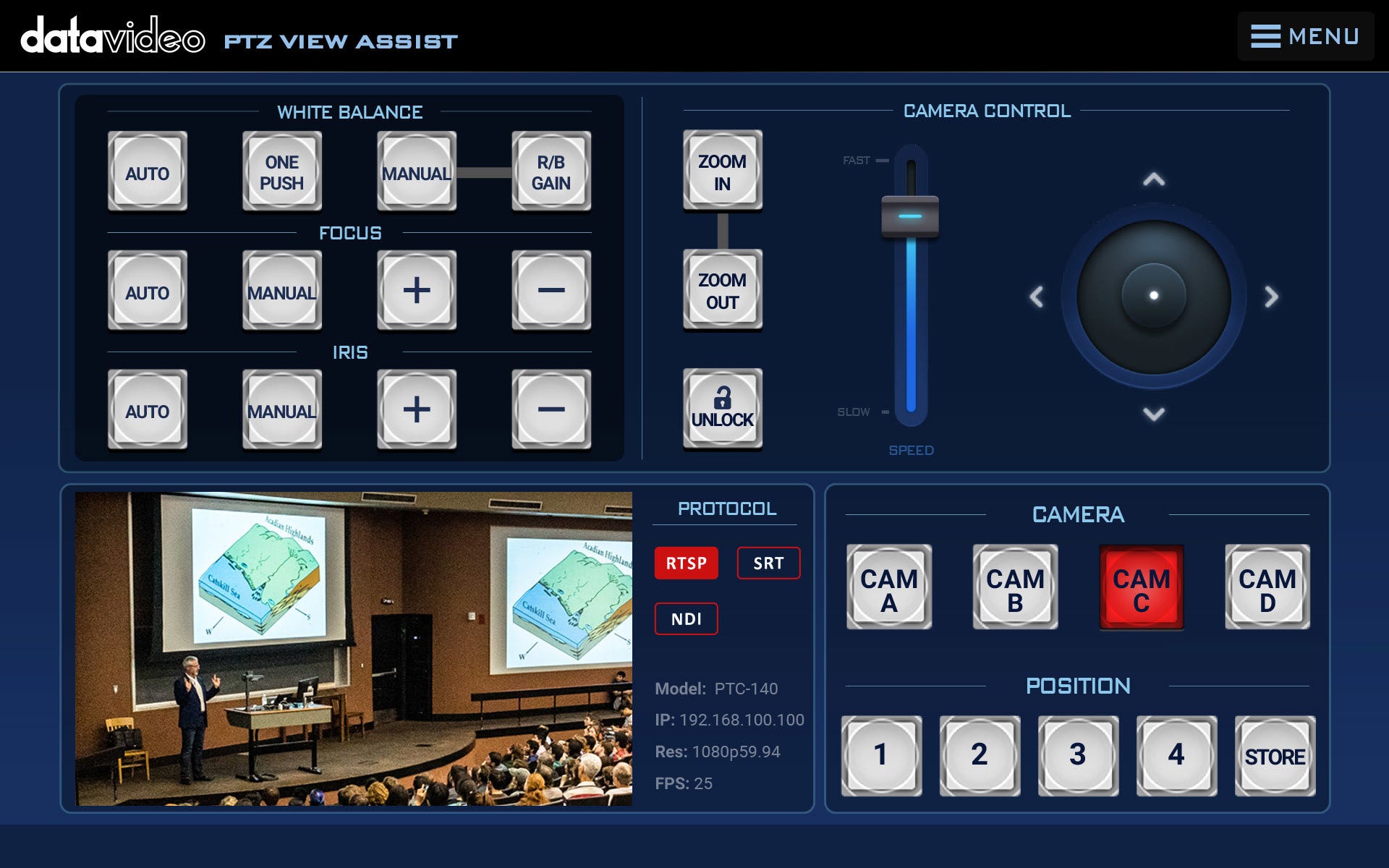

Free PTV View Assist App.

Control up to four cameras with your Wireless Touch Screen. It can monitor the live streaming video from PTC-140 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and IRIS.

Free PTV View Assist App.

Features.

  • Stunning Full HD resolution
  • 20x Optical Zoom, 10x Digital Zoom
  • Advanced 2D/3D noise reduction function
  • H.264/H.265 video compression for streaming
  • Simple multi-camera control at your fingertips
  • Remote control and preview by web user interface

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the Datavideo PTZ camera's 20x optical zoom.
  • Enjoy flexible video output with both HDMI and SDI connections on this PTZ camera.
  • Experience superior low-light performance, capturing clear video even in dim settings.
  • Remotely control pan, tilt, and zoom for dynamic, broadcast-quality video production.
  • Stream live events directly with H.264/H.265 compression for efficient bandwidth use.
  • Easily integrate into existing systems with versatile VISCA, Pelco-D & Pelco-P protocols.

What's in the box:

  • Datavideo HD/SD-SDI and HDMI 20x PTZ Camera (Black)
  • IR Remote Controller
  • Ceiling Mount Bracket-A
  • Ceiling Mount Bracket-B
  • 6x Ceiling Mount Bracket Screw M3x4mm
  • DC 12V Power Adaptor
  • Power Cord
  • A Tightrope
  • Datavideo 3 Year Limited Warranty (1 Year + 2 Year with Registration)
