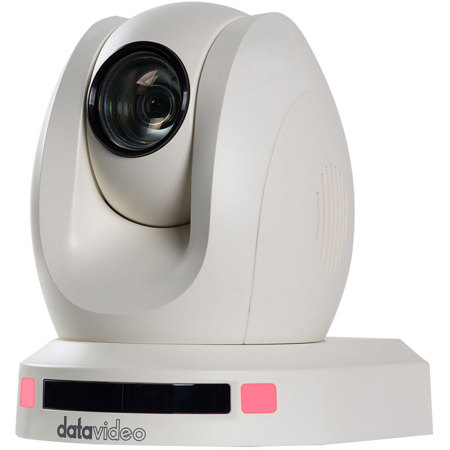

Datavideo PTC-140T Full HD HDBaseT 20x PTZ Camera, White

SKU: DVPTC140TW MFR: PTC-140TW
Earn VIP Reward Points

Key Features

  • Capture stunning Full HD video with the PTC-140T PTZ camera's high-quality CMOS sensor.
  • Experience smooth, precise control with 20x optical zoom, perfect for live streaming events.
  • Easily integrate this PTZ camera via HDBaseT for video, audio, and control over a single cable.
  • Achieve professional audio with line-in support, ensuring clear sound for your video productions.
  • Use the wide pan and tilt range for complete coverage in classrooms, studios, or conference rooms.
  • Remotely manage camera settings via IP, RS-232, or IR, streamlining your workflow and setup.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Datavideo PTC-140T Specifications

  • Color

    White

  • Video format

    1080p 60/59.94/50/30/29.97/25
    1080i 60/59.94/50
    720p 60/59.94/50

  • Image Sensor

    1/2.8" high quality HD CMOS sensor

  • Effective Pixels

    2.07 Mega pixels (approx.)

  • S/N Ratio

    >55dB

  • Min. Illumination

    0.5Lux (F1.8, AGC ON)

  • Electronic Shutter

    Auto / Manual

  • Zoom Ratio

    20x Optical Zoom, 10x Digital Zoom

  • Gamma Control

    Off / Normal

  • Iris Control

    Auto / Manual

  • Digital Noise Reductions

    Yes

  • On-Screen Display (OSD)

    English, Simplified Chinese

  • White Balance

    Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K

  • AGC / Gain Control

    Auto / Manual

  • Mirror / Flip Image

    Yes

  • Focus Mode

    Auto / Manual

  • Panning / Tilting Range

    Pan: 340 Degree , Tilt: +90 Degree to -30 Degree

  • Panning / Tilting Speed

    Pan: 0.1-60 Degree /sec
    Tilt: 0.1-30 Degree /sec

  • Preset

    255 Position

  • Focal Length

    f=5.2 (wide) to 98 (tele) mm
    F1.6 to F3.5

  • Field of View (Horizontal, Wide)

    Approx. 54.7 Degree (WIDE END) / 3.3 Degree (TELE END)

  • Image Compensation

    Backlight Compensation

  • Video Output

    HDBaseT (PoE) x1
    RJ-45 x1

  • Audio Input

    Line In (IP Stream Output)

  • Tally LED

    Dual color (Red, Green)

  • Filter

    M52.0 x 0.75 Thread with UV Protection

  • Protocol

    VISCA, DVIP

  • Remote Control Interface

    RS-232
    Lan (RJ-45)
    HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m (Transmit Distance)

  • Video Compression Format

    H.264, H.265, Dual stream output

  • Audio Compression Format

    AAC/MP3/PCM Audio compression

  • HD IP Interface

    100M IP port(100BASE-TX); Support DVIP

  • Network Protocol

    RTSP, RTMP

  • F/W Update

    Ethernet

  • IR Control

    Yes

  • Camera Control Unit

    HS-1500T/HS-1600T/RMC-180/RMC-300C

  • Tripod Mount

    1/4-20 UNC

  • Options

    WM-1

  • Operating Temp. Range

    32-104 Degree F (0-40 Degree C)

  • Power

    DC 12V 12W

  • Dimension (L x W x H)

    6.14 x 7.16 x 7.32" (156 x 182 x 186mm)

  • Weight

    3.5 lbs. (1.6kg)

  • UPC Code

    672255008249

About Datavideo PTC-140T

A marvel of modern technology, the PTC-140T Full HD HDBaseT 20x PTZ Camera in white delivers stunning visuals with its 1/2.8 inch CMOS sensor and 1920x1080px Full HD resolution at a smooth 60 frames per second. This advanced camera offers a powerful 20x optical zoom and 10x digital zoom, ensuring sharp, high-quality shots whether mounted close or at a distance.

Leveraging the power of HDBaseT technology, the PTC-140T simplifies your setup with single cable transmission. All signals, power, and control data are transmitted through a single CAT6 network cable, allowing for a transmission distance of up to 100 meters when paired with the Receiver Box.

The PTC-140T also features an advanced 2D/3D noise reduction function, ensuring clear and smooth images even in challenging lighting conditions. With its built-in streaming encoder, the camera supports H.264/H.265 video compression for streaming, capable of encoding up to 2 simultaneous streams to any cloud service.

For multi-camera control, the PTC-140T works seamlessly with the RMC-180's ergonomic joystick and tactile button layout, allowing easy setup and control of up to four Datavideo PTC-140T cameras for live video production. For larger setups, the RMC-300C can control up to 24 PTC-140T cameras when used with an iPad or Android tablet.

The PTC-140T is also fully compatible with Datavideo's DVCloud service. This subscription service allows you to send your stream to multiple destinations simultaneously without the need for multiple hardware encoders. Additionally, you can record your production on the DVCloud platform in h.264 format, and directly upload this recording to your preferred content platform. Experience the future of video production with the PTC-140T Full HD HDBaseT 20x PTZ Camera.

Datavideo PTC-140T Features

  • Stunning Full HD resolution
  • 20x Optical Zoom, 10x Digital Zoom
  • Single cable transmission by HDBaseT technology
  • Advanced 2D/3D noise reduction function
  • H.264/H.265 video compression for streaming
  • Simple multi-camera control at your fingertips
  • RMC-300C can control up to 24 PTC-140T cameras
  • Seamlessly compatible with DVCloud

Product Documents

User Manual

Key Features

  • Capture stunning Full HD video with the PTC-140T PTZ camera's high-quality CMOS sensor.
  • Experience smooth, precise control with 20x optical zoom, perfect for live streaming events.
  • Easily integrate this PTZ camera via HDBaseT for video, audio, and control over a single cable.
  • Achieve professional audio with line-in support, ensuring clear sound for your video productions.
  • Use the wide pan and tilt range for complete coverage in classrooms, studios, or conference rooms.
  • Remotely manage camera settings via IP, RS-232, or IR, streamlining your workflow and setup.

What's in the box:

  • Datavideo PTC-140T 2.07MP HDBaseT PTZ Camera
  • IR Remote Controller
  • Ceiling Mount Bracket-A
  • Ceiling Mount Bracket-B
  • 6x Ceiling Mount Bracket Screw M3x4mm
  • UV Filter
  • DC 12V Power Adapter
  • Power Cord
  • A Braided Safety Cable
  • RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
  • Datavideo 1 Year Limited Warranty
