Datavideo PTC-150 Full HD Outdoor/Indoor Day & Night HD/SD Video 30x PTZ Camera, White

SKU: DVPTC150W MFR: PTC-150W
Earn VIP Reward Points

Key Features

  • Capture crystal-clear video with the Datavideo PTZ camera's impressive 30x optical zoom.
  • Enjoy flexible connectivity with HDMI, HD-SDI, and CVBS outputs on this versatile PTZ camera.
  • Excellent low-light performance ensures clear video, even in challenging lighting conditions.
  • Remotely control pan, tilt, and zoom functions for dynamic video capture in any environment.
  • Perfect for live streaming, broadcasting, or security, this PTZ camera offers multiple uses.
  • Easily install this PTZ camera indoors or outdoors with included mounting brackets for convenience.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Datavideo PTC-150 Specifications

  • Image Pickup Element

    1/2.8" Type Progressive Scan CMOS Sensor

  • Effective Picture Elements

    Approx. 2.14 Mega Pixels

  • Resolution

    HD / FHD / SD (CVBS Only)

  • Signal System

    HDMI & SDI: 1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p, 1080/50p, 1080/50i, 1080/25p, 720/50p
    CVBS: 480i, 576i

  • S/N Ratio

    50dB

  • Min. Illumination

    Color : 0.4 Lx (F1.6, 1/30 Sec, 50IRE, Gain: High)
    B/W : 0.03 Lx (F1.6, 1/30 Sec, 50IRE, Gain: High)

  • Electric Shutter

    1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000 Sec

  • Gamma Control

    Off / Normal / Standard Mode 1-4

  • Iris Control

    Auto / Manual

  • Digital Noise Reductions

    0 - 5

  • On-Screen Display (OSD

    English

  • White Balance

    AWB / MWB / One Push WB / Outdoor / Indoor / Fluorescent

  • AGC / Gain Control

    Auto / Manual (0 To 39 Step)
    Max. Gain Limit (9 To 39 Step)

  • Zoom Ratio

    30x Optical Zoom

  • Mirror

    OFF / Horizontal / Vertical / H+V

  • Camera Title (OSD)

    ON / OFF

  • Color Bar

    On / Off (Full Bar)

  • Focus Mode

    Auto / Manual

  • Day & Night (IR)

    Auto / Color / BW

  • Pan/Tilt Range

    Pan: 270 deg. , Tilt: +90 to -20 deg.

  • Pan/Tilt Speed

    Manual: 1 to 150deg/Sec
    Swing: 1 to 150deg/Sec

  • Initialization Time

    30 Sec

  • Coordinate Report

    P, T, Z (While Panning , Tilting And Zooming ) By Frame

  • Lens Type

    30x Optical Zoom

  • Focal Length

    F=4.3mm / 0.16" (WIDE) To 129mm/ 5.07 (TELE) F1.6 to F4.7

  • Angle Of View (Horizontal)

    Approx. 63.7 degrees (WIDE END) / 2.3 degrees (TELE END)

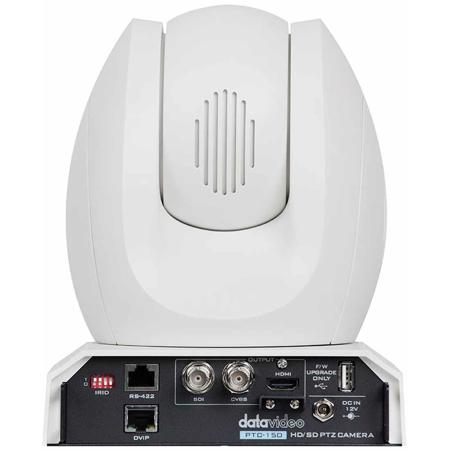

  • Video Output

    1x HDMI (V1.3)
    1x HD-SD-SDI
    1x CVBS

  • Video Format Output

    1 Vp-P / 75Ohms

  • Protocol

    VISCA / DVIP

  • Remote Control

    RS-422 & DVIP By RJ-45 Interface

  • Baud Rate

    38,400 bps (or more)

  • Remote Controller

    RMC-180

  • F/W Update

    USB 2.0

  • IR Control

    One IR Controller

  • Moving Noise While Tilt

    <=25db

  • Moving Noise While Pan

    <=25db

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -10 to 60 deg. C / 14 to 140 deg. F

  • Operating Humidity

    10 % to 80 % (No Condensation)

  • Certifications

    CE / FCC Class A

  • Dimensions (W x H x D)

    6.8 x 7.4 x 8.6" / 172.72 x 187.96 x 218.44mm

  • Weight

    2.76Kg / 6.08lbs (Camera Device Only)

About Datavideo PTC-150

The PTC-150W HD PTZ video camera with a 30x optical zoom can be mounted on a wall, ceiling, floor or a tabletop and includes an IR remote control. The 1920 x 1080 resolution camera features wide dynamic range with backlight compensation. The camera's image mirror and image rotation functions allow you to electronically orient the image to adjust for the position in which the PTZ has been located.

16 programmable position presets including pan, tilt and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote or an available PTZ controller. For multi-camera shoots, the built-in tally light can identify when it is the active camera. The camera features a built-in IR cut filter for low light shooting. PTC-150W supports real time position reporting by per frame, providing useful information for virtual studio applications. The camera supports Sony VISCA protocol for PTZ control using RS-422 protocols over the unit's RJ-45 port.

Datavideo PTC-150 Features

  • Digital Noise Reduction Function (DNR) to reduce the noise and enable clearer image under low light conditions
  • Position coordinates report in real time per frame
  • Video Output: HD-SDI + CVBS + HDMI synchronously
  • Tally LED Design
  • Supports VISCA Protocol Keyboard
  • Supports DVIP Control Protocol

Product Documents

User Manual

Key Features

  • Capture crystal-clear video with the Datavideo PTZ camera's impressive 30x optical zoom.
  • Enjoy flexible connectivity with HDMI, HD-SDI, and CVBS outputs on this versatile PTZ camera.
  • Excellent low-light performance ensures clear video, even in challenging lighting conditions.
  • Remotely control pan, tilt, and zoom functions for dynamic video capture in any environment.
  • Perfect for live streaming, broadcasting, or security, this PTZ camera offers multiple uses.
  • Easily install this PTZ camera indoors or outdoors with included mounting brackets for convenience.

What's in the box:

  • Data Video PTC-150W 2.14MP Outdoor/Indoor Day & Night HD/SD PTZ Video Camera
  • IR Remote Controller
  • Ceiling Mount Bracket-A
  • Ceiling Mount Bracket -B
  • 6x M3x4mm Ceiling Mount Bracket Screw
  • DC 12V Power Adaptor
  • Power Cord
  • Tightrope
  • Datavideo 2 Year Warranty (1 Year + 1 Year with Registration)
