Datavideo PTR-10 Robotic Pan Tilt Head
See all Datavideo items

Datavideo PTR-10 Robotic Pan Tilt Head

SKU: DVPTR10
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Datavideo PTR-10T MARK II: Picture 1 regular

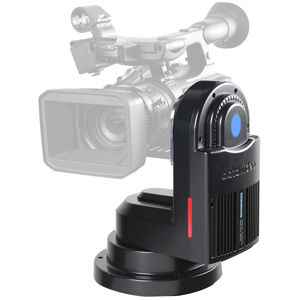

Datavideo PTR-10T MARK II HDBaseT Robotic Pan Tilt Head
$2,999.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Datavideo PTR-10 Specifications

  • Panning / Tilting Speed

    Pan: 0.2-15 deg. /Sec
    Tilt: 0.1-10 deg. /Sec

  • Preset

    Pan/Tilt position 50

  • Control Distance

    1,200M by RS422
    100M by DVIP

  • Control Protocol

    Sony VISCA
    DVIP

  • Control Input

    RS-422
    DVIP

  • Maximum Load

    4 KG Max

  • Control Output

    RS-232
    RS-422
    BX-Lens
    LANC

  • Power Requirement

    DC 12V-18V, 3A (Without Camera)
    DC 12V-18V, 5A (With Camera)

  • Power Supply

    DC 12V, 2A Max

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions (LxWxH)

    230 x 190 x 300mm (9.06 x 7.48 x 11.81")

  • Weight

    3.4kg (7.50 lbs)

About Datavideo PTR-10

Transform any camera into a PTZ camera.

Multiple signal interface
SDI, HDMI, RS-232, RS-422, DVIP, Tally, LANC.

Diversified controller options
RMC-180, RMC-300C with Control of Pan, Tilt, Zoom and much more.

Strong and sturdy aluminum alloy material design
Tally light built-in, great design for Live event.

Supports Zoom control
For Datavideo block cameras and various brand lens with power supported.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Datavideo PTR-10 Robotic Pan Tilt Head
  • Datavideo 3 Year Warranty (1 Year + 2 Year with Registration)
