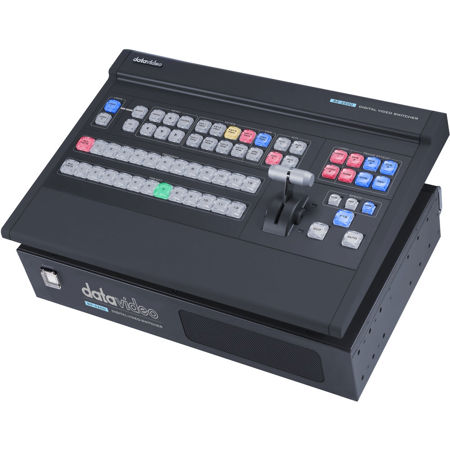

Datavideo SE-3200 HD 12-Channel Digital Video Switcher

SKU: DVSE3200 MFR: SE-3200
Earn VIP Reward Points

Key Features

  • Elevate your live productions with this 12-channel HD video switcher for seamless cuts.
  • Experience versatile compatibility with 8 SDI and 4 HDMI inputs on this video production mixer.
  • Achieve high video quality with 1080p support, perfect for broadcast or streaming events.
  • Enjoy a user-friendly interface and easy setup, streamlining your video switching workflow.
  • Create stunning visuals with 4 chromakeyers & DVE effects, enhancing your live streams.
  • Control remotely via Ethernet or RS-422/232, making this switcher ideal for any studio setup.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Sione M : it has features that I need for my streaming

Reviews about this item

Review Summary

2021-08-20T08:17:44

Rated 4 out of 5

Good video switcher

For the price you can't beat it. Works well in a studio, not a good choice for remote work. The interface with a computer adds a lot of extra options.

ACCOUNTS P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Datavideo SE-3200 Specifications

  • 12 Video Input Channels

    8x SDI and 4x HDMI

  • 9 Video Output Channels

    6x SDI and 3x HDMI

  • Video Standard

    HD

  • Video Format

    1080p 50/59.94/60Hz, 1080i 50/59.94/60Hz, 720p 50/59.94/60Hz, 576i 50Hz, 480i 59.94Hz

  • Video Processing

    SDI: 4:2:2
    HDMI: YUV 4:2:2, RGB: 4:4:4

  • Input Routable / Crosspoint

    All 12, repeatable

  • Video Input

    8x SDI, 4x HDMI

  • Mix HD & SD source

    Selectable HD or SD

  • Computer Graphic Interface

    4 via HDMI

  • Video output

    6x SDI Outputs assignable:
    AUX 1-4, PGM, PVW, PGM Clean & multi-view
    3x HDMI assignable: PGM & multi-view

  • Built-in Multi-view monitoring out

    HDMI

  • Audio input

    4x Balanced XLR

  • Audio output

    2x Balanced XLR

  • Embedded audio support

    Embedded 4-CH audio output

  • Audio Delay Calibration

    Up to 16 fields or 8 frames per channel

  • A+V switching

    Yes

  • Chromakey

    4

  • Title Creator

    Yes

  • USK

    4x USK support Chromakey & Linear/ Luma Key

  • DSK

    2x DSK support Lumakey & Linear key (Key / Fill)

  • Picture in Picture

    4

  • Logo Insertion

    2

  • Still Store

    500+

  • Effects

    DVE, FTB, Cut, 32 Wipe with border

  • Transition Preview

    Full transitions preview

  • Sync / Reference In/Out

    Built-in Genlock
    Support external sync with loop thru

  • Tally Output

    1x D-sub 25pin, dual color

  • PC Remote Control

    Via Ethernet (free Window software) or RS-422 / RS-232

  • Special Function

    4 User Memory Preset
    Stinger transition

  • Chassis

    2 units, 2RU rack-mount mainframe

  • Power

    DC 12V

About Datavideo SE-3200

The SE-3200 is a professional 12-channel, 1080p video switcher that provides powerful and easy-to-use video effects such as four upstream keyers for Chromakey and Luma Key, dual DSK, PIP and WIPE transitions. There are also other features like frame store, animated transition effects, multi-channel inputs and abundant visual effects. The built-in subtitle generation system can be paired with Datavideo's CG software to instantly create broadcast quality subtitles.

The SE-3200's modular design allows you to install the 2U main unit on a standard 19-inch rack and place the control panel on a flat work bench or it can be installed in an outdoor broadcast van. The SE-3200 facilitates video switching, whether indoor or outdoor.

Datavideo SE-3200 Features

  • Supports full 1080P (3G)
  • 4 Upstream Keys for chromakey, linear and luma keys as well as picture-in-picture
  • 2 Downstream Keys for generating different effects
  • 4 Broadcast Quality keyers with 50 built-in virtual sets
  • 9 built-in Stinger transition effects
  • Picture-in-picture with configurable ratio, position and size
  • 2 Downstream Keyers for linear and luma keys
  • 2 static or animated logos with configurable position and size
  • WIPE, MIX, DVE and CUT transitions
  • 32 WIPE patterns such as circle and heart with adjustable border width and color softness
  • Supports stinger transition for live sports broadcast
  • Any input (1-12) can be used as a frame store
  • Supports XPT (Cross Point Assignment)
  • 4 XLR analogue audio input channels with each channel carrying four audio tracks
  • 2 XLR de-embedded analogue audio output channels
  • Dual color (red/green) tally outputs
  • Supports Tri-Level and Black Burst sync reference
  • 2 readily available user memory presets

Key Features

  • Elevate your live productions with this 12-channel HD video switcher for seamless cuts.
  • Experience versatile compatibility with 8 SDI and 4 HDMI inputs on this video production mixer.
  • Achieve high video quality with 1080p support, perfect for broadcast or streaming events.
  • Enjoy a user-friendly interface and easy setup, streamlining your video switching workflow.
  • Create stunning visuals with 4 chromakeyers & DVE effects, enhancing your live streams.
  • Control remotely via Ethernet or RS-422/232, making this switcher ideal for any studio setup.

What's in the box:

  • Datavideo SE-3200 HD 12-Channel Digital Video Switcher
  • SE-3200 Control Board
  • 2x DC 12V AD Switch
  • AC Cord
  • DB9P to DB9P Cable
  • 12x Screws
  • 2x 2U Ear Rack
  • Thank You Card
  • Datavideo 3 Year Warranty (1 Year + 2 Year with Registration)
