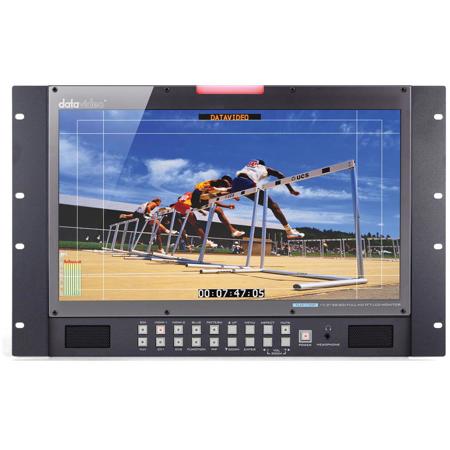

About Datavideo TLM-170PR
Be at the forefront of professional video production with the Datavideo TLM-170PR, a high-quality 17.3" 3G-SDI & HDMI TFT LCD 7U Rack Mount Monitor. Boasting a full HD 1920x1080 resolution, this innovative monitor delivers superior image quality from a variety of inputs, including the cutting-edge 3G-SDI.
Designed for continuous 24/7 operation, this durable and reliable monitor features a professional-grade panel that ensures excellent color and video performance across a multitude of formats and standards. The TLM-170PR's front panel buttons provide quick and easy access to source input selection, PIP, aspect ratio, blue only, pattern (color bars), menu, and audio controls.
Expand your connectivity options with the rear panel's SDI, HDMI, Component (Y, Pb, Pr), and Composite connections. Monitor RCA phono or embedded SDI/HDMI audio with ease. The TLM-170PR monitor also features an intuitive on-screen display (OSD) menu, allowing you to control and set up brightness, contrast, saturation, hue, sharpness, color temperature, and picture in picture.
For remote setup, the monitor includes an RJ-45 TCP/IP connector, enabling you to adjust settings using a PC/Mac-based web browser. The OSD menus also allow for onscreen overlays, including frame marker, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode, and Monitor Title.
With the flexibility to operate from AC or 12V DC power, the Datavideo TLM-170PR monitor is versatile enough for use in a studio, gallery, post-production edit suite, or even in an OB van. Experience the difference of superior video monitoring and playback with this professional, rack-mountable monitor.
Datavideo TLM-170PR Features
- 7U Rackmount Unit
- 17.3" FULL HD 1080p LCD Panel with Underscan and Overscan menu options
- Digital Video Inputs: SD/HD-SDI with loop thru and 2x HDMI
- Digital Audio Inputs: via SDI or HDMI inputs
- Analogue Video Inputs: Component [ Y,Pb,Pr ], Composite x2 with loop thru
- Mono Audio Inputs: Single RCA phono socket for analogue inputs
- Head phone 3.5mm stereo jack socket for discrete audio monitoring
- Front Panel Buttons allow quick and easy selection of source input as well as PIP, Aspect Ratio, Blue only, Pattern ( Color Bars ), Menu and audio controls
- Color temperature menu option has 3 modes (6500K, 9300K and user defined)
- OSD audio level peak meter for SDI and HDMI based digital audio inputs
- On screen overlays for frame marker 80%, 90%, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode and Monitor Title
- Bi-color Tally light [Red or Amber] and 3.5mm Jack Tally input socket
- Analogue Audio external speaker outputs L-, L+ and R-, R+ [Max 5v p - p (2w)]
- RJ-45 TCP/IP connection allows remote set up of the monitor using a PC / Mac based browser
- USB 2.0 port for easy update of firmware with a USB 2.0 pen drive
