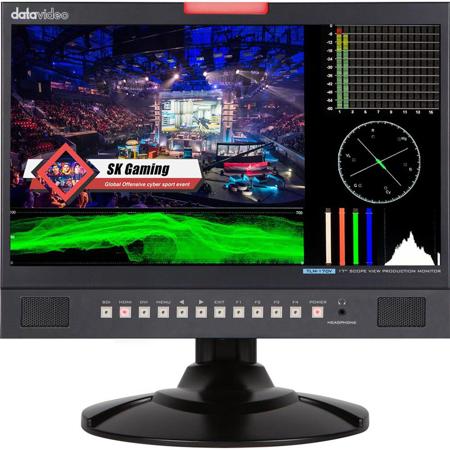

Datavideo TLM-170VM 17.3" Full HD ScopeView Production LED Monitor
Datavideo TLM-170VM: Picture 1 thumbnail
Datavideo TLM-170VM: Picture 2 thumbnail
See all Datavideo items

Datavideo TLM-170VM 17.3" Full HD ScopeView Production LED Monitor with Built-In Speakers and 1RU Pull-Out, 1920x1080

SKU: DVTLM170VM MFR: TLM-170VM
Be the first to review this itemAsk a Question
$2,199.00
OR
$184/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this 17.3" Full HD production monitor's 1920x1080 resolution.
  • Utilize waveform, vector scope & audio level meter functions on this production LED monitor.
  • Enjoy versatile connectivity with 3G/HD/SD-SDI and HDMI inputs on this broadcast monitor.
  • Easily convert SDI to HDMI and vice versa with this Datavideo production monitor.
  • Rack-mountable 1RU pull-out design makes this monitor ideal for broadcast environments.
  • Achieve accurate focus with peaking focus assist feature on this 17.3" production monitor.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Datavideo TLM-170VM Specifications

  • Screen Size

    17.3" LED Backlit

  • Chassis

    1RU Pull-Out

  • Resolution

    1920x1080

  • Viewing Angle

    (H) +89/-89 deg.
    (V) +89/-89 deg.

  • Luminance

    300cd/m2

  • Contrast Ratio

    700:1

  • Video Input

    1x 3G/HD/SD-SDI
    2x HDMI

  • Loop Through

    1x 3G/HD/SD-SDI
    1x HDMI

  • Supported Input Resolutions

    1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
    1080i(50/59.94/60Hz),
    720p(50/59.94/60Hz),
    576i(PAL), 480i(NTSC)

  • Aspect Ratio

    16:9, 4:3

  • Tally LED

    Live (Red)
    Cued (Green)

  • Audio In/Out

    2x Speaker
    1x Headphone Jack

  • Special Functions

    SDI and HDMI cross conversion, Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Power

    DC 10-18V, 32W

  • Dimensions (LxWxH)

    403 x 305 x 41mm (15.87 x 12.01 x 1.61")

  • Weight

    4.5kg (9.92 lbs)

About Datavideo TLM-170VM

17.3" Full HD Pull-Out Monitor
Supports 3G/HD/SD 1920x1080 panel resolution.

Supports multiple input and output configurations
1x 3G/HD/SD-SDI, 2x HDMI inputs; 1x 3G/HD/SD-SDI, 1x HDMI loop through.

SDI, HDMI cross conversion
The TLM-170V can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.

Various built-in functions
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field

Tally light
Tally light included. Best use for live production.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior clarity with this 17.3" Full HD production monitor's 1920x1080 resolution.
  • Utilize waveform, vector scope & audio level meter functions on this production LED monitor.
  • Enjoy versatile connectivity with 3G/HD/SD-SDI and HDMI inputs on this broadcast monitor.
  • Easily convert SDI to HDMI and vice versa with this Datavideo production monitor.
  • Rack-mountable 1RU pull-out design makes this monitor ideal for broadcast environments.
  • Achieve accurate focus with peaking focus assist feature on this 17.3" production monitor.

What's in the box:

  • Datavideo TLM-170VM 17.3 " Full HD ScopeView Production LED Monitor
  • Datavideo 3 Year Warranty (1 Year + 2 Year with Registration)
