Datavideo VP-737 Composite Video Signal Repeater, 656' Over Cat5e

SKU: DVVP737 MFR: VP-737
Be the first to review this itemAsk a Question
$164.00
Earn VIP Reward Points

Key Features

  • Extend composite video signals up to 656' with this reliable video repeater solution.
  • Maintain high video quality with NTSC 4.1 MHz / PAL 5.8MHz bandwidth support.
  • Enjoy a stable connection for your 525i NTSC or 625i PAL video broadcast setup.
  • Ensure optimal signal transfer with impedance video at 1Vp-P / 75Ohms.
  • Minimize signal noise with a >50dB Signal/Noise Ratio for clear video output.
  • Experience easy setup using standard BNC and RJ-45 connectors for quick integration.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$17.99

3 Year

$27.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Datavideo VP-737 Specifications

  • Max Distance

    660' / 201.17m

  • Bandwidth Video

    NTSC: 4.1 MHz / PAL: 5.8MHz

  • Supported Resolutions

    625i PAL, 525i NTSC

  • Impedance Video

    1Vp-P / 75Ohms

  • Signal/Noise Ratio(SNR)

    >50dB

  • Signal Level

    Video: 2Vpp (maximum)

  • Differential Gain

  • Differential Phase

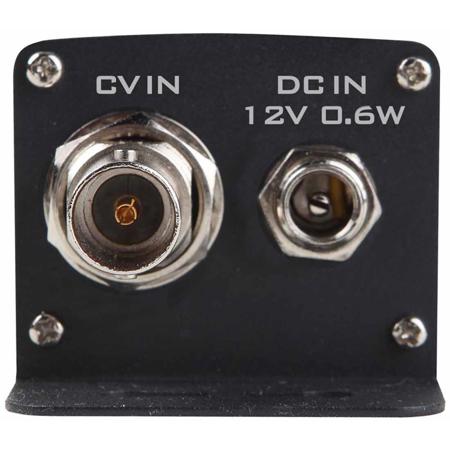

  • Connector: Transmitter

    CV Input(BNC)
    DC Input
    CAT 5e Out(RJ-45)

  • Connector: Receiver

    CV Output(BNC)
    CAT 5e Input(RJ-45)

  • Power

    12V/0.6W

  • Dimensions (L x W x H)

    108.9 x 37.5 x 32.0mm / 4.29 x 1.48 x 1.26"

  • Weight

    Transmitter: 0.1kg / 0.22lbs
    Receiver: 0.1kg / 0.22lbs

About Datavideo VP-737

VP-737 is a composite video signal repeater which consists of a transmission and receiver unit. VP-737 is able to extend composite video source signal up to 200 meters away over Cat5e (or better) cable. With no software configuration required, the installation and setup is quick and hassle-free.

Datavideo VP-737 Features

  • Wired composite video transmission as far as 200 meters
  • Completely adaptive - quick, easy installation and setup, no configuration required
  • Cat5e extension design makes use of existing Cat 5e or better wiring infrastructures

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Extend composite video signals up to 656' with this reliable video repeater solution.
  • Maintain high video quality with NTSC 4.1 MHz / PAL 5.8MHz bandwidth support.
  • Enjoy a stable connection for your 525i NTSC or 625i PAL video broadcast setup.
  • Ensure optimal signal transfer with impedance video at 1Vp-P / 75Ohms.
  • Minimize signal noise with a >50dB Signal/Noise Ratio for clear video output.
  • Experience easy setup using standard BNC and RJ-45 connectors for quick integration.

What's in the box:

  • Datavideo VP-737 Composite Video Signal Repeater
  • Datavideo 2 Year Warranty (1 Year + 1 Year with Registration)
