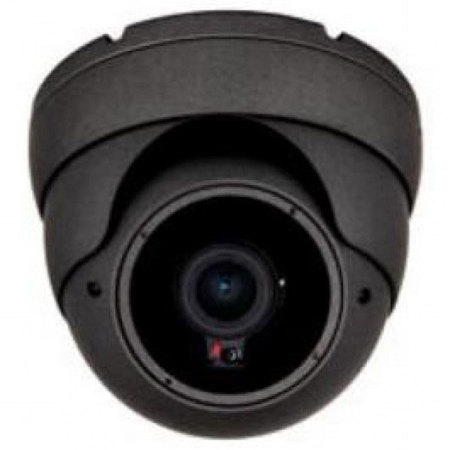

Digital Watchdog Star Light 560 TVL High Resolution 3-Axis Ball Camera with 2.8-11mm Varifocal Lens

SKU: DWCBL5363D

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Watchdog DWC-BL5363D Specifications

  • Image sensor

    1/3" Super HAD II CCD

  • Number of Pixels

    811(H) x 508 (V), 411K pixels

  • Pixels-Effective

    768(H) x 494(V)

  • Scanning system

    NTSC 525 lines. 2:1 interlace

  • Horizontal resolution

    560 TV Lines [Color]. 580 TV Lines [B/W]

  • Minimum illumination

    F1.2: 0.14 lux, x256 Starlight: 0.0005 lux in Color

  • Video out

    VBS 1.0Vp-p(75 ohm Load)

  • Video S/N ratio

    52dB or higher(AGC off)

  • Varifocal Lens

    Auto Iris Lens 2.8-11mm

  • Shutter speed

    1/60s up to 1/100,000s

  • Gamma

    0.45

  • Synchronizing system

    Internal & External line lock

  • OSD: StarLight

    AUTO / OFF (step 2 - 256)

  • OSD: 3D DNR

    OFF / LOW / MIDDLE / HIGH

  • OSD: AWB

    ATW / AWC / MANUAL / PUSH

  • OSD: Gamma

    0.45

  • OSD: Motion Detection

    ON / OFF

  • OSD: Mirror

    ON / OFF

  • OSD: Digital Zoom

    32x

  • OSD: Negative Image

    ON / OFF

  • OSD: Sharpness

    0-31

  • OSD: Privacy Zone

    7 Programmable Zones

  • OSD: HME

    ON/OFF set level 0-8

  • OSD: DLC

    OFF / Indoor / Outdoor

  • Operating Temperature

    -10 Degree C - 55 Degree C (14 Degree F - 131 Degree F)

  • Storage Temperature

    -20 Degree C - 75 Degree C (-4 Degree F - 167 Degree F)

  • Humidity

    Less than 90%

  • Power Requirement

    12VDC / 24VAC (60Hz)

  • Power Consumption

    DC12[V]: 1.7 [W] / AC24[V]: 2.42[W]

  • Dimensions

    96mm x 120mm / 3.8" x 4.7"

  • Weight (approx.)

    2.3 lbs

  • Nema Type

    IP 66

  • Certification

    CE, FCC, RoHS

  • UPC Code

    813379010644

About Digital Watchdog DWC-BL5363D

The BL5363D is the next generation of Digital Watchdog's Outdoor Camera. The BL5363D is a Weather Resistant 3-Axis Ball Camera that ensures excellent color sensitivity and High Resolution in both Day and Night applications. This camera is the next generation of our Starlight Series (3D DNR) of products which offers extreme low light capability.Designed for more low light security applications, the BL5363D offers a unique Digital Slow Shutter feature which increases the length of time the shutter remains open to collect additional ambient light, thus illuminating typically dark environments.

The BL5363D is Water Resistant, Dust Proof, Shock Proof, and is the right choice for system integration and critical surveillance applications. This product is NEMA rated IP66 and offers a 5 Year Warranty.

Digital Watchdog DWC-BL5363D Features

  • 1/3" Sony Super HAD II CCD
  • 560 TV Line
  • 2.8 - 11mm Varifocal Auto Iris Lens
  • Easy Icon Driven OSD Menu
  • 3D-DNR (3D Digital Noise Reduction)
  • Star-Light (Super Low Light Technology)
  • DRC (Dynamic Range Compress)
  • Electronic Day and Night
  • HME (Highlight Masking Exposure)
  • Digital Zoom 32X
  • Negative Imaging
  • Secondary Video-BNC Output for Easy Installation
  • Auto Sensing 24 VAC/12 VDC with Line Lock
  • AGC (Auto Gain Control)
  • BLC (Back Light Compensation)
  • AWB (Auto White Balance)
  • Mirror Image Control (H/V)
  • Programmable Privacy Zone (6) & Motion Detection (8)
  • Sharpness Control
  • No Fog or Condensation under Any Weather Condition
  • 3-Axis Ball Neck Bracket (simple camera positioning)

Key Features

  • 1/3" Sony Super HAD II CCD
  • 560 TV Line
  • 2.8 - 11mm Varifocal Auto Iris Lens
  • Easy Icon Driven OSD Menu
  • 3D-DNR (3D Digital Noise Reduction)
  • Star-Light (Super Low Light Technology)

What's in the box:

  • 3-Axis Ball Camera
  • 1 x Zoom & Focus Adjustment Tool
  • 4 x Wood Screws
  • 1 x Security L-Key
  • 1 x Security Lock Screw
  • 1 x Zoom & Focus Seal Covers
  • 1 x Quick Connect & Disconnect Power Connector
  • 1 x User Manual
  • 1 x Secondary BNC Cable for a Field Monitor
  • 5 Year Warranty
