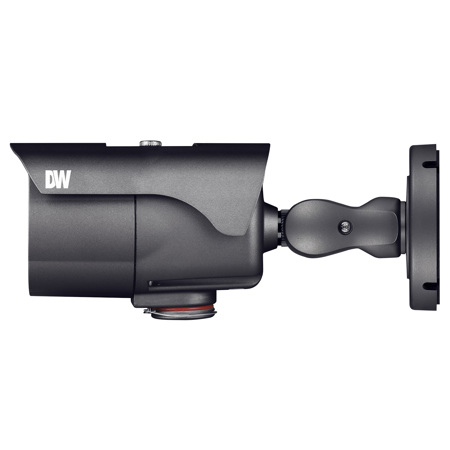

Digital Watchdog MEGApix DWC-MB44IALPR 4MP License Plate Recognition Outdoor IP Bullet Camera, 6-50mm Motorized Varifocal Lens, 2560x1440, 30fps, 60' Smart IR, H.264, MJPEG, PoE

SKU: DWCMB44IALPR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Watchdog DWC-MB44IALPR Specifications

  • Image Sensor

    4MP 1/3" CMOS

  • Total Pixels

    HxV: 2688x1520

  • Minimum Scene Illumination

    F1.6 (30IRE): 0 Lux (B&W)

  • Video Output

    Local Video Output CVBS 1.0V p-p (75Ohms), 4:3 aspect ratio

  • Focal Length

    6.0-50mm, F1.6

  • Lens Type

    P-Iris, Motorized Zoom with Auto Focus Lens

  • Field of View

    90-7.3 deg.

  • IR Distance

    60' (18.29m) Smart IR

  • Optical Zoom

    x8.3

Input/Output

Jump to...
  • Audio In/ Out

    1/1

  • Audio Compression

    G.711

  • Alarm In/Out

    1/1

  • Alarm Notifications

    Notifications Via E-mail, FTP Server or SD Card Recording

Operational

Jump to...
  • Capture Image Range

    Up to 60' (18.29m)

  • Maximum Vehicle Speed

    50mph

  • Shutter Mode

    Auto, Manual, Anti-Flicker

  • Shutter Speed

    1/15-1/32000

  • Slow Shutter

    Off, x2, x3, x5, x6, x7.5, x10

  • Dynamic Range Compression

    120dB or Above

  • Auto Gain Control

    Auto

  • Smart DNR 3D Digital Noise Reduction

    0-11

  • Privacy Zone

    16 Programmable Privacy Masks

Network

Jump to...
  • LAN

    802.3 Compliance 10/100 LAN

  • Video Compression Type

    H.264, MJPEG

  • Resolution

    H.264: 1440p/1080p/720p/VGA/D1/CIF
    MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF

  • Frame Rate

    Up to 30fps at All Resolutions

  • Streaming Capability

    Dual-Stream at Different Rates and Resolutions

  • Video Bitrate

    100Kbps - 10Mbps, Multi-rate for Preview and Recording

  • Bitrate Control

    Multi Streaming CBR/VBR at H.264 Controllable frame rate and Bandwidth

  • IP

    IPv4

  • Protocol

    ONVIF, TCP/IP, UDP, auto IP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)

  • Security

    Password authentication, Multi-level user configuration

  • Maximum User Access

    5 Users

  • ONVIF Conformance

    Yes

  • Web Viewer

    OS: Windows, Mac OS, Linux
    Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari

  • Video Management Software

    DW Spectrum IPVMS

  • Memory Slot

    Micro SD / SDHC / SDXC (Card not Included)

Environmental

Jump to...
  • Operating Temperature

    -40 to 122 deg. F (-40 to 50 deg. C)

  • Operating Humidity

    Less than 90% (Non-Condensing)

  • IP Rating

    IP66 Certified Weather and Tamper Resistant

  • Other Certifications

    CE, FCC, RoHS

Electrical

Jump to...
  • Power Requirements

    DC12V, PoE (IEEE 802.3af Class 3) (Adaptor not Included)

  • Power Consumption

    DC12V: Max 11W
    PoE: Max 12.9W

General

Jump to...
  • Material

    Aluminum Housing

  • Dimensions

    9.73 x 3.8" (247.14 x 96.52mm)

  • Weight

    1.98 lbs (0.90kg)

  • UPC Code

    813379019272

About Digital Watchdog DWC-MB44IALPR

These MEGApix LPR IP cameras deliver crystal-clear images at 4 Megapixel resolution and real-time 30fps. The cameras are engineered to capture license plates of moving vehicles in extreme light conditions, from ranges of up to 60' at up to 50mph. The IP66 weather resistant housing and Cold Start at -40deg. F/-40deg. C assure that license plates are captured clearly and visibly no matter the lighting challenge or weather condition.

License Plate Recognition (LPR) Camera
MEGApix LPR cameras are engineered to capture license plates of moving vehicles in extreme light conditions, from ranges of up to 60' at up to 50mph.

Motorized Zoom Auto-Focus Lens
An Auto Focus lens with motorized zoom removes the need for the complicated and detailed manual focus adjustment or zoom configurations at the camera. The motorized zoom module allows you to adjust the camera's view and zoom remotely, without the need to be near the camera. Then, the autofocus lens communicates with the camera to automatically determine what area of the camera's FoV should be in focus.

Cold Start
Our upgraded Snapit and B4 models come with a heater built into the camera module. This heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40deg. F. This makes the cameras ideal for any harsh environment installation.

Digital Watchdog DWC-MB44IALPR Features

  • 4MP 1/3" CMOS Sensor at Real-Time 30fps
  • License Plate Recognition Technology captures reflective license plates up to 50mph with up to 60' Capture Range
  • Reliable Performance under Any Lighting Conditions
  • 6-50mm Motorized Zoom Auto-Focus P-Iris Lens
  • Dual Codecs (H.264, MJPEG) with Simultaneous Dual-Stream
  • Cold Start -40 deg. F (-40 deg. C)
  • 60' Smart IR with Intelligent Camera Sync
  • Smart DNR 3D Digital Noise Reduction
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Auto White Balance (AWB)
  • Motion Detection
  • Two-Way Audio
  • Micro SD/SDHC/SDXC Class 10 Card Slot (Card Not Included)
  • Alarm Sensor Input
  • Relay Output
  • Web Server Built-in
  • PoE Class 3 and DC 12V
  • Waterproof Cabling
  • ONVIF Conformant, Profile S
  • IP66 Weather and Tamper Resistant
  • 5 Year Warranty

What's in the box:

  • Digital Watchdog MEGApix DWC-MB44IALPR 4MP License Plate Recognition Outdoor IP Bullet Camera
  • 4x Screws & Plastic Anchors
  • Torx Wrench
  • Test Video Cable
  • Template Sheet
  • Waterproof Cap & Gasket
  • DC Plug Cable
  • Quick Start Guide
  • Digital Watchdog 5 Year Warranty
