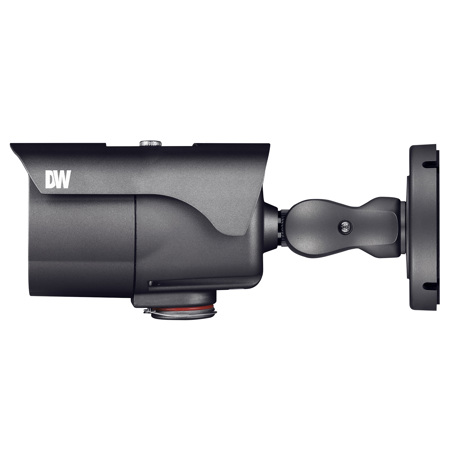

Digital Watchdog MEGApix DWC-MB44WI650 4MP Indoor/Outdoor Day & Night Long Range IP Bullet Camera, WDR, 6-50mm Varifocal Lens, 2560x1440, 30fps, 140' Smart IR, H.264, MJPEG, PoE

SKU: DWCMB44WI650

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Watchdog DWC-MB44WI650 Specifications

  • Image Sensor

    4MP 1/3" CMOS

  • Total Pixels

    HxV: 2688x1520

  • Minimum Scene Illumination

    F1.6 (30IRE): 0.26 Lux (Color)
    F1.6 (30IRE): 0.0 Lux (B&W)

  • Video Output

    Local Video Output CVBS 1.0V p-p (75Ohms)], 4:3 aspect ratio

  • Focal Length

    6-50mm, F1.6

  • Lens Type

    P-Iris Auto Focus

  • Field of View

    90-7.3 deg.

  • IR Distance

    140' (42.67m)

  • Optical Zoom

    x8.3

Input/Output

Jump to...
  • Audio In/ Out

    1/1

  • Audio Compression

    G.711

  • Alarm In/Out

    1/1

Operational

Jump to...
  • Shutter Mode

    Auto, Manual, Anti-Flicker

  • Shutter Speed

    1/15-1/32000

  • Slow Shutter

    Off, x2, x3, x5, x6, x7.5, x10

  • Auto Gain Control

    Auto

  • Day and Night

    Auto, Day (Color), Night (B/W)

  • Smart DNR 3D Digital Noise Reduction

    0-11

  • Wide Dynamic Range

    Off, WDR2x, WDR3X
    120dB

  • Privacy Zone

    16 Programmable Privacy Masks

  • Alarm Notifications

    Notifications Via E-mail, FTP Server or SD Card Recording

Network

Jump to...
  • LAN

    802.3 Compliance 10/100 LAN

  • Video Compression Type

    H.264, MJPEG

  • Resolution

    H.264: 1440p / 1080p / 720p / VGA / D1 / CIF
    MJPEG: 1280x720 / 800x600 / VGA / 768x432 / D1 / CIF

  • Frame Rate

    Up to 30fps at All Resolutions

  • Streaming Capability

    Dual-Stream at Different Rates and Resolutions

  • IP

    IPv4

  • Protocol

    ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)

  • Security

    Password authentication, Multi-level user configuration HTTPS(SSL), IP filtering, 802.1x, Digest Authentication(ID/PW)

  • Maximum User Access

    5 Users

  • ONVIF Conformance

    Yes

  • Web Viewer

    OS: Windows, Mac OS, Linux
    Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari

  • Video Management Software

    DW Spectrum IPVMS

  • Memory Slot

    Micro SD / SDHC / SDXC (Card not Included)

Environmental

Jump to...
  • Operating Temperature

    -40 to 122 deg. F (-40 to 50 deg. C)

  • Operating Humidity

    Less than 90% (Non-Condensing)

  • IP Rating

    IP66 Certified Weather and Tamper Resistant

  • Other Certifications

    CE, FCC, RoHS

Electrical

Jump to...
  • Power Requirements

    DC12V, PoE (IEEE 802.3af Class 3)

  • Power Consumption

    DC12V: Max 11W
    PoE: Max 12.9W

General

Jump to...
  • Material

    Aluminum Housing, Polycarbonate Dome

  • Dimensions

    9.73 x 3.63" (247.14 x 92.20mm)

  • Weight

    3.96 lbs (1.80kg)

About Digital Watchdog DWC-MB44WI650

These MEGApix IP cameras deliver crystal-clear images at 4 Megapixel resolution at real-time 30fps. Features include 6-50mm Long Range P-Iris Lens, Smart IR, Smart DNR and WDR for quality video in challenging lighting environments. The IP66 rated weather resistant housing is easy to install and will Cold Start at -40deg. F/-40deg. C.

Motorized Zoom Auto-Focus Long Range Lens
An Auto Focus lens with motorized zoom removes the need for the complicated and detailed manual focus adjustment or zoom configurations at the camera. The motorized zoom module allows you to adjust the camera's view and zoom remotely, without the need to be near the camera. Then, the autofocus lens communicates with the camera to automatically determine what area of the camera's FoV should be in focus. The long range camera offers an exceptionally powerful lens with 6-50mm focal length and up to 8.3x optical zoom.

Wide Dynamic Range (WDR)
Wide Dynamic Range technology mechanically allows capturing an entire scene in challenging lighting conditions. One shutter is set to a short exposure, capturing the bright areas in the FoV, while the other is set for a long exposure, capturing the dark areas in the FoV. The camera then interlaces the images and combines them, capturing both areas with no loss of detail. This allows for an image capture even when there are very bright and dark areas in the camera's field of view or images are distorted by a strong backlight.

Cold Start
Our upgraded Snapit and B4 models come with a heater built into the camera module. This heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40deg. F. This makes the cameras ideal for any harsh environment installation.

Digital Watchdog DWC-MB44WI650 Features

  • 4MP 1/3" CMOS Sensor at Real-Time 30fps
  • 6-50mm Motorized Zoom Auto-Focus P-Iris Lens
  • True Wide Dynamic Range (WDR)
  • Dual Codecs (H.264, MJPEG) with Simultaneous Dual-Stream
  • Cold Start -40 deg. F (-40 deg. C)
  • 140' Smart IR with Intelligent Camera Sync
  • Smart DNR 3D Digital Noise Reduction
  • True Day/Night with Mechanical IR Cut Filter
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Auto White Balance (AWB)
  • Motion Detection
  • Two-Way Audio
  • Micro SD/SDHC/SDXC Class 10 Card Slot (Card Not Included)
  • Alarm Sensor Input
  • Relay Output
  • Web Server Built-in
  • PoE Class 3 and DC12V
  • OnVIF Conformant, Profile S
  • IP66 Weather and Tamper Resistant
  • 5 Year Warranty

What's in the box:

  • Digital Watchdog MEGApix DWC-MB44WI650 4MP Indoor/Outdoor Day & Night Long Range IP Bullet Camera
  • 4x Screws & Plastic Anchors
  • Template Sheet
  • Torx Wrench
  • Test Video Cable
  • DC Plug Cable
  • Waterproof Cap
  • Quick Start Guide
  • Digital Watchdog 5 Year Warranty
