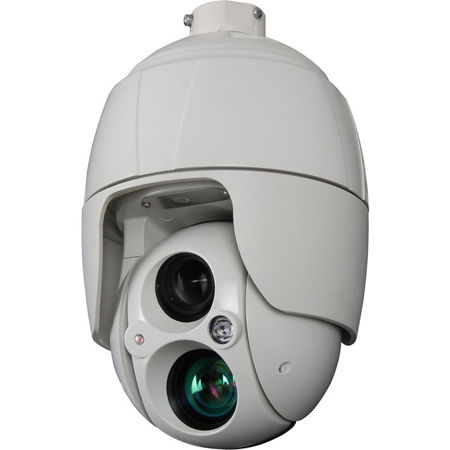

Digital Watchdog MEGApix Series 2.1MP Outdoor Day & Night PTZ Network Dome IP Camera with 1300' IR Distance, 30x Optical Zoom, 1920x1080, 30fps, IP66, H.264, MJPEG, PoE

SKU: DWCMPTZ30X

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CHANTAL G : We have the system so we want a ptz camera.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Watchdog MEGApix Series 2.1MP Outdoor PTZ Network Dome IP Camera Specifications

  • Image Sensor

    1/2.8" SONY STARVIS CMOS Sensor

  • Total Pixels

    1945 (H) x 1097 (V)

  • Minimum Scene Illumination

    (50IRE): 0.35 Lux [Color]
    (50IRE): 0.013 Lux [B&W]

  • Focal Length

    4.3-129mm, F 1.6

  • Lens Type

    Remote Auto Focus Lens

  • IR Distance

    1300' (396.24m)

  • Angle of View

    65.1 deg. - 2.23 deg.

  • Digital Zoom

    16x

  • Optical Zoom

    30x

  • Audio Input/ Output

    1/1, two-way audio

  • Audio Compression

    G.711

  • Alarm Input/ Output

    4/1

Operational

Jump to...
  • Shutter Speed

    25/30fps : Auto (1/30,000 - x8 sec.), Manual
    50/60fps : Auto (1/50,000 - x8 sec.), Manual

  • Day and Night

    Auto, Day (Color), Night (B/W)

  • Privacy Zone

    16 Programmable Privacy Zones

  • Alarm Notifications

    E-mail, FTP, Notification Server, XML Notification, Audio Alert, AIHM, SD card

PTZ Function

Jump to...
  • Pan Range

    360 deg. Endless

  • Pan Speed

    Max. 380 deg./sec.(Preset)

  • Tilt Range

    -10-190 deg.

  • Tilt Speed

    Max. 380 deg./sec.(Preset)

  • Preset

    256

  • Tour

    8

  • Pattern

    8

  • Home Function

    Yes

Network

Jump to...
  • LAN

    802.3 Compliance 10/100 LAN

  • Video Compression Type

    H.264, MJPEG

  • Resolution

    1920 x 1080 at 30fps

  • Frame Rate

    Up to 30fps at All Resolutions

  • Streaming Capability

    Dual-Stream at Different Rates and Resolutions

  • IP

    IPv4, IPv6

  • Protocol

    TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour

  • Security

    Password authentication, Multi User Authority, IP Filtering, HTTPS(SSL)

  • Maximum User Access

    Live : 10 Users, Playback : 3 Users

  • ONVIF Conformance

    Yes

  • Web Viewer

    OS: Windows, MAC OS, Linux
    Browser: Internet Explorer, Chrome, Firefox, Safari

  • Memory Slot

    Micro SD / SDHC / SDXC Card, 32GB. Card not Included

Environmental

Jump to...
  • Operating Temperature

    -22 to 149 deg. F (-30 to 65 deg. C)

  • Operating Humidity

    Less than 90% (Non-Condensing)

  • IP Rating

    IP66 (Weather Resistant)

  • Other Certifications

    CE, FCC, RoHS

Electrical

Jump to...
  • Power Requirement

    DC 12V, PoE (802.3at POE+, 55W PoE Injector Included)

  • Power Consumption

    Auto Focus Working: MAX 28W, 2330mA

Mechanical

Jump to...
  • Material

    Aluminum Die-casting

  • Dimensions

    7.95 x 12.3" (20.19 x 31.24cm)

  • Weight

    10.8 lbs (4.90kg)

  • UPC Code

    813379018787

About Digital Watchdog MEGApix Series 2.1MP Outdoor PTZ Network Dome IP Camera

The MEGApix 30x PTZ Camera delivers crystal-clear 2.1 Megapixel (1080p) resolution video at real-time 30fps and Smart IR up to 1300ft (400m). The camera features 30x optical zoom, 16x digital zoom and 0-360deg. endless pan in an IP66 weather resistant dome housing. A wall mount and ceiling mount are available, sold separately and necessary to complete the camera's installation.

• 2.1 Megapixel Image Sensor (1080p, 30fps)
• Wide Dynamic Range (WDR)
• Multiple Codecs (H.264, MJPEG) with Simultaneous Dual-Stream
• 4.3-129mm Remote Auto Focus Lens
• 1/2.8" CMOS Sensor
• 30x Optical Zoom + 16x Digital Zoom
• Smart IR with Intelligent Camera Sync 1300ft Range
• Smart DNR 3D Digital Noise Reduction
• True Day/Night with Mechanical IR Cut Filter
• Digital Image Stabilizer (DIS)
• Auto Gain Control (AGC)
• Backlight Compensation (BLC)
• Auto White Balance (AWB)
• Programmable Privacy Zones
• Motion Detection
• Pan 0-360deg. Endless, 380deg. Per Second Pan Speed
• Vector Drive Technology - Pan/Tilt Motion in Shortest Path
• 2-Way Audio
• 256 Preset Positions, 8 Patterns, 8 Tours
• Micro SD/SDHC/SDXC Class 10 Card Slot for Emergency Backup (card not included)
• Alarm Sensor Input
• Relay Output
• Web Server Built-in
• PoE Injector and DC12V, 55W PoE Injector Included
• ONVIF Conformant, Profile S
• IP66 Certified (Weather Resistant)

Tampering-Resistant Pan, Tilt, Zoom Domes
Digital Watchdhog PTZ cameras use up to 30x optical zoom lens, which uses the internal glass elements of the lens to bring an image in closer and records over the entire digital sensor of the camera at full resolution. Combined with additional 16x digital zoom, the camera offers clear zoom up to 480x times.

Smart IR

Smart IR adjusts the image for IR cameras to eliminate LED light reflection and white spots in the image. By breaking down the camera's field of view into five zones, Smart IR allows for even distribution of the IR light. This prevents excessive illumination on images that are in the front of the scene and offers a clear image in B/W without any loss of detail.

Wide Dynamic Range (WDR)

Wide Dynamic Range technology mechanically allows capturing an entire scene in challenging lighting conditions. One shutter is set to a short exposure, capturing the bright areas in the FoV, while the other is set for a long exposure, capturing the dark areas in the FoV. The camera then interlaces the images and combines them, capturing both areas with no loss of detail. This allows for an image capture even when there are very bright and dark areas in the camera's field of view or images are distorted by a strong backlight.

What's in the box:

  • Digital Watchdog MEGApix Series 2.1MP Outdoor PTZ Network Dome IP Camera
  • 55W PoE Injector
  • Safety Wire
  • AC Cord
  • Adaptor Ring
  • Waterproof Cap
  • 2P Screw Type Connector
  • 5P Screw Type Connector
  • QSG Manual
  • Digital Watchdog 5 Year Warranty
