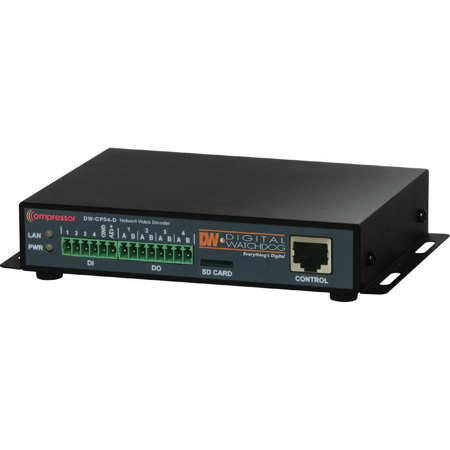

Digital Watchdog Compressor 4 Channel 120 fps Dual Codec Analog to IP Video Encoder

SKU: DWCP04 MFR: DW-CP04
Earn VIP Reward Points

Key Features

  • Capture analog video with the Digital Watchdog encoder, streaming up to 120fps at D1.
  • Dual codec (H.264/MJPEG) offers flexible video encoding for your specific needs.
  • Remote control PTZ cameras via RS-485, supporting Pelco, Samsung, and Honeywell.
  • Get alarm notifications via E-mail & FTP with pre & post alarm buffering included.
  • Utilize onboard Micro SDHC storage (up to 32GB) for local video recording; SD card not included.
  • Ensure reliable wireless connectivity with Ethernet (10/100 Base-T) network connection.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Digital Watchdog DW-CP04 Specifications

  • Video Input

    4 Channels Analog

  • Video Encoding

    Dual Codec (H.264 or MJPEG) with Single Stream Setup

  • Resolution

    D1 (704x480), CIF (352x288), 160x112

  • Live Casting

    Streaming up 120fps @ D1 Resolution

  • Input

    1 Channel Input

  • Output

    1 Channel Output

  • Codec

    8bit G.711, 8Khz, 8KByte/sec

  • Memory

    32bit RISC CPU, 128MByte Flash

  • OS

    Embedded Linux

  • RAM

    128MByte SDRAM

  • Compression

    H.264 or MJPEG

  • Recording Mode

    Scheduled, Motion, Event

  • Recording Rate

    120fps at D1 (704x480) Resolution

  • Playback Rate

    120fps at D1 (704x480) Resolution

  • Fast Forward Functions

    Fast Forward, Fast Rewind, Frame-by-Frame Forward, Frame-by-Frame Rewind

  • Search Modes

    Date, Time, Event Preview

  • External Storage

    Supports Micro SDHC for onboard storage (up to 32 GB)- SD Card not included

  • Alarm Input

    4 Input

  • Alarm Output

    4 Input

  • RS-232

    1 Port For UART device Control

  • RS-485

    1 Port for PTZ Support: Digital Watchdog's PTZ Series, Pelco P, Pelco D, Samsung and Honeywell PTZ

  • Alarm Management

    Video Loss, Video Recovered, Motion Detection, Alarm Activation, Reboot Complete, Serial Input, Schedule Alarm Report

  • Notifications

    E-mail & FTP notifications with Image attached (Including Pre & Post Alarm Buffering)

  • Security

    Channel-based user password protection for live video, PTZ, alarm output, and audio options

  • Network Connection

    Ethernet (1 x Megabyte 10/100 Base-T)

  • Transmission Speed Live

    20fps @ D1 (704x480)

  • Protocols

    HTTP, RTP/RTSP, TCP/IP, FTP, Telnet, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPNP

  • Web Viewer

    Live, PTZ Control, Playback Minimum PC Requirements: Windows XP, or higher IE 6.x, or later/ Pentium4, 2GHz, 2G(RAM) Video Card(256MB RAM, 1024x768)

  • Client Software

    DW Spectrum IPVMS

  • Operating Temperature

    -10 Degree C - 50 Degree C / 14 Degree F - 122 Degree F

  • Operating Humidity

    Less than 90% (Non-Condensing)

  • Electrical Power Requirement

    12V (1A) [AC100-240V, 50/60Hz, 300mA]

  • Power Consumption

    DC12: 600mA

  • Dimensions

    5.82 X 4.64 X 0.98 "/148(W)x118(D)x25(H) mm

  • Weight

    0.55lb /0.25Kg

  • UPC Code

    813379012822

About Digital Watchdog DW-CP04

Explore the advanced capabilities of the Compressor 4 Channel 120 fps Dual Codec Analog to IP Video Encoder, a robust and reliable solution for your video surveillance needs. This high-quality video encoder seamlessly converts signals from up to four analog cameras into IP signals, delivering a maximum frame rate of 120fps at D1 resolution.

Experience the efficiency of this dual codec system, which supports both analog and digital inputs, making it a versatile choice for diverse surveillance setups. With its two-way audio feature, you can communicate directly through your surveillance system, enhancing its functionality.

The PTZ control feature allows for precise camera adjustments, ensuring you capture every crucial detail. The built-in Micro SD Card slot provides local backup, safeguarding your data against potential network issues.

The intelligent motion detection feature adds an extra layer of security, alerting you to any unusual activity. The single streaming with dual codec functionality ensures smooth and uninterrupted video transmission, optimizing your network surveillance solutions.

Whether you're looking to upgrade your CCTV system, enhance your live streaming setup, or improve remote monitoring capabilities, the Compressor 4 Channel 120 fps Dual Codec Analog to IP Video Encoder is a durable and efficient choice, designed to get the most out of both analog and IP platforms.

Digital Watchdog DW-CP04 Features

  • Convert Four (4) Analog BNC Cameras to an IP Signal
  • Real-time D1 Resolution, 120fps Recording (4 Channels)
  • Fully Compatible with Digital Watchdog's DW Spectrum IPVMS (single license, no annual or renewal fees)
  • 4 Alarm Inputs, 4 Alarm Outputs
  • Dual Codec (H.264/ MJPEG) in a Single Stream
  • RS-232 and RS-485 Interface for PTZ Control
  • Motion Detection
  • Event Notifications via E-mail with Image
  • Frame Rate and Bandwidth Control
  • PSIA (v1.0) Conformant
  • ONVIF Conformant, Profile S

Key Features

  • Capture analog video with the Digital Watchdog encoder, streaming up to 120fps at D1.
  • Dual codec (H.264/MJPEG) offers flexible video encoding for your specific needs.
  • Remote control PTZ cameras via RS-485, supporting Pelco, Samsung, and Honeywell.
  • Get alarm notifications via E-mail & FTP with pre & post alarm buffering included.
  • Utilize onboard Micro SDHC storage (up to 32GB) for local video recording; SD card not included.
  • Ensure reliable wireless connectivity with Ethernet (10/100 Base-T) network connection.

What's in the box:

  • 4 Channel Video Encoder
  • Power Cable & SMPS DC12V 1A Adapter
  • User Manual
  • CD
  • 5 Year Limited Warranty
