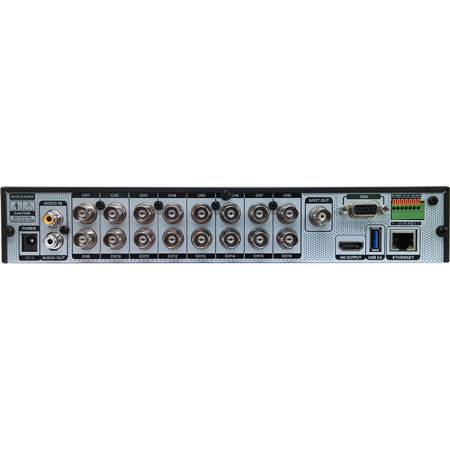

Digital Watchdog 16-Channel Universal HD Analog to IP Signal Encoder

SKU: DWCPUHD16 MFR: DW-CPUHD16
Earn VIP Reward Points

Key Features

  • Seamlessly convert 16 channels of HD analog video to IP with this universal encoder.
  • Experience high-quality video streaming with up to 480fps at 1080p resolution.
  • Ensure comprehensive surveillance with support for HD-TVI, HD-CVI, and standard analog.
  • Utilize H.264 encoding for efficient video compression and dual streaming capabilities.
  • Manage your security system remotely via web viewer or DW Spectrum IPVMS software.
  • Enhance security with motion detection and alarm notifications for prompt alerts.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$59.99

2 Year

$99.99

3 Year

$159.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Digital Watchdog Encoder Specifications

Video
  • Video Input

    16 CH, CVBS, 1.0Vp-p with 75 BNC Connector

  • Video Signal Type

    HD-Analog / HD-TVI / HD-CVI / Analog up to 960H

  • Video Live: Frame Rate

    Max. 480fps at 1080p
    Max. 240fps at 3MP (HD-TVI 3MP at 15fps)

  • Video Live: Resolution

    1st stream: 1920x1080 / Max 3MP
    2nd stream: 480x240 / Max 640x480

  • Video Output

    HD Output (MAX Resolution : 3840 x 2160 at 30 fps), Spot Output (D1 Display Resolution)

  • Audio

    Input: 1 Input
    Output: 1 Output
    Audio Codec: PCM

  • Alarm: Sensor Input

    4 Input

  • Alarm: Alarm Out

    1 Output

  • Operating System

    Embedded Linux

  • Serial: RS-485 / UTC

    1 PTZ Support: Pelco-D/P (DW Spectrum IPVMS Integration Coming Soon)
    Camera OSD and PTZ control via Coax (HD-Analog / HD-TVI / HD-CVI)

  • User Interface: Menu Display

    Graphical User Interface (GUI)

  • User Interface: Control Methods

    IR Remote Control (Optional), USB Mouse

  • Video Encoding

    H.264 with dual streaming

Performance

Jump to...
  • Functions

    Motion Detection: 16x12 grid
    Alarm Management: Motion Detection, Input (DW Spectrum IPVMS Integration Coming Soon), Video Loss
    Notifications: Trigger Alarm Output, E-Mail notifications with Snapshot (DW Spectrum IPVMS Integration Coming Soon)
    Security: Password protected user levels

Network

Jump to...
  • Network Connection

    Ethernet (1 x Gigabit 10/100/1000 Gbps)

  • Streaming: Transmission Speed Live

    Up to 480fps total at up to 1080p
    Up to 240fps total at 3MP (HD-TVI 3MP at 15fps)

  • Bandwidth

    Max 130Mbps

  • Protocols

    UPnP, TCP, HTTP, DHCP, RTSP, IPv4, DNS

  • Access: Web Viewer

    Internet Explorer 9 or higher with Live View and Remote Setup

  • Access: Client Monitoring Software

    DW Spectrum IPVMS

Electrical

Jump to...
  • Power Requirement

    12V DC

  • Power Consumption

    60W, 5A

General

Jump to...
  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Operating Humidity

    Less than 80% (Non-Condensing)

  • Dimensions

    11.02 x 9.65 x 1.89" (27.99 x 24.51 x 4.80cm)

  • Weight

    5.56 lbs (2.52kg)

  • UPC Code

    813379019067

About Digital Watchdog Encoder

Let the Compressor Analog to IP Signal Encoder revolutionize your surveillance system by converting signals from 16 HD-Analog, HD-TVI, HD-CVI, or 960H cameras into real-time IP streams. With a frame rate of 30fps at 1080p and up to 3MP resolution, this advanced encoder ensures high-quality video output. It is fully integrated with the Windows-based DW Spectrum IPVMS, making it a cost-effective solution for systems utilizing both analog and IP cameras.

This universal HD encoder supports all HD analog formats and all analog up to 960H, offering a seamless path to IP. Connect your analog cameras to DW Spectrum IPVMS with ease, and look forward to Linux integration in the near future.

The Compressor Encoder allows you to convert up to 16 analog cameras to an IP video signal, with real-time 480fps at 1080p resolution output and up to 240fps at 3MP resolution output. It features a VMAX 2.0 intuitive graphical user interface (GUI) and offers camera OSD and PTZ control via Coax (UTC), with DW Spectrum IPVMS integration coming soon.

This efficient encoder works with DW Spectrum IPVMS recording License (needs qty 4 DW-SPCP04LSC004 for 16 Analog Channels, sold separately), and offers motion detection via DW Spectrum IPVMS. It also includes 1x RS-485 for PTZ control, search and playback via DW Spectrum IPVMS, frame rate and bandwidth control, and alarm input/output.

Stay informed with motion event notifications with snapshot via DW Spectrum IPVMS and event notifications for alarm input/output via email. The Compressor Encoder is also rack-mountable for your convenience.

The Universal HD Compressor is the simplest way to merge an existing analog solution with an IP DW Spectrum IPVMS system. With support for all 960H and below resolution Analog Cameras and Universal HD Coax Formats (1080p Resolution via Coax), the encoder can be integrated into an existing analog application and add on the benefits of all the powerful analytical monitoring power of the DW Spectrum IPVMS software. This allows for optimal financial flexibility and ROI, with individual components of an entire solution updated separately.

Experience the convenience of PTZ and OSD Control via Coax (UTC). UTC (Up The Coax) allows a user to access the camera's OSD (On Screen Display) through a coaxial connection, eliminating the need for an additional RS485 cable to reach the menu. Upgrade your surveillance system with the Compressor Analog to IP Signal Encoder, a reliable and high-quality solution for your security needs.

Digital Watchdog Encoder Features

  • High-performance analog to IP signal encoder, converting 16 HD-Analog, HD-TVI, HD-CVI, or 960H cameras into IP streams
  • Real-time 30fps 1080p and up to 3MP resolution for high-quality video output
  • Fully integrated with Windows-based DW Spectrum IPVMS, offering seamless compatibility
  • Supports all HD analog formats and all analog up to 960H, providing universal compatibility
  • Features VMAX 2.0 intuitive graphical user interface (GUI) and PTZ control via Coax (UTC)
  • Provides motion detection, event notifications, and alarm input/output via DW Spectrum IPVMS for enhanced security monitoring

Key Features

  • Seamlessly convert 16 channels of HD analog video to IP with this universal encoder.
  • Experience high-quality video streaming with up to 480fps at 1080p resolution.
  • Ensure comprehensive surveillance with support for HD-TVI, HD-CVI, and standard analog.
  • Utilize H.264 encoding for efficient video compression and dual streaming capabilities.
  • Manage your security system remotely via web viewer or DW Spectrum IPVMS software.
  • Enhance security with motion detection and alarm notifications for prompt alerts.

What's in the box:

  • Digital Watchdog 16-Channel Universal HD Analog to IP Signal Encoder
  • 12V DC Adaptor and Power Cable
  • USB Mouse
  • 4x Screws (Top Cover)
  • Digital Watchdog 5 Year Warranty
