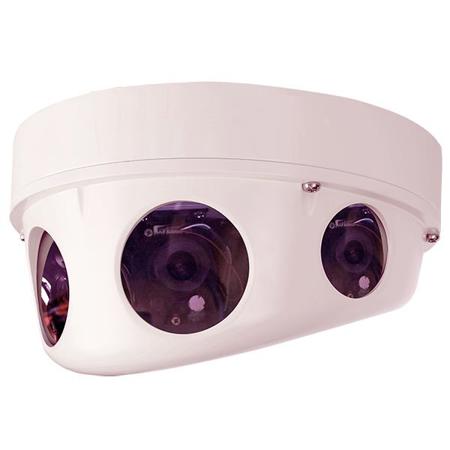

Digital Watchdog DWC-PZV2M72T 48MP(4x12MP) Outdoor Day & Night Panoramic 180 Degree IP Vandal Dome Camera, 4x7.2mm Auto Focus Fixed Lens, 16000x3000, 15fps, H.264, PoE

SKU: DWCPZV2M72T

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Watchdog DWC-PZV2M72T Specifications

  • Total Pixels (H X V)

    4000 x 3000 (per sensor)

  • Image Sensor

    Four 1/2.3" 12MP CMOS Sensors

  • Minimum Illumination

    F2.4 (30IRE): 0.5Lux [Color], F2.4 (30IRE): 0.1Lux [B&W]

  • Resolution

    48MP (4x 12MP)

  • Focal Length

    Four 7.2mm Lenses

  • Lens Type

    Fixed Lens

  • Horizontal Field of View

    48MP Mode: 48 deg. HFOV per image, 185 deg. total HFOV
    32MP Mode: 46 deg. HFOV per image, 180 deg. total HFOV

  • Frame Rate

    48MP: 15fps per sensor
    32MP: 30fps per sensor

  • LAN

    IEEE 802.3at compliant, 1000Base-T

  • Maximum User Access

    2 Simultaneous Users

  • Protocols

    TCP/IP, DHCP, UDP, RTSP,NTP, RTP,Zeroconf, UpnP, Telnet

  • Streaming Capability

    1 main high resolution, 1 low resolution streams

  • Video Compression Type

    H.264

  • Video Management Software

    DW Spectrum IPVMS

  • Web Viewer

    Browser: IE, Chrome, Firefox
    OS: Windows 7, Windows 8, Windows 10, Vista, XP, 2000

  • Auto Gain Control

    Max 42dB

  • Auto White Balance

    Auto / Indoor / Outdoor / Manual

  • Brightness

    -255 - 255 (Default Value: 0)

  • Day/ Night

    Auto/ Day (Color)/ Night (B/W)

  • Sharpness

    0-10

  • 3D Digital Noise Reduction

    OFF / LOW / MIDDLE / HIGH

  • Shutter Mode

    Auto/ 1/25 Sec - 1/10000 Sec

  • Shutter Speed

    Auto, 1/7.5-1/32000

  • Backlight Compensation

    On, Off

  • Operating Humidity

    Less than 80% (Non-Condensing)

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Power Consumption

    12VDC: 22.5W
    PoE+: 25.5W

  • Voltage

    12V DC, PoE+ [IEEE802.3at, PoE Plus]

  • Housing Material

    Aluminum Die-casting

  • Housing Type

    Panoramic Outdoor Dome

  • Dimensions

    7.5 x 4.25" / 190.50 x 107.95mm

  • Weight

    4.4lbs / 2.00kg

About Digital Watchdog DWC-PZV2M72T

The multi-sensor MEGApix PANO 48MP 180deg. View Camera uses four 12MP CMOS sensors to produce 180deg. views at up to 15fps at 48MP and 30fps at 32MP resolution via a single PoE Plus connection. The camera's remote alignment and field of view adjustment delivers unbeatable image quality. The camera comes in an IP66-rated weather resistant enclosure with anti-reflective glass and Cleanview Self Cleaning Technology.

• 48MP 180deg. Panoramic Camera
• 4x 12MP CMOS Sensors
• Single Network Connection/One Recording License
• Fast Frame Rates: 15fps at 48MP / Real-time 30fps at 32MP
• 4x7.2mm Auto Focus Fixed Lens
• Zero Distortion Anti-reflective Glass
• CleanView Hydrophobic Self Cleaning Glass Coating
• Easy Image Alignment and Stitching
• Smart DNR 3D Digital Noise Reduction
• True Day/Night with Mechanical IR Cut Filter
• Advanced 1.0Ghz Dual Core Video Processors
• Web Server Built-in
• Dual Codecs with Simultaneous Dual-Stream
• Auto Gain Control (AGC)
• Backlight Compensation (BLC)
• Auto White Balance (AWB)
• Motion Detection
• PoE Plus and DC12V
• IP66 Rated Weather Resistant

Smart DNR 3D Digital Noise Reduction
Smart DNR 3D Digital Noise Reduction increases the camera's clarity in very low light environments by using a unique algorithm to clean electronic noise signals that can reduce the camera's visibility and trigger false motion detection events. Digital Watchdog's special noise reduction technology allows the camera to produce clearer images in both color and B/W in low light without creating lag or ghost effects in the image.

CleanView Hydrophobic Dome Coating Repels Water, Dust and Grease
Digital Watchdog's new CleanView dome enclosures repel water and dust to maintain a camera's image quality. A technologically-advanced coating alleviates

spotting and smudges that can affect the performance of the camera. TDN [True Day/Night] with IR Cut Filter
During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

What's in the box:

  • Digital Watchdog DWC-PZV2M72T 48MP(4x12MP) Outdoor Day & Night Panoramic 180 Degree IP Vandal Dome Camera
  • Torx Wrench
  • Mounting Hardware
  • Template Sheet
  • Digital Watchdog 5 Year Warranty
