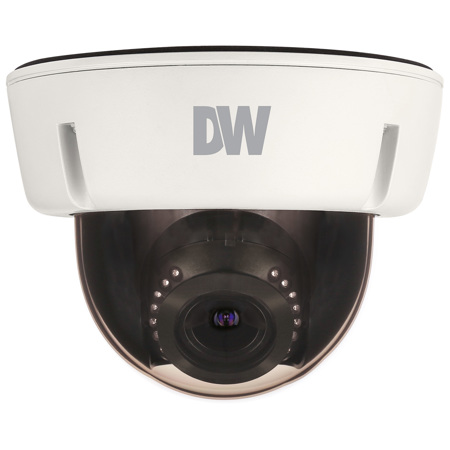

Digital Watchdog DWC-V6263WTIR 2.1MP Indoor/Outdoor Day & Night Universal HD Analog Dome Camera with STAR-LIGHT Technology, WDR, 2.8-12mm Varifocal P-Iris Lens, 1920x1080, 30fps, 100' Night Vision, Vandal Resistance

SKU: DWCV6263WTIR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Watchdog DWC-V6263WTIR Specifications

  • Image Sensor

    2.1MP 1/3" CMOS Sensor

  • Active Pixels

    HxV: 1944x1092

  • Scanning System

    Progressive scan

  • Frequency

    60Hz/50Hz

  • Video Output

    HD-Analog, HD-TVI, HD-CVI 2.1MP 1080p
    CVBS Analog up to 960H

  • Synchronization

    Internal

  • Resolution

    1920x1080 (1080p)

  • Minimum Scene Illumination

    F1.4 (30IRE): 0.03 Lux (Color)
    F1.4 (30IRE): 0 Lux (B/W)

  • S/N Ratio

    55dB

  • Signal Technology

    Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support

  • Alarm Output

    1 Alarm Output

  • Focal Length

    2.8-12mm

  • Lens Type

    Varifocal P-Iris Lens

  • IR Distance

    100' (30.48m)

Operational

Jump to...
  • Shutter Speed

    1/30 - 1/30,000

  • Backlight

    Off/ On

  • STAR-LIGHT (Sense-up)

    OFF, x2 -x32

  • Smart DNR 3D Digital Noise Reduction

    Off, Low, Middle, High

  • Wide Dynamic Range

    Off/ On/
    100dB

  • White Balance

    Auto / Auto-Ex / Preset / Manual

  • Day and Night

    Day/ Night/ Auto

  • Mirror/ Flip

    Yes

  • Auto Gain Control

    Max 60dB

  • Motion Detection

    Yes

  • Privacy Zones

    16 Privacy Zones

  • Sharpness

    0 - 10

  • Gamma

    0.45 - 0.75

  • RS485 / UTP Built-in

    PELCO D / PELCO C

  • Digital Zoom

    x1.0 - x16.0

Environmental

Jump to...
  • Operating Temperature

    -4 to 122 deg. F (-20 to 50 deg. C)

  • Operating Humidity

    Less than 90% (Non-Condensing)

  • IP Rating

    IP66 Certified Weather and Tamper Resistant

  • IK Rating

    IK10-Rated Impact Resistant

  • Other Certifications

    FCC, CE, ROHS

Electrical

Jump to...
  • Power Requirements

    DC12V / AC24V Dual Voltage

  • Power Consumption

    DC12V (LED OFF): 2.94W
    DC12V (LED ON): 5.22W
    AC24V (LED OFF): 2.5W
    AC24V (LED ON): 4.35W

General

Jump to...
  • Material

    Aluminum

  • Dimensions

    5.7 x 4.28" (144.78 x 108.71mm)

  • Weight

    1.65 lbs (0.75kg)

  • UPC Code

    813379019814

About Digital Watchdog DWC-V6263WTIR

STAR-LIGHT 2.1MP Universal HD over COAX cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. The vandal dome cameras are IP66 rated and include CleanView dome treatment, that repels water, dust and grime. STAR-LIGHT Universal HD over COAX cameras are engineered to work with our VMAX A1 Universal HD over COAX DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.

Universal HD Coax Technology supports All HD-Analog and All Analog to 960H
The Universal HD Complete Solutions are the best way to upgrade an existing analog solution to high definition. Universal HD supports HD-Analog, HD-TVI, HD-CVI and CVBS analog signals to 960H.

Star-Light Super Low Light Technology
Star-Light Technology provides crisp clear images in both color and Black and White in extreme low light conditions. Star-Light technology offers a slow shutter feature that increases the length of time the shutter remains open to collect additional light, illuminating typically dark environments. The technology also utilizes Digital Noise Reduction and Highlight Masking Exposure to enhance the image clarity, offering a clear image in any lighting condition.

CleanView Hydrophobic Dome Coating Repels Water, Dust and Grease

Digital Watchdog's new CleanView dome enclosures repel water and dust to maintain a camera's image quality. A technologically-advanced coating alleviates spotting and smudges that can affect the performance of the camera.

Digital Watchdog DWC-V6263WTIR Features

  • Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
  • STAR-LIGHT Super Low Light Technology
  • 2.1MP 1/3" Image Sensor at Real-time 30fps
  • 2.8-12mm Varifocal P-Iris Lens
  • True Wide Dynamic Range (WDR)
  • OSD Control Via Coaxial (UTC)
  • CleanView Hydrophobic Dome Coating Repels Water, Dust and Grease
  • 100' Smart IR with Intelligent Camera Sync
  • Smart DNR 3D Digital Noise Reduction
  • True Day/Night Mechanical IR Cut Filter
  • De-Fog Extreme Weather Image Compensation
  • Highlight Masking Exposure (HME)
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Backlight Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • IP66 Certified Weather and Tamper Resistant
  • IK-10 Impact Rated
  • 5 Year Warranty

Key Features

  • Capture clear video with the 2.1MP HD Analog Dome Camera, perfect for detailed surveillance.
  • See clearly at night with 100' night vision, ensuring your property is always protected.
  • This outdoor security camera is weatherproof (IP66) and vandal-resistant (IK10) for durability.
  • Enjoy wide dynamic range (WDR) for balanced lighting in any condition with this security system.
  • Easily adjust the 2.8-12mm varifocal lens for optimal viewing angles and customized surveillance.
  • Get universal HD over coax tech with this security camera, compatible with multiple signal types.

What's in the box:

  • Digital Watchdog DWC-V6263WTIR 2.1MP Indoor/Outdoor Day & Night Universal HD Analog Dome Camera
  • Torx Wrench
  • Test Video Cable
  • DC Plug
  • Template Sheet
  • 4x Screws & Plastic Anchors
  • Digital Watchdog 5 Year Warranty
