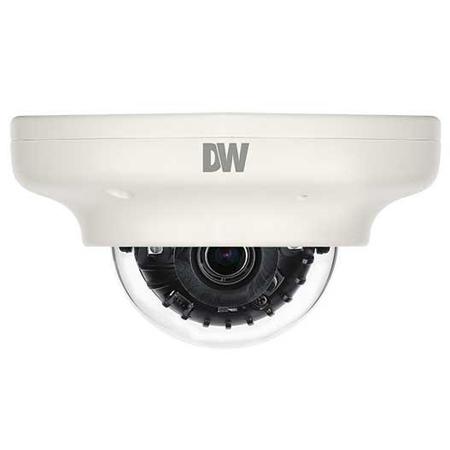

Digital Watchdog DWC-V7753WTIR 2.1MP Analog HD Camera, 50'IR, Wide Dynamic Range
See all Digital Watchdog items

Digital Watchdog DWC-V7753WTIR 2.1MP Outdoor Day & Night Star Light Analog HD Camera, 3.6mm Fixed Lens, 1920x1080, 30fps, 50' Smart IR, Wide Dynamic Range

SKU: DWCV7753WTIR

This item is no longer available.

Recommended Alternatives

Digital Watchdog DWC-D4283WTIR: Picture 1 regular
Digital Watchdog DWC-D4283WTIR 2.1MP Analog Dome Camera, 2.8-12mm Motorized Lens
$308.60$233.49
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Digital Watchdog DWC-V7753WTIR Specifications

  • Image Sensor

    Panasonic 1/3" CMOS

  • Active Pixels (H x V)

    1944 (H) x 1092 (V)

  • Scanning System

    Progressive Scan

  • Frequency

    60Hz / 50Hz

  • Signal Technology

    2.0 Megapixel AHD

  • Synchronization

    Internal

  • Resolution

    1920x1080 (1080p)

  • Minimum Scene Illumination

    F2.0 (30IRE): 0.7Lux [Color] F2.0 (30IRE): 0 Lux [B&W]

  • S/N Ratio- Signal to Noise Ratio

    55dB

  • Video Output

    AHD 1080p30fps / 720p60fps / 720p30fps

  • Focal Length

    3.6mm

  • Lens Type

    Fixed Lens

  • IR Distance

    50' / 15.24m

  • Shutter Speed

    1/30(25) - 1/30,000

  • Backlight Compensation

    Off / On

  • STAR-LIGHT (Sense-up)

    Off, x2 - x32

  • Wide Dynamic Range (WDR)

    Off / On

  • Digital Noise Reduction

    Off, Low, Middle, High

  • White Balance

    Auto / Auto-Ex / Preset / Manual

  • Day and Night

    Day / Night / Auto

  • Mirror / Flip

    Yes

  • Auto Gain Control

    Max 60dB

  • Motion Detection

    Yes

  • Privacy Zones

    16 Privacy Zones

  • Sharpness

    0 - 10

  • Gamma

    0.45 - 0.75

  • Digital Zoom

    x1.0 - x16.0

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    Less than 90% (Non-Condensing)

  • IP Rating

    IP67 (Weather Resistant)

  • Other Certifications

    FCC, CE, ROHS

  • Power Requirements

    DC12V

  • Power Consumption

    LED Off: 2.15W, 179mA, LED On: 3.64W, 3.3mA

  • Material

    Aluminum

  • Dimensions

    4.13 x 2.39" / 104.90 x 60.71mm

  • Weight

    0.95lbs / 0.43kg

  • UPC Code

    813379015717

About Digital Watchdog DWC-V7753WTIR

Groundbreaking STAR-LIGHT AHD High Definition Cameras use existing coaxial cables to transmit crystal-clear detailed 1080p images. The cameras offer 2.1MP resolution along with powerful features such as P-Iris Lens, Double Shutter Wide Dynamic Range (WDR) and True Day/Night with Mechanical IR Cut Filter. The STAR-LIGHT AHD cameras are engineered to work with VMAX AHD DVRs, offering an easy upgrade from analog to high definition surveillance using existing infrastructure for a cost-effective, high resolution surveillance solution.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Digital Watchdog DWC-V7753WTIR 2.1MP Outdoor Day & Night Star Light Analog HD Camera
  • Digital Watchdog 5 Year Warranty
