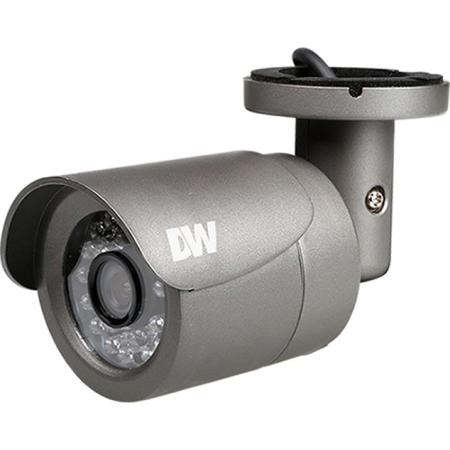

Digital Watchdog DWC-MB721M8TIR 2.1MP Weather Resistant Day & Night IP Bullet Camera, 8mm Fixed Lens, 1920x1080, 30fps, 50' Smart IR, H.264, MPEG4, MJPEG, OnVIF Compliant, PoE

SKU: DWMB721M8TIR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Watchdog DWC-MB721M8TIR Specifications

  • Effective Pixels (H X V)

    1920 x 1080

  • Image Sensor

    1/2.8" Sony CMOS Sensor

  • Minimum Illumination

    F2.5 (30IRE): 0.5 Lux [Color] F2.5 (30IRE): 0.00 Lux [B&W]

  • Resolution

    2.1 Megapixels (1080P, 30fps)

  • Focal Length

    8.0mm Fixed Lens, F1.8

  • IR Distance

    50' Range IR

  • Lens Type

    Fixed Lens

  • Zoom

    12x Digital Zoom

  • Frame Rate

    Up to 30 frames per second at 2.1MP

  • LAN

    802.3 Compliance 10/100 LAN

  • Maximum User Access

    5 Simultaneous Users

  • Protocols

    TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast

  • SD Card Backup

    Up to 24 Hours to Micro SD Card (4-32GB) for Network Loss Emergency Recording Only (Card not included)

  • Streaming Capability

    Simultaneous Dual-Stream

  • Video Compression Type

    H.264, MPEG4, MJPEG

  • Video Management Software

    DW Spectrum

  • Web Viewer

    OS: Windows XP / Vista / 7, MAC OS Browser: Internet Explorer, Chrome, Firefox, Safari.

  • 3D Digital Noise Reduction

    OFF / LOW / MIDDLE / HIGH

  • Auto Gain Control

    Max 41dB

  • Alarm Notifications

    Notifications Via E-mail

  • Backlight Compensation

    ON/OFF

  • Day/ Night

    Auto, Day (Color), Night (B/W)

  • Digital Slow Shutter

    Off, up to 8x

  • Programmable Privacy Zones

    OFF / ON (16 Programmable Zones)

  • Recording Schedule

    Continuous, Motion, Pre- & Post-Alarm

  • Sharpness

    0-10

  • Wide Dynamic Range

    Off, Low, Medium, High

  • NEMA RATING

    IP66 (Protects against dust and high pressure water)

  • Operating Humidity

    Less than 90% (Non-Condensing)

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Power Consumption

    LED Off: 3.5W, 290mA LED On: 5W, 430mA (Max 500mA)

  • Voltage

    DC 12V, PoE (IEEE802.3af Class 2)

  • Housing Material

    Aluminum Die-Casting

  • Housing Type

    Bullet

  • Dimensions

    6.36 x 2.66" / 161.54 x 67.56mm

  • Weight

    0.93lbs / 0.42kg

About Digital Watchdog DWC-MB721M8TIR

The MEGAPIX IP cameras provide real-time 2.1MP (1080P) resolution with features such as 3D DNR, WDR and Smart IR, delivering superb image in any environment. And PoE simplifies installation, connecting power and network through a single cable. All cameras are OnVIF compliant, guaranteeing successful integration with any open platform solution.

• 2.1 Megapixel Image Sensor (1080P, 30fps)
• Wide Dynamic Range (WDR)
• Triple Codecs (H.264, MJPEG, MPEG4) with Simultaneous Dual-Stream
• 8.0mm Fixed Lens
• Smart IR with Intelligent Camera Sync. 50ft Range
• True Day/Night with Mechanical IR Cut Filter
• Smart DNR 3D Digital Noise Reduction
• Manual IR Activation
• Auto Gain Control (AGC)
• Back Light Compensation (BLC)
• Auto White Balance (AWB)
• Programmable Privacy Zones
• Motion Detection
• Micro SD/SDHC Class 10 Card Slot for Emergency Backup [card not included]
• Web Server Built-in
• PoE and DC12V
• OnVIF Compliant, Profile S
• IP66 Certified (Weather Resistant)

PoE Support to Power IP Cameras Locally
The NVR's local PoE interface enables the NVR, combined with the DWC-BVI2IR, 2.1MP bullet cameras as a simple plug-n-play solution with the cameras powered, configured and controlled all from the NVR's local GUI.

Smart IR
Smart IR adjusts the image for IR cameras to eliminate LED light reflection and white spots in the image. By breaking down the camera's field of view into five zones, Smart IR allows for even distribution of the IR light. This prevents excessive illumination on images that are in the front of the scene and offers a clear image in B/W without any loss of detail.

TDN [True Day/Night] with IR Cut Filter
During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

Triple Codecs (H.264, MJPEG, MPEG4) with Simultaneous Dual-Stream
The cameras allow you to optimize your bandwidth usage, by offering simultaneous streaming. This allows you to stream high resolution for live monitoring and motion events and setup a lower resolution streaming profile for when no activity is detected. This allows the camera to seamlessly transition between low and high resolution streams to maximize bandwidth usage, reduce network traffic and improve your overall system's performance and power.

What's in the box:

  • Digital Watchdog DWC-MB721M8TIR 2.1MP Outdoor Day & Night IP Bullet Camera
  • Mounting Template
  • Software CD
  • 4x Screw
  • 4x Dry Wall Anchor
  • L-Wrench
  • Digital Watchdog 5 Year Warranty
