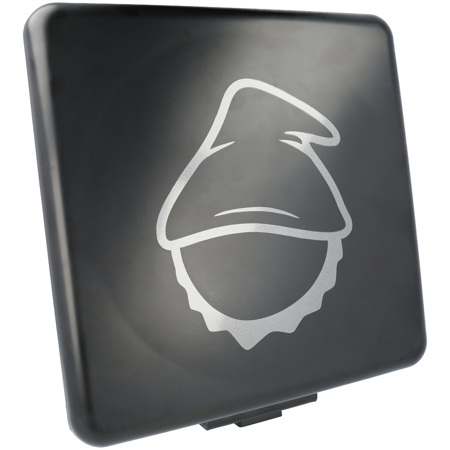

Dwarf Connection DC-LINK-RE2 MIMO Antenna for DC-LINK LR2 and ULR1
See all Dwarf Connection items

Dwarf Connection DC-LINK-RE2 MIMO Antenna for DC-LINK LR2 and ULR1

SKU: DWRE2

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dwarf Connection RE-2 Specifications

  • Frequency Range

    5.0 to 5.9 GHz

  • Gain

    14 +/- -0.5dBi

  • F/B Ratio

    > 25dB

  • Isolation

    > 26dB

  • Horizontal Beam Width

    40 +/- 5 Degree

  • Vertical Beam Width

    40 +/- 5 Degree

  • VSWR

    < 2.0

  • Polarization

    5 Ports: 3 vertical ports, 2 ports +/- 45 Degree

  • Maximum Power

    100W

  • Impedance

    50 ohms

  • Operating Temperature

    -40 Degree F to 131 Degree F (-40 Degree C to +55 Degree C)

  • Connection Type

    5x N-K

  • Lightning Conduction

    DC-Ground

  • Installation

    Bracket

  • Antenna Material

    ABS

  • Dimensions (W x D x H)

    12 x 12 x 0.98" (305 x 305 x 25mm)

  • Weight

    Antenna and Accessories: 4.34 lbs (1.97kg)
    Antenna and Receiver: 5.75 lbs (2.6kg)

About Dwarf Connection RE-2

The DC-LINK-RE2 is a MiMo antenna, that improves stability and transfer rates for 5 GHz video receivers. The RE2 antenna panel is perfect wireless video receivers with external antennas, e.g. the ULR1. It can be used indoors as well as outdoors and is the perfect accessory for challenging environments with a multitude of wireless signals.

Dwarf Connection RE-2 Features

  • MiMo anenna improves transmission rates fpr 5 GHz video receivers
  • Can be used indoors and outdoors
  • Ideal for challenging encironments with interfering signals
  • Improves range from 300m up to 600m

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • MiMo anenna improves transmission rates fpr 5 GHz video receivers
  • Can be used indoors and outdoors
  • Ideal for challenging encironments with interfering signals
  • Improves range from 300m up to 600m

What's in the box:

  • Dwarf Connection RE Antenna
  • Bracket
  • 5x NJWX to SMA Coaxial Cable
  • Accessory Box
  • Multiple Installation Screws
  • Dwarf Connection 1 Year Limited Warranty
