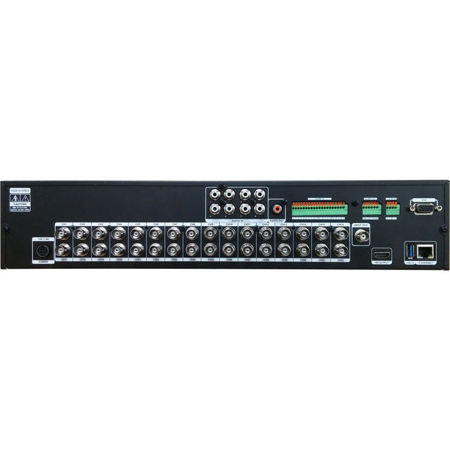

Digital Watchdog VMAX A1 Universal HD 32-Channel 960H DVR with 16TB HDD, Up to 480 fps at 1080p Recording/Playback, H.264

SKU: DWVAONE3216T MFR: DW-VAONE3216T
Earn VIP Reward Points

Key Features

  • Capture every detail with crystal-clear 1080p recording on all 32 channels.
  • Massive 16TB HDD pre-installed for extensive video storage; upgradeable to 32TB.
  • Stay connected with remote access via mobile app for Apple & Android devices.
  • Advanced motion detection alerts you instantly of any suspicious activity.
  • Enjoy high-resolution night vision, ensuring clear footage even in total darkness.
  • Easy setup gets your surveillance system running quickly, safeguarding your property.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$209.00

2 Year

$349.00

3 Year

$549.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Digital Watchdog VMAX A1 Specifications

Video
  • Video Signals Supported

    Analog Signal up to 960H, ALL HD Analog

  • Video Input

    32 Channels

  • Video Live: Frame Rate

    1 to 30fps, max 480fps total

  • Video Live: Resolution

    All HD Analog 720p (not CVI 720p) and 1080p Cameras and All Analog Resolutions up to 960H

  • Video Output

    HD Output (MAX Resolution: 3840 x 2160 at 30 fps), Spot Output (D1 Display Resolution), VGA

  • Audio Input

    8 Input

  • Audio Output

    1 Output

  • Audio Codec

    G.711A

  • Alarm Sensor Input

    16 Input

  • Alarm Out

    2 Output

  • Operating System

    Embedded Linux

  • Serial

    Control I/O, 2x RS485 for keyboard and PTZ control

  • User Interface: Menu Display

    Graphical User Interface (GUI)

  • User Interface: Control Methods

    IR Remote Control, USB Mouse

  • Screen Display Mode

    1,4,9,16,25,32, Sequence

  • Screen Resolution

    3840 x 2160, 1920x1080P, 1280x1024, 1024x768

Recording

Jump to...
  • Compression

    H.264

  • Recording Mode

    Schedule, Event, Panic, Continuous, Pre & Post Event, Motion, Recording Configuration per Channel

  • Pre Recording

    1 to 5 Seconds

  • Post Recording

    5 to 15 Seconds

  • Recording Rate

    Up to 480fps total at up to 1080p

  • Recording Resolutions

    All HD Analog 720p (not CVI 720p) and 1080p Cameras and All Analog Resolutions up to 960H

Playback

Jump to...
  • Playback Rate

    Up to 480fps total at up to 1080p

  • Playback Resolution

    All HD Analog 720p (not CVI 720p) and 1080p Cameras and All Analog Resolutions up to 960H

  • Fast Forward Functions

    x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32

  • Playback Functions

    First Data, Last Data, Date/Time, Record Table, Calendar, Bookmark, System Log

Storage

Jump to...
  • HDD Interface

    4 HDD

  • Storage

    16TB preinstalled, supports Up to 32TB

  • External Backup Storage

    USB Flash Drive, USB HDD

  • HDD Interface Type

    SATA

  • HDD Health Check

    Temperature, S.M.A.R.T. with E-mail Notifications

Functions

Jump to...
  • Camera Color Control

    Brightness, Contrast, Saturation, Hue

  • Digital Zoom

    Yes (Live & Playback)

  • Software Upgrade

    USB Flash Drive, Network Upgrade, FTP Remote Upgrade

  • Mobile Client

    Mobile App for Apple & Android Smart Phones & Tablets

  • Covert Channel

    Yes (Live & Playback)

Network

Jump to...
  • Network Connection

    Ethernet (1x Gigabit 10/100/1000 Gpbs)

  • Maximum User Connections

    10 Simultaneous Connections

  • Streaming: Transmission Speed Live

    Up to 480fps total at up to 1080p

  • Protocols

    Static, DDNS, DHCP, uPnP, RTSP

  • Access: Web Viewer

    Live, Playback, & Configuration up to 10 Multiple Connections

  • Access: Client Monitoring Software

    Mac (Apple S/W), Pivot (CMS S/W)

Electrical

Jump to...
  • Power Requirement

    12V DC

  • Power Consumption

    9A, 108W

General

Jump to...
  • Operating Temperature/Humidity

    41 to 104 deg. F (5 to 40 deg. C), Less than 80% (Non-Condensing)

  • Dimensions

    17.04 x 3.46 x 13.77" (43.28 x 8.79 x 34.98cm)

  • Weight

    13.84 lbs (6.28kg)

  • UPC Code

    813379019005

About Digital Watchdog VMAX A1

Are you seeking an advanced and high-tech solution for your security surveillance needs Look no further than the VMAX A1 Universal HD 32-Channel 960H DVR with a 16TB HDD. This state-of-the-art DVR supports all HD Analog formats and all analog up to 960H via coaxial cables, making it an ideal choice for those looking to seamlessly upgrade to HD resolution.

This innovative DVR model comes equipped with a massive 16TB hard drive, offering extensive storage capacity for longer recording times. With the ability to record and playback video at an impressive rate of up to 480 fps at 1080p resolution, the VMAX A1 ensures comprehensive surveillance coverage.

The DVR's Universal HD Coax and 960H Signal Support make it a simple and cost-effective solution to upgrade an existing analog system. You can integrate this DVR into your current application without the immediate need to update your cameras, providing optimal financial flexibility and return on investment.

Moreover, the VMAX A1 DVR features Up the Coax (UTC) remote configuration, compatible with all corresponding cameras. This sophisticated feature allows users to access the camera's On-Screen Display (OSD) via a coaxial connection, eliminating the need for an additional RS485 cable to access the menu.

In essence, the VMAX A1 Universal HD 32-Channel 960H DVR with 16TB HDD is a sophisticated, high-performance solution designed to meet your security surveillance needs.

Digital Watchdog VMAX A1 Features

  • Universal HD DVR Records all HD Analog Formats and All Analog to 960H
  • Up to 480fps at 1080p Recording
  • Pivot Central Management Software up to 128 Channels
  • Event Camera Group Recording
  • Mobile Application for iPhone, iPad, iPod, Android Smart Phones and Tablets and Apple TV
  • Mac Compatible Remote ACS Software
  • VMAX 2.0 Intuitive Graphical User Interface (GUI)
  • OSD and PTZ Control via Coax (UTC)
  • Signal Hybrid Detects Any Camera at Any Input Automatically
  • 4K (3840 x 2160) and True HD Video Outputs
  • HDD Calculation and Auto Recording Configuration
  • Event Notifications via Email, Text and Pivot CMS
  • Advanced H.264 Embedded DVR
  • Multiplex - Live, Playback, Recording, Backup, Network, Configuration
  • USB 3.0
  • 8 Audio Input, 1 Audio Output
  • 16 Sensor Input, 2 Relay Output
  • Digital Spot Monitoring Output at D1 resolution
  • Simple & Free DDNS Service
  • Push notifications via DW Mobile Client
  • Easy Web-Based Client with Multi-User Access
  • Help Menu on Major Functions
  • Auto & Manual Firmware Upgrade Available
  • 5 Year Limited Warranty

Key Features

  • Capture every detail with crystal-clear 1080p recording on all 32 channels.
  • Massive 16TB HDD pre-installed for extensive video storage; upgradeable to 32TB.
  • Stay connected with remote access via mobile app for Apple & Android devices.
  • Advanced motion detection alerts you instantly of any suspicious activity.
  • Enjoy high-resolution night vision, ensuring clear footage even in total darkness.
  • Easy setup gets your surveillance system running quickly, safeguarding your property.

What's in the box:

  • Digital Watchdog VMAX A1 Universal HD 32 Channel 960H DVR with 16TB HDD
  • 12 VDC Adapter and Power Cable
  • USB Mouse
  • Screws
  • Quick Start Guide
  • Digital Watchdog 5 Year Limited Warranty
