Analog Signal up to 960H, ALL HD Analog
32 Channels
1 to 30fps, max 480fps total
All HD Analog 720p (not CVI 720p) and 1080p Cameras and All Analog Resolutions up to 960H
HD Output (MAX Resolution: 3840 x 2160 at 30 fps), Spot Output (D1 Display Resolution), VGA
8 Input
1 Output
G.711A
16 Input
2 Output
Embedded Linux
Control I/O, 2x RS485 for keyboard and PTZ control
Graphical User Interface (GUI)
IR Remote Control, USB Mouse
1,4,9,16,25,32, Sequence
3840 x 2160, 1920x1080P, 1280x1024, 1024x768
H.264
Schedule, Event, Panic, Continuous, Pre & Post Event, Motion, Recording Configuration per Channel
1 to 5 Seconds
5 to 15 Seconds
Up to 480fps total at up to 1080p
All HD Analog 720p (not CVI 720p) and 1080p Cameras and All Analog Resolutions up to 960H
Up to 480fps total at up to 1080p
All HD Analog 720p (not CVI 720p) and 1080p Cameras and All Analog Resolutions up to 960H
x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32
First Data, Last Data, Date/Time, Record Table, Calendar, Bookmark, System Log
4 HDD
8TB preinstalled, supports Up to 32TB
USB Flash Drive, USB HDD
SATA
Temperature, S.M.A.R.T. with E-mail Notifications
Brightness, Contrast, Saturation, Hue
Yes (Live & Playback)
USB Flash Drive, Network Upgrade, FTP Remote Upgrade
Mobile App for Apple & Android Smart Phones & Tablets
Yes (Live & Playback)
Ethernet (1x Gigabit 10/100/1000 Gpbs)
10 Simultaneous Connections
Up to 480fps total at up to 1080p
Static, DDNS, DHCP, uPnP, RTSP
Live, Playback, & Configuration up to 10 Multiple Connections
Mac (Apple S/W), Pivot (CMS S/W)
12V DC
9A, 108W
41 to 104 deg. F (5 to 40 deg. C), Less than 80% (Non-Condensing)
17.04 x 3.46 x 13.77" (43.28 x 8.79 x 34.98cm)
13.84 lbs (6.28kg)
813379018985

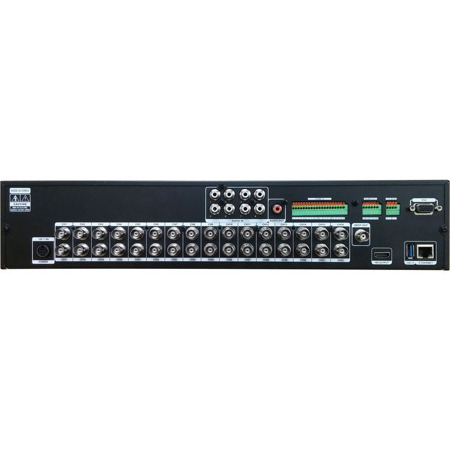

If you're seeking a sophisticated and high-tech solution for your security surveillance needs, look no further than the VMAX A1 Universal HD 32-Channel 960H DVR. This state-of-the-art device supports all HD Analog formats and analog up to 960H via coaxial cables, making it an ideal choice for those looking to upgrade their existing analog solution seamlessly.
The VMAX A1 DVR is equipped with an 8TB hard drive, providing ample storage for extended recording times. This advanced DVR can record and playback video at an impressive rate of up to 480 frames per second at 1080p resolution, ensuring clear and detailed footage.
One of the standout features of this DVR is its Universal HD Coax and 960H Signal Support. This innovative feature allows the DVR to be integrated into an existing application without the need to update the cameras simultaneously. This not only provides optimal financial flexibility but also enhances the return on investment as individual components of the entire solution can be updated separately.
Moreover, the VMAX A1 DVR offers Up the Coax (UTC) remote configuration with all compatible cameras. The UTC feature allows users to access the camera's On-Screen Display (OSD) through a coaxial connection, eliminating the need for an additional RS485 cable to reach the menu.
In short, the VMAX A1 Universal HD 32-Channel 960H DVR with 8TB HDD is a comprehensive and advanced solution for those seeking to enhance their security surveillance system. Its high number of channels and large storage capacity make it a standout choice in the market.
