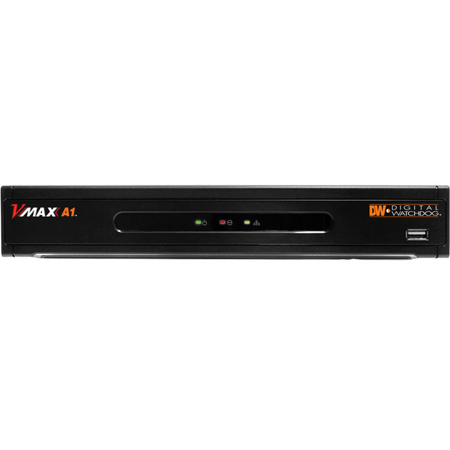

Digital Watchdog VMAX A1 4-Channel HD-TVI + Analog DVR with 3TB HDD, 60fps at 1080p, H.264

SKU: DWVAONE43T MFR: DW-VAONE43T
Earn VIP Reward Points

Key Features

  • Capture clear video with this 4-channel DVR, recording at 1080p for detailed surveillance.
  • Store weeks of footage using the pre-installed 3TB HDD, ensuring comprehensive video storage.
  • Access your security video recorder remotely via mobile app for Apple & Android devices.
  • Set up motion detection to only record when movement is detected, saving valuable storage space.
  • Enjoy round-the-clock security with excellent night vision capabilities for clear nighttime footage.
  • Easy setup with included quick start guide, so you can quickly secure your property.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$109.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Digital Watchdog VMAX A1 Specifications

Video
  • Video Input

    4 Channels

  • Video Signals Supported

    Analog Signal up to 960H, AHD, TVI

  • Video Live

    Frame Rate: 1-30fps
    Resolution: 1080p, 960x480, 960x240, 480x240

  • Video Output

    HD Output

  • Audio

    Input: 1 Input
    Output: 1 Output
    Audio Codec: PCM

  • Alarm

    Sensor Input: 4 Input
    Alarm Out: 1 Output

  • Operating System

    Embedded Linux

  • Serial

    1xRS485 for PTZ Camera & Controller, 2xUSB 2.0

  • User Interface

    Menu Display: Graphical User Interface (GUI)
    Control Methods: IR Remote Control, USB Mouse

  • Screen Display Mode

    1, 4, Sequence

  • Screen Resolution

    1920x1080P, 1280x1024, 1024x768

Performance

Jump to...
  • Compression

    H.264

  • Recording Mode

    Schedule, Event, Time-Lapse, Panic, Continuous, Pre & Post Event, Motion, Recording Configuration per Channel

  • Pre Recording

    1-5 Seconds

  • Post Recording

    5-15 Seconds

  • Recording Rate

    120fps at CIF, 480, D1, 960H, 720p
    60fps at 1080p AHD

  • Recording Resolutions

    All analog resolutions up 960H, AHD 720p and 1080p

  • Playback Rate

    Up to 30fps per Channel in Single-Channel View Mode
    Up to 15fps per Channel in Multi-Channel View Mode

  • Playback Resolution

    All analog resolutions up 960H, AHD 720p and 1080p

  • Fast Forward Functions

    x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32

  • Playback Functions

    First Data, Last Data, Date/Time, Record Table, Calendar, Bookmark, System Log

  • HDD Interface

    1 HDD

  • Max. Internal HDDs

    Up to 6TB (1HDD x 6TB), 3TB Preinstalled

  • External Storage

    USB Flash Drive, USB HDD, DVD

  • HDD Interface Type

    SATA-II, SATA-III

  • HDD Health Check

    Temperature, S.M.A.R.T. with E-mail Notifications

  • Camera Color Control

    Brightness, Contrast, Saturation, Hue

  • Digital Zoom

    Yes (Live)

  • Software Upgrade

    USB Flash Drive, Network Upgrade, FTP Remote Upgrade

  • Mobile Client

    Mobile App for Apple & Android Smart Phones & Tablets

  • Covert Channel

    Yes (Live & Playback)

Network

Jump to...
  • Network Connection

    Ethernet (1 x Gigabit 10/100/1000 Gpbs)

  • Maximum User Connections

    10 Simultaneous Connections

  • Streaming

    Transmission Speed Live:
    120fps at 960H, D1 and 720p
    60fps at 1080p

  • Streaming Protocols

    Static, DDNS, DHCP, uPnP, RTSP

  • Web Viewer

    Live, Playback, & Configuration up to 10 Multiple Connections

  • Client Monitoring Software

    MAC (Apple S/W), Pivot (CMS S/W)

General

Jump to...
  • Operating Temperature

    5 to 40 deg. C (41 to 104 deg. F)

  • Operating Humidity

    Less than 80% (Non-Condensing)

  • Power Requirement

    12V DC

  • Power Consumption

    30.96W

  • Dimensions

    11.02 x 9.65 x 1.89" (27.99 x 24.51 x 4.80cm)

  • Weight

    5.42 lbs (2.46kg)

About Digital Watchdog VMAX A1

Under the umbrella of advanced surveillance technology, the VMAX A1 4-Channel HD-TVI + Analog DVR stands out with its high-tech features and sophisticated design. This state-of-the-art digital video recorder delivers real-time HD monitoring and recording, boasting an impressive speed of up to 480fps at 960H and 720p, and 240fps at the crystal clear 1080p (1920x1080) resolution.

The VMAX A1 is not just innovative, but versatile too. It seamlessly supports analog signals up to 960H, along with TVI and Analog High Definition (AHD) signals. This means it can effortlessly leverage the robustness of your existing analog signal infrastructure, making it an ideal choice for those seeking a seamless upgrade to the detail and clarity of 1080p high definition resolution.

Available in 4-, 8-, and 16-channel configurations, the VMAX A1 is designed to meet diverse surveillance needs. Its large storage capacity, with up to 12 Terabytes of internal storage, ensures longer recording times and the ability to store more footage. This makes it perfect for security surveillance, designed to capture and store high-quality video footage from multiple cameras.

Backed by Digital Watchdog's unbeatable 5-year limited warranty, the VMAX A1 4-Channel HD-TVI + Analog DVR with 3TB HDD, 60fps at 1080p, H.264 is a reliable and high-performing addition to any security system.

Digital Watchdog VMAX A1 Features

  • Compatible with all Analog, TVI and AHD (1080p via Coax) Resolutions
  • Pivot Central Management Software, Up to 128CH
  • Mobile Application for iPhone, iPad, iPod, Android Smart Phones and Tablets
  • MAC Compatible Remote ACS Software
  • Intuitive Graphical User Interface (GUI)
  • HDD Calculation and Auto Recording Configuration
  • Event Notifications via Email, Text and Pivot CMS
  • Advanced H.264 Embedded DVR
  • Multiplex - Live, Playback, Recording, Backup, Network, Configuration
  • 120fps Recording at D1, 960H and 720p
  • 60fps Recording at 1080p
  • 1 Audio Input, 1 Audio Output
  • 4 Sensor Input, 1 Relay Output
  • Simple & Free DDNS Service
  • Easy Web-Based Client with Multi-User Access
  • Watermark Verification (Digital Signature Verification)
  • Help Menu on Major Functions
  • Auto & Manual Firmware Upgrade Available
  • 5 Year Limited Warranty

Key Features

  • Capture clear video with this 4-channel DVR, recording at 1080p for detailed surveillance.
  • Store weeks of footage using the pre-installed 3TB HDD, ensuring comprehensive video storage.
  • Access your security video recorder remotely via mobile app for Apple & Android devices.
  • Set up motion detection to only record when movement is detected, saving valuable storage space.
  • Enjoy round-the-clock security with excellent night vision capabilities for clear nighttime footage.
  • Easy setup with included quick start guide, so you can quickly secure your property.

What's in the box:

  • Digital Watchdog VMAX A1 4-Channel HD-TVI + Analog DVR with 3TB HDD
  • 12V DC Adaptor
  • USB Mouse
  • IR Remote Control
  • 4x Screws
  • Quick Start Guide
  • CD (Manual & Software)
  • Digital Watchdog 5 Year Limited Warranty
