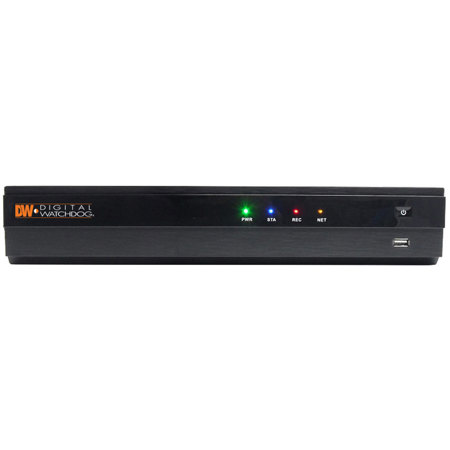

Digital Watchdog VMAX IP Plus 16-Channel, 16 PoE HD NVR with 9TB HDD

SKU: DWVP169T16P MFR: DW-VP169T16P
Earn VIP Reward Points

Key Features

  • Capture crystal-clear surveillance footage with this 16-channel HD NVR system.
  • Enjoy remote access to your security videos anytime, anywhere via mobile app.
  • Get instant alerts with advanced motion detection, enhancing your security system.
  • Store weeks of video with the massive 9TB HDD storage capacity for peace of mind.
  • Experience superior night vision, ensuring clear recordings even in total darkness.
  • Easy setup with 16 PoE ports, simplifying installation of your IP security cameras.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$139.00

2 Year

$229.00

3 Year

$349.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Digital Watchdog DW-VP169T16P Specifications

  • Operating System

    Embedded Linux

  • Channel

    16 Channel

  • No. of PoE

    16 Channel

  • Communication Protocol

    ONVIF

  • PoE Type

    1Gbps, 802.3af

  • Display Speed

    480fps

  • Screen Mode

    1, 4, 9 & 16

  • Max. HDD Bay

    4 x SATA HDD

  • Video-In

    IP Camera (Max. 5MP, 1080p Megapixel)

  • Video-Out: Monitor

    True HD and VGA

  • Video Out: Resolution

    True HD Output: 800x600, 1024x768, 1280x1024, 1920x1080

  • Recording Speed

    480fps (CIF, D1, 720P, 1080P), 270fps (5 MP) (When using the 5MP firmware, the NVR will support total 9-Channels, regardless of the camera's resolution)

  • Recording Resolution

    Dual Stream

  • Recording Modes

    Continuous, C+M, C+S, Scheduled, Sensor & Motion Detection Recording
    Pre Alarm Recording, Emergency Recording, Quick Backup

  • Playback & Search Speed

    x1, x2, x4, x8, x16, x32, x64, x100

  • Playback & Search Function

    Intelli-Search by Time Bar, Calendar (Date & Time) and Event Search

  • Audio Output

    1 Channel

  • Alarm Input / Relay Output

    4 Channel / 1 Channel

  • PTZ Control

    RS-485, ONVIF

  • Transaction Verification

    TCP and USB-Serial Interface

  • LAN

    1x Gigabit Ethernet (RJ45) - Fixed IP, DHCP & DDNS

  • Remote Software

    Pivot Pro, Web Client, Mobile Client for Android & iOS SmartPhones and Tablets

  • Backup Device

    Local Backup by USB, Network Backup by CMS

  • System Recovery after Power Failure

    Auto-Reboot and Journaling File System

  • Firmware Upgrade

    FTP, USB

  • Back Up

    USB

  • Special Features

    Local PoE Switch

  • Health check

    Real-Time System, Network and PoE Status Monitoring

  • System Operation

    IR Remote Controller, USB Mouse, PTZ Control by Keyboard (Keyboard not included)

  • Power Requirements

    110-240V A/C

  • Power Consumption

    200W Total Power Budget, 8.3A, 15.4W per PoE Port

  • Operating Temperature and Humidity

    5-40 Degree C / 20-90% RH

  • Certification

    CE & FCC & KCC & WEEE, RoHS

  • Dimension (WxDxH)

    16.53 x 15.75 x 3.46 Inch (420 x 400 x 88 mm)

  • UPC Code

    813379017063

About Digital Watchdog DW-VP169T16P

After powering up, the VMAX IP Plus 16-Channel, 16 PoE HD NVR with 9TB HDD offers a sophisticated and user-friendly security surveillance solution that simplifies the transition from analog to IP video systems. This advanced NVR is designed to support all ONVIF-compliant devices through a network connection and an integrated PoE switch, establishing the VMAX IP Plus as a versatile and high-tech option suitable for a wide range of conformant cameras.

The innovative system boasts automated camera detection and configuration, streamlining the setup process to an unprecedented level. Experience the ease of going from power-up to active monitoring in under three minutes, thanks to the intuitive VMAX user interface, which is engineered for users familiar with analog systems but new to the world of IP and megapixel technology.

This state-of-the-art NVR is offered in various configurations, including 9, 12, and 16 channels, with up to 24TB of internal storage, ensuring ample space for high-definition video recording and longer retention periods. The 9TB hard drive included with this model provides extensive storage capacity, allowing for significant archival of surveillance footage without frequent manual intervention.

Security is paramount with the VMAX IP Plus NVR, which includes CCIP System Encryption. This feature ensures that camera streams are doubly protected through user ID and password authentication, coupled with an encrypted RTSP stream that can only be accessed by the authorized VMAX IP Plus NVR, safeguarding your surveillance data against unauthorized access.

The 3-Minute Installation feature is a testament to the NVR's user-centric design. Utilize the Startup Wizard to rapidly configure the main functions of the NVR, effortlessly locate and register all connected cameras, and initiate recording in less than four minutes no technical expertise required.

For comprehensive system monitoring and analysis, the VMAX IP Plus NVR provides real-time insights into network status, communication, CPU usage, and overall performance. This allows for immediate assessment and management of your surveillance system, ensuring optimal operation of your NVR, cameras, and the entire security setup.

Choose the VMAX IP Plus 16-Channel, 16 PoE HD NVR with 9TB HDD for its advanced features, sophisticated surveillance capabilities, and innovative design, making it an ideal professional-grade security solution for businesses and organizations seeking extensive coverage and reliable, long-term video storage.

Digital Watchdog DW-VP169T16P Features

  • Simple and Easy to Navigate VMAX GUI for the most User-Friendly Solution on the Market
  • Complete Installation, Setup and Camera Configuration in under Three Minutes
  • Control any ONVIF Camera's Setup and Features Remotely
  • Pathfinder Auto Port Forwarding
  • Monitor and Record up to 16 2.1MP, 1080p Megapixel Cameras
  • Monitor and Record up to 9 5MP (2592x1920) Cameras
  • Local Power for up to 16 IP Cameras via Resident PoE Switch
  • Central Management Software
  • Mobile Application for iPhone, iPad, iPod, Android Smart Phones and Tablets
  • Automatic Device Discovery
  • Dual Stream Recording
  • Easy Drag and Drop Camera Management
  • Instant Backup During Playback
  • Full HD (1080P) Output for Local Live & Playback Display
  • Complete System Analysis with Real-Time System, Network and PoE Status Monitoring

Key Features

  • Capture crystal-clear surveillance footage with this 16-channel HD NVR system.
  • Enjoy remote access to your security videos anytime, anywhere via mobile app.
  • Get instant alerts with advanced motion detection, enhancing your security system.
  • Store weeks of video with the massive 9TB HDD storage capacity for peace of mind.
  • Experience superior night vision, ensuring clear recordings even in total darkness.
  • Easy setup with 16 PoE ports, simplifying installation of your IP security cameras.

What's in the box:

  • NVR
  • 1 x CD and Quick Start Guide
  • 1 x IR Remote Control
  • 1 x 48V DC Adaptor and Power Cable
  • 2 x Terminal Block and Rubber Mount
  • Digital Watchdog 5 Year Limited Warranty
