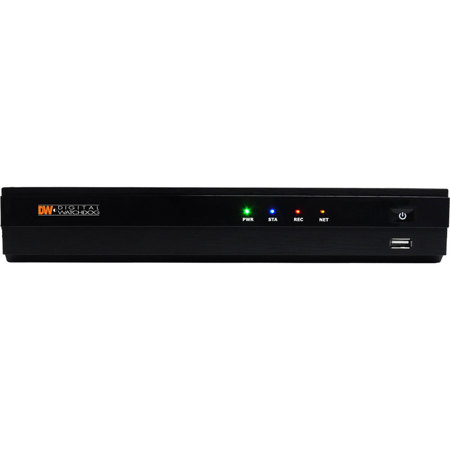

Digital Watchdog VMAX IP Plus 9 Channel, 4 PoE HD NVR with 6TB HDD

SKU: DWVP96T4P MFR: DW-VP96T4P
Earn VIP Reward Points

Key Features

  • Capture crystal-clear surveillance video with this 9-channel HD NVR, ensuring top-notch security.
  • Benefit from 6TB HDD storage for extensive video recording, perfect for continuous surveillance needs.
  • Enjoy remote access via mobile & web, keeping your property secure with real-time monitoring.
  • Get instant alerts with advanced motion detection recording, minimizing false alarms effectively.
  • This NVR's 4 PoE ports simplify IP camera setup, providing power and video via a single cable.
  • Rely on continuous, scheduled, & event-triggered recording modes for comprehensive coverage.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$64.99

2 Year

$109.00

3 Year

$169.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Digital Watchdog DW-VP96T4P Specifications

  • Operating System

    Embedded Linux

  • Channel

    9 Channel

  • No. of PoE

    4 Channel

  • Communication Protocol

    ONVIF

  • PoE Type

    100Mbps, 802.3af

  • Display Speed

    270fps

  • Screen Mode

    1, 4 & 9

  • Max. HDD Bay

    1 x SATA HDD

  • Video-In

    IP Camera (Max. 5 Megapixel)
    5MP Cameras, special firmware is required, limiting the max supported cameras to four (4) channels.

  • Video-Out: Monitor

    HDMI and VGA

  • Video Out: Resolution

    HDMI: 800x600, 1024x768, 1280x1024, 1920x1080 (Selectable)

  • Recording Speed

    270fps (CIF, D1, 720P, 1080P), 120fps (5 MP) (When using the 5MP firmware, the NVR will support total 4-Channels, regardless of the camera's resolution)

  • Recording Resolution

    Dual Stream

  • Recording Modes

    Continuous, C+M, C+S, Scheduled, Sensor & Motion Detection Recording
    Pre Alarm Recording, Emergency Recording, Quick Backup

  • Playback & Search Speed

    x1, x2, x4, x8, x16, x32

  • Playback & Search Function

    Intelli-Search by Time Bar, Calendar (Date & Time) and Event Search

  • Audio Output

    1 Channel

  • Alarm Input / Relay Output

    4 Channel / 1 Channel

  • PTZ Control

    RS-485, ONVIF

  • Transaction Verification

    TCP and USB-Serial Interface

  • LAN

    1x Gigabit Ethernet (RJ45) - Fixed IP, DHCP & DDNS

  • Remote Software

    Pivot Pro, Web Client, Mobile Client for Android & iOS SmartPhones and Tablets

  • Backup Device

    Local Backup by USB, Network Backup by CMS

  • System Recovery after Power Failure

    Auto-Reboot and Journaling File System

  • Firmware Upgrade

    FTP, USB

  • Back Up

    USB

  • Special Features

    Local PoE Switch

  • Health check

    Real-Time System, Network and PoE Status Monitoring

  • System Operation

    IR Remote Controller, USB Mouse, PTZ Control by Keyboard (Option)

  • Power Requirements

    48V DC

  • Power Consumption

    90.24W Total Power Budget, 1.88A, 15.4W per PoE Port

  • Operating Temperature and Humidity

    5-40 Degree C / 20-90% RH

  • Certification

    CE & FCC & KCC & WEEE, RoHS

  • Dimension (WxDxH)

    264 x 245 x 44 mm (10.39 x 9.65 x 1.73 inch)

  • UPC Code

    813379014642

About Digital Watchdog DW-VP96T4P

The VMAX IP Plus is an easy to use and hassle-free network recording system (NVR). This new NVR supports all ONVIF devices via network connection and a resident PoE switch, making the VMAX IP Plus a dynamic solution that can be paired with any conformant camera. With automated camera detection and configuration, the VMAX IP Plus NVR revolutionizes the set up and installation process, allowing you to go from power up to monitoring in less than three minutes. This NVR uses our familiar VMAX user interface for a smooth transition from analog to the world of IP and megapixel. The VMAX IP Plus NVR is available in 9, 12, and 16 channel configurations and up to 12TB internal storage. The VMAX IP Plus NVR is backed by Digital Watchdog's unbeatable 5 year limited warranty.

CCIP System Encryption
Camera streams are protected when a user ID and password are used with an NVR. The additional CCIP (Closed Circuit IP) encryption is activated when the VMAX IP Plus system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting VMAX IP Plus NVR.

3-Minute Installation
The entire system can be setup and configured in less than four minutes from power up. Using the user-friendly Startup Wizard, configure the NVR s main functions, locate and register all your cameras and set them to record in less than four minutes and with no need for technical background.

System Monitoring and Analysis
Monitor your complete system, including the network, communication, CPU and performance locally on the NVR for real-time analysis of your NVR, cameras and complete surveillance solution.

Digital Watchdog DW-VP96T4P Features

  • Simple and Easy to Navigate VMAX GUI for the most User-Friendly Solution on the Market
  • Complete Installation, Setup and Camera Configuration in under Three Minutes
  • Control any ONVIF Camera's Setup and Features Remotely
  • Pathfinder Auto Port Forwarding
  • Monitor and Record up to 9 2.1MP, 1080p Megapixel Cameras (4-Channels PoE Plus 5 Bonus Channels)
  • Monitor and Record up to 4 5MP (2592x1920) Cameras
  • Local Power for up to 4 IP Cameras via Resident PoE Switch
  • Central Management Software
  • Mobile Application for iPhone, iPad, iPod, Android Smart Phones and Tablets
  • Automatic Device Discovery
  • Dual Stream Recording
  • Easy Drag and Drop Camera Management
  • Instant Backup During Playback
  • Full HD (1080P) Output for Local Live & Playback Display
  • Complete System Analysis with Real-Time System, Network and PoE Status Monitoring

Key Features

  • Capture crystal-clear surveillance video with this 9-channel HD NVR, ensuring top-notch security.
  • Benefit from 6TB HDD storage for extensive video recording, perfect for continuous surveillance needs.
  • Enjoy remote access via mobile & web, keeping your property secure with real-time monitoring.
  • Get instant alerts with advanced motion detection recording, minimizing false alarms effectively.
  • This NVR's 4 PoE ports simplify IP camera setup, providing power and video via a single cable.
  • Rely on continuous, scheduled, & event-triggered recording modes for comprehensive coverage.

What's in the box:

  • NVR
  • 1 x CD and Quick Start Guide
  • 1 x IR Remote Control
  • 1 x 48V DC Adaptor and Power Cable
  • 2 x Terminal Block and Rubber Mount
  • Digital Watchdog 5 Year Limited Warranty
